ABB 5SXE05-0151 Ruggedized IGCT Thyristor Module for Harsh Environments

Product Overview

ABB 5SXE05-0151 Ruggedized IGCT Thyristor Module for Harsh Environments: Industrial Resilience and High-Power Reliability

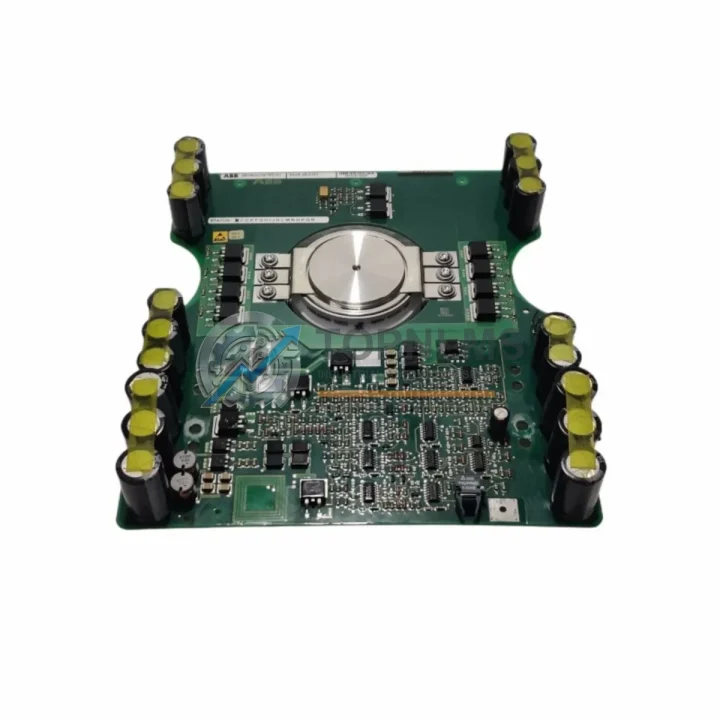

The ABB 5SXE05-0151 (also referenced as 5SHX08F4502 and 3BHB003387R0101) is an original Integrated Gate-Commutated Thyristor (IGCT) power semiconductor module manufactured by ABB Semiconductors in Switzerland. Designed for deployment in medium-voltage variable speed drives, high-power converters, and industrial power electronics systems, this IGCT module is engineered to sustain reliable switching performance under the most demanding electrical and environmental conditions found in heavy industry — including high ambient temperatures, elevated humidity, mechanical vibration, electromagnetic interference, and continuous duty cycles that would degrade lesser power semiconductor devices.

In critical industrial infrastructure where unplanned downtime translates directly into production loss, safety risk, and costly emergency maintenance, the availability of a verified original ABB IGCT module as a certified spare part is a strategic asset. The 5SXE05-0151 is the switching heart of ABB’s ACS6000 and related medium-voltage drive platforms, and its failure — without an on-shelf replacement — can halt entire production lines in oil and gas compression, mining hoists, steel rolling mills, and large-scale water treatment pump stations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 5SXE05-0151 IGCT module does not operate in isolation. Within the ABB ACS6000 medium-voltage drive cabinet, it functions as part of a precisely coordinated power stack that depends on the integrity of multiple surrounding components. When performing IGCT replacement or scheduled power stack maintenance, a disciplined engineer will simultaneously audit the full protection and control architecture to prevent recurrence of the fault condition that necessitated the replacement.

The ABB IGCT gate unit (5SXE gate driver board) is the first component to inspect. The gate driver delivers the precise current pulse required to commutate the IGCT, and a degraded gate driver can cause incomplete turn-off, leading to shoot-through faults that destroy the IGCT prematurely. Gate driver boards should be replaced on a matched basis with the IGCT module whenever the drive has experienced a fault-induced shutdown.

The ABB snubber capacitor and snubber resistor assembly associated with each IGCT position must be checked for capacitance drift and resistor degradation. Snubber circuit failure allows excessive dV/dt transients across the IGCT during switching, which is a primary cause of IGCT overvoltage failure in high-cycle applications such as mining hoist drives and rolling mill main drives. Alongside the snubber, inspect the DC link capacitor bank within the ACS6000 power module — capacitor aging increases DC bus ripple voltage, which directly stresses the IGCT’s off-state blocking capability.

The ACS6000 water cooling circuit components — including the deionized water pump, heat exchanger, and coolant conductivity sensor — must be verified during any IGCT replacement. IGCT junction temperature is entirely dependent on coolant flow rate and inlet temperature; a partially blocked cooling circuit or degraded heat exchanger will cause the replacement IGCT to fail within weeks under full load. The coolant conductivity monitoring module should be calibrated annually, as elevated coolant conductivity causes electrochemical corrosion of the IGCT’s copper base plate and cooling interface.

At the control level, the ABB ACS6000 main control unit (MCU) board and its associated fiber optic interface boards should be tested for signal integrity. The ACS6000 uses fiber optic links between the control unit and the gate driver boards to provide galvanic isolation in the high-voltage environment. Degraded fiber optic connectors or aging transceivers introduce timing jitter in gate pulses, which can cause asymmetric current sharing in multi-IGCT configurations and accelerate device aging. Finally, verify the ABB ACS6000 I/O interface module and protection relay settings — incorrect overcurrent or dV/dt protection thresholds are a documented cause of nuisance IGCT trips in facilities with high harmonic distortion on the medium-voltage supply bus.

Stocking the 5SXE05-0151 IGCT together with its matched gate driver, snubber assembly, and fiber optic interface boards constitutes a complete emergency repair kit for ACS6000-based drive systems — the most cost-effective approach to protecting continuous production assets in high-criticality industrial environments.

Application in Critical Infrastructure

The ABB 5SXE05-0151 IGCT module is deployed across the most demanding sectors of global industrial infrastructure, where power semiconductor reliability is directly linked to operational safety and production continuity.

In oil and gas facilities, ACS6000 drives equipped with 5SXE-series IGCT modules control large compressor trains and pipeline pump stations operating continuously at partial or full load for months between scheduled shutdowns. An unplanned IGCT failure in this environment can trigger emergency flaring, process upset, and regulatory reporting obligations — making on-shelf spare availability a compliance and safety requirement, not merely a maintenance preference.

In mining operations, medium-voltage drives using IGCT technology power winding engines, conveyor drives, and grinding mill motors in environments characterized by high dust loading, mechanical vibration from blasting operations, and wide ambient temperature swings between surface and underground installations. The 5SXE05-0151’s robust gate-commutated topology provides superior fault current handling compared to IGBT-based alternatives, making it the preferred technology for high-inertia load applications where regenerative braking energy must be managed safely.

In steel and metals processing, rolling mill main drives and coiler/uncoiler drives demand precise torque control at high power levels with rapid acceleration and deceleration cycles. The IGCT’s low conduction losses and high current density make it the optimal switching device for these applications, and the 5SXE05-0151 is a direct replacement for aging IGCT positions in legacy ACS6000 installations that continue to serve as the backbone of hot and cold rolling mill electrical systems worldwide.

In power generation and grid infrastructure, ABB PCS6000 STATCOM and power conversion systems use the same 5SHX08F4502 IGCT class for reactive power compensation and grid stabilization at transmission voltage levels. Utilities operating these systems require certified original spare IGCTs to maintain N-1 redundancy and comply with grid code reliability obligations.

Security & Quality FAQ

Q1: How is the authenticity of the 5SXE05-0151 / 3BHB003387R0101 verified before shipment?
Each unit is inspected for original ABB Semiconductors markings, date codes, and packaging integrity. Electrical verification includes gate threshold testing and leakage current measurement. Units sourced from non-traceable channels are not stocked. A certificate of conformity and inspection record are available upon request for quality-critical procurement processes in regulated industries.

Q2: What does the 12-month warranty cover for a high-power IGCT module?
The 12-month warranty covers manufacturing defects, gate structure integrity, and blocking voltage capability under normal operating conditions as specified by ABB. It does not cover damage resulting from incorrect installation, coolant contamination, overvoltage events exceeding rated VDRM, or operation outside the drive manufacturer’s specified thermal envelope. Warranty claims are processed within 5 business days of fault confirmation via [email protected].

Q3: Is the 5SXE05-0151 a direct drop-in replacement for the 5SHX08F4502 in an existing ACS6000 drive?
Yes. The 5SXE05-0151 and 5SHX08F4502 are cross-reference designations for the same physical IGCT device within ABB’s internal part numbering system, with 3BHB003387R0101 being the ABB drive system assembly reference. All three numbers refer to the same replaceable unit and are interchangeable within the ACS6000 power stack. Always confirm the drive’s firmware version and gate driver compatibility with your ABB service documentation before installation.

Q4: Can TOPNLMS support long-term supply of IGCT modules for fleet maintenance programs?
Yes. For customers operating multiple ACS6000 drives or managing a fleet maintenance program across multiple sites, TOPNLMS can support scheduled procurement of 5SXE05-0151 IGCT modules with lead time planning, batch inspection, and consolidated shipping. Contact [email protected] with your fleet size and annual consumption estimate to discuss a supply agreement. Long-term supply continuity for legacy ABB power semiconductor types is a core competency of our industrial spare parts operation.
