ABB 5STP1842H0001 StakPak Ruggedized Thyristor SCR Module

Product Overview

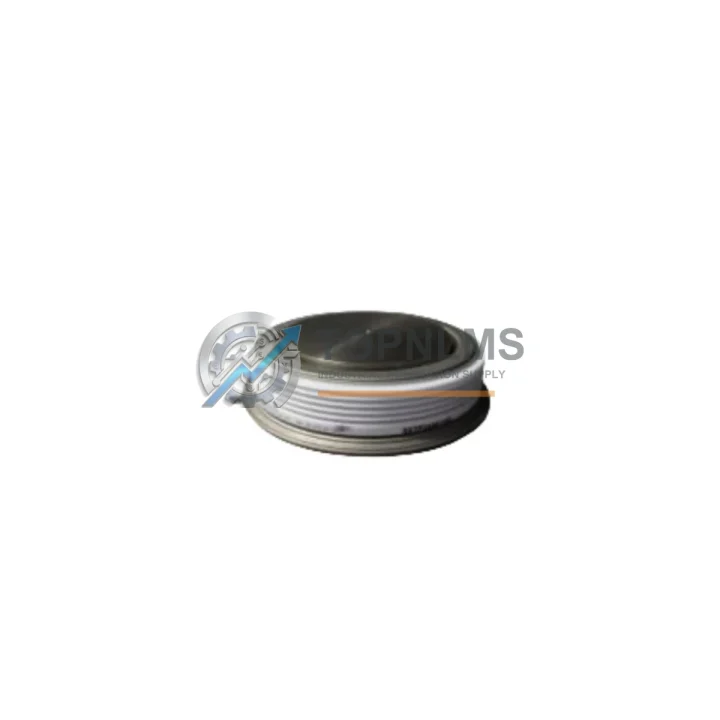

ABB 5STP1842H0001 StakPak Ruggedized Thyristor SCR Module for Harsh Environments

The ABB 5STP1842H0001 is a high-power Press-Pack Thyristor (SCR) from ABB’s industry-leading StakPak series, rated at 4200V blocking voltage and 1842A RMS on-state current. Engineered for continuous operation in the most demanding industrial environments — including high-temperature furnace control rooms, high-humidity coastal processing plants, dust-laden mining facilities, and high-vibration heavy machinery installations — this module delivers the electrical robustness and thermal stability that mission-critical power conversion systems require.

The Press-Pack construction eliminates bond-wire fatigue failures common in conventional hockey-puck thyristors, making the 5STP1842H0001 the preferred choice for applications where unplanned downtime carries severe operational and safety consequences. Its hermetically sealed ceramic-metal housing provides outstanding resistance to moisture ingress, corrosive atmospheres, and particulate contamination, ensuring long-term reliability in oil refineries, steel mills, cement plants, and offshore platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

In high-power industrial drive systems, the ABB 5STP1842H0001 thyristor rarely operates in isolation. It is typically integrated into a complete power conversion stack alongside complementary ABB StakPak components such as the 5STP1245H0001 and 5STP0845H0001 thyristors for multi-pulse rectifier bridges, and paired with ABB’s 5SNA1200G450300 IGBT modules where hybrid converter topologies are employed. Gate drive circuits — including ABB’s dedicated thyristor gate units — provide precise firing angle control essential for stable torque regulation in large synchronous motor drives.

Thermal management is equally critical. The 5STP1842H0001 is designed for double-sided clamped heatsink assemblies, and its performance is optimized when used with properly torqued copper heatsink plates and thermally conductive interface materials. In cycloconverter and HVDC applications, snubber circuits — comprising high-voltage film capacitors and damping resistors — are mounted in close proximity to suppress dV/dt transients and protect the thyristor’s gate-cathode junction from spurious triggering caused by electromagnetic interference from nearby variable frequency drives (VFDs), transformer switching, or bus bar transients.

For complete drive cabinet protection, the 5STP1842H0001 is commonly deployed alongside ABB ACS880 and ACS6000 series drive components, ABB REF615 protection relays for overcurrent and earth-fault detection, and ABB SACE Emax2 air circuit breakers for upstream fault isolation. In DCS-integrated environments, the thyristor stack interfaces with ABB 800xA distributed control system I/O modules — such as the AI810 analog input module and DO810 digital output module — enabling closed-loop firing angle feedback and real-time thermal monitoring. Communication between the drive controller and the plant DCS is typically handled via PROFIBUS DP or Modbus RTU, with ABB CI854A or CI840A communication interface modules bridging the protocol layers.

In safety-critical installations, the thyristor stack is supervised by ABB’s safety relay modules and emergency stop circuits compliant with IEC 62061 and ISO 13849, ensuring that a gate inhibit signal can be asserted within milliseconds of a fault condition — protecting both the power semiconductor and the connected load from catastrophic failure.

Application in Critical Infrastructure

The ABB 5STP1842H0001 is a proven workhorse across the most demanding sectors of critical industrial infrastructure:

Oil & Gas: In offshore drilling platforms and onshore LNG terminals, large thyristor rectifier stacks built around the 5STP1842H0001 power the DC bus of variable-speed mud pump drives and compressor motor soft-starters. The hermetically sealed Press-Pack construction withstands salt-laden humid air and the mechanical vibration of reciprocating compressors without degradation in blocking voltage capability.

Mining & Mineral Processing: Ball mill drives, conveyor belt drives, and hoisting winders in underground and open-pit mines demand thyristors capable of surviving coal dust, silica particulate, and the severe mechanical shock of ore crushing operations. The 5STP1842H0001’s robust Press-Pack assembly and wide operating temperature range make it the standard replacement choice for aging thyristor stacks in legacy ABB and third-party drive systems.

Steel & Metallurgy: Electric arc furnace (EAF) power controllers and rolling mill DC drives represent some of the harshest electrical environments in industry — characterized by extreme current surges, rapid load cycling, and intense electromagnetic interference from arc furnace electrodes. The 5STP1842H0001’s high surge current capability and low on-state voltage drop make it ideally suited for these cycloconverter and 12-pulse rectifier applications.

Power Generation & Transmission: In static VAR compensators (SVC) and HVDC converter stations, thyristor valves constructed from series-connected StakPak devices like the 5STP1842H0001 regulate reactive power and stabilize grid voltage across transmission networks. The device’s tight parameter matching within the StakPak family simplifies valve design and ensures uniform voltage sharing across series-connected thyristors.

Water & Wastewater Treatment: Large pump station drives and aeration blower controllers in municipal water treatment facilities rely on thyristor-based soft-starters and speed controllers to reduce mechanical stress on pump impellers and extend motor bearing life. The 5STP1842H0001 provides the current capacity required for multi-megawatt pump motor applications while maintaining reliable operation in high-humidity, chemically aggressive environments.
