ABB 5SNG015045P0301 Ruggedized Press-Pack IGBT for Harsh Environments

Product Overview

ABB 5SNG015045P0301 Ruggedized Press-Pack IGBT for Harsh Environments

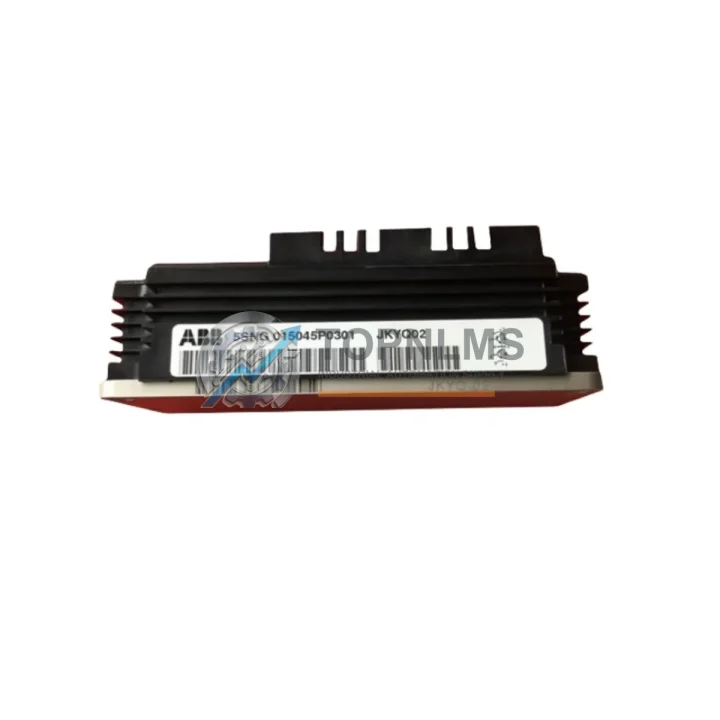

The ABB 5SNG015045P0301 is a high-performance StakPak Press-Pack IGBT Single Switch Module rated at 4500V / 1500A, engineered by ABB Semiconductors (Switzerland) for continuous, mission-critical operation in the most demanding industrial power conversion environments. Designed with ABB’s proprietary press-pack packaging technology, this module eliminates bond-wire fatigue failures and delivers exceptional thermal cycling endurance — making it the preferred choice for engineers specifying power semiconductors in high-voltage drive systems, HVDC converters, traction inverters, and utility-scale energy infrastructure.

Unlike conventional wire-bonded IGBT modules, the StakPak press-pack construction provides double-sided cooling capability, dramatically reducing junction-to-case thermal resistance and enabling sustained high-current switching even in ambient temperatures exceeding 50°C. The 5SNG015045P0301 is built to withstand vibration, humidity, and electromagnetic interference levels that would degrade standard modules — a critical advantage in offshore platforms, mining hoists, steel mill drives, and railway traction substations.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 5SNG015045P0301 does not operate in isolation — it is a cornerstone component within a broader power conversion and protection architecture. In high-voltage drive cabinets and converter stations, this IGBT module works in close coordination with ABB gate driver units (such as the AGDR series) that provide precise switching control, short-circuit protection, and desaturation detection to safeguard the module under fault conditions. Alongside the gate driver, ABB DC link capacitor banks and ABB snubber circuits are typically deployed to suppress voltage transients and limit dV/dt stress on the IGBT junctions during high-frequency switching cycles.

In multi-level converter topologies — common in HVDC and large industrial drives — the 5SNG015045P0301 is often stacked in series with additional ABB StakPak IGBT modules such as the 5SNA1500E330305 or 5SNE0800M170100, with voltage-sharing resistors and clamping circuits ensuring balanced voltage distribution across the stack. The thermal management system, typically comprising ABB water-cooled heatsinks or forced-air cooling assemblies, is engineered to match the double-sided cooling geometry of the StakPak package.

At the system level, ABB ACS880 industrial drives and ABB PCS6000 converters are representative platforms that integrate StakPak IGBT technology for high-power motor control and grid-tied energy conversion. Protection relays — including ABB REF615 feeder protection relays — monitor upstream grid conditions and issue trip signals to the converter control system when abnormal voltage or current events are detected, preventing cascading failures that could damage the IGBT stack. ABB surge arresters and ABB line reactors further condition the incoming supply, reducing harmonic distortion and protecting the module from line-side transients.

For communication and diagnostics, ABB DDCS fiber-optic communication boards and PROFIBUS / PROFINET interface modules enable real-time monitoring of converter status, gate driver health, and thermal conditions — allowing maintenance teams to detect degradation trends before they result in unplanned downtime. This integrated ecosystem of protection, control, and communication components ensures that the 5SNG015045P0301 delivers its rated performance reliably across the full service life of the installation.

Application in Critical Infrastructure

The ABB 5SNG015045P0301 StakPak IGBT is deployed across the most demanding sectors of global critical infrastructure, where power conversion reliability is non-negotiable and unplanned downtime carries severe operational and financial consequences.

In oil and gas facilities — including offshore platforms, LNG compression trains, and subsea power distribution systems — this module powers variable-speed drives controlling high-voltage pumps, compressors, and gas injection systems. The press-pack construction’s resistance to vibration and its ability to operate in salt-laden, high-humidity atmospheres make it particularly well-suited to offshore environments where conventional modules would require frequent replacement.

In mining and mineral processing, the 5SNG015045P0301 drives high-power hoist motors, conveyor systems, and grinding mill drives where continuous operation under heavy load cycling is essential. The module’s superior thermal cycling endurance — a direct result of the press-pack bond-wire-free design — translates to significantly extended mean time between failures (MTBF) compared to wire-bonded alternatives, reducing the frequency and cost of planned maintenance shutdowns.

In electric power transmission and HVDC applications, StakPak IGBTs form the switching core of voltage-source converter (VSC) stations that interconnect asynchronous grids, transmit bulk power over long distances, and provide reactive power compensation. The 4500V blocking voltage of the 5SNG015045P0301 makes it suitable for medium-voltage converter stages in both onshore and offshore HVDC installations.

In steel and metallurgy plants, the module controls rolling mill drives, arc furnace power supplies, and ladle furnace transformers — environments characterized by extreme electromagnetic interference, heavy vibration, and wide ambient temperature swings. The StakPak’s robust construction and ABB’s proven gate driver ecosystem ensure stable switching performance even in these electromagnetically hostile conditions.

In water and wastewater treatment infrastructure, high-voltage pump drives incorporating StakPak IGBTs deliver energy-efficient flow control across large municipal and industrial water systems, where continuous 24/7 operation and minimal maintenance access make component reliability paramount.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 5SNG015045P0301?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and any deviation from the published ABB datasheet specifications. Each unit undergoes pre-shipment functional testing and visual inspection. In the event of a warranty claim, TOPNLMS provides replacement or full refund support — contact [email protected] with your order reference and failure description.

Q2: How is each unit tested and verified before shipment?
Every ABB 5SNG015045P0301 unit in our inventory is inspected for physical integrity, verified against ABB part number markings, and functionally tested for gate threshold voltage, leakage current, and collector-emitter blocking voltage prior to dispatch. Units that do not meet ABB’s published electrical parameters are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the 5SNG015045P0301 compatible with existing ABB StakPak converter platforms?
Yes. The 5SNG015045P0301 is a direct form-fit-function replacement within the ABB StakPak product family and is compatible with ABB ACS, PCS, and PEC series converter platforms that specify 4500V / 1500A single-switch press-pack IGBTs. For system-specific compatibility confirmation — particularly for series-stacked configurations — our technical team can review your converter documentation and advise on clamping circuit and gate driver compatibility before you commit to a purchase.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of ABB StakPak IGBT modules to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders, scheduled delivery programs, and consignment stock arrangements for customers with recurring demand. For long-term supply agreements or volume pricing, contact our procurement team directly at [email protected] or +86 18359293191.
