ABB 5SHY5055L0002 3BHB026114R0001 Original Industrial Spare 5SHY Compatible

Product Overview

ABB 5SHY5055L0002 3BHB026114R0001 Original Industrial Spare 5SHY Compatible: System Stability & Industrial Spare Maintenance Value

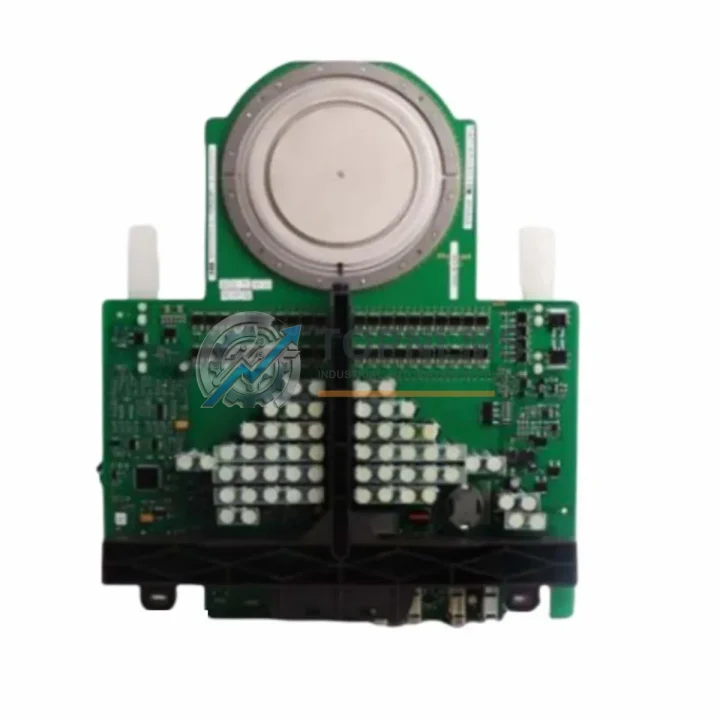

The ABB 5SHY5055L0002 (part number 3BHB026114R0001) is a high-power Integrated Gate-Commutated Thyristor (IGCT) engineered for medium-voltage drive systems and large-scale industrial power conversion applications. As a core switching device in ABB’s ACS6000, ACS5000, and PCS6000 drive platforms, this IGCT is a mission-critical component whose failure directly causes unplanned downtime in steel mills, cement plants, oil & gas compressor stations, marine propulsion systems, and large pump/fan installations.

Sourced directly from ABB’s original manufacturing chain in Switzerland, the 5SHY5055L0002 carries full OEM traceability. Every unit dispatched from TOPNLMS undergoes pre-shipment electrical verification — including gate trigger response, forward blocking voltage, and thermal resistance checks — before being packaged in anti-static, shock-protected enclosures for safe international transit.

For maintenance engineers managing aging medium-voltage drive cabinets, having a verified spare of the 5SHY5055L0002 on the shelf is not optional — it is the single most effective insurance policy against a multi-day production halt. Lead times for this component from standard distribution channels can stretch to 8–20 weeks; a pre-positioned spare eliminates that risk entirely.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled maintenance window for a medium-voltage drive cabinet housing the 5SHY5055L0002 should never be limited to the IGCT alone. The press-pack stack assembly is a tightly integrated system where the condition of adjacent components directly determines the IGCT’s service life and switching reliability.

Begin every inspection by auditing the deionized water cooling circuit — check conductivity levels, flow rate, and inspect hose fittings and heat sink surfaces for mineral deposits or micro-leaks. A degraded cooling circuit is the leading cause of premature IGCT thermal stress. Simultaneously, verify the clamping force on the press-pack stack using a calibrated torque wrench; incorrect clamping pressure causes uneven current distribution and accelerates device aging.

The ABB 5SHY Gate Drive Unit (GDU) paired with the 5SHY5055L0002 should be inspected for capacitor aging and gate pulse integrity. GDU capacitors degrade over 5–8 years of operation and can produce erratic gate signals that stress the IGCT even when the semiconductor itself is healthy. Stocking a spare GDU alongside the IGCT is strongly recommended for any facility running continuous-process operations.

Within the same drive cabinet, the ABB AGDR-81C or AGDR-71C gate driver boards govern the firing sequence of the IGCT stack. These boards should be inspected for solder joint integrity and firmware version compliance during any planned outage. Outdated firmware can introduce timing asymmetries that reduce switching efficiency and increase switching losses in the 5SHY5055L0002.

The DC link capacitor bank in ACS6000 and ACS5000 drives is another component that maintenance teams should evaluate in parallel. Capacitor ESR (Equivalent Series Resistance) increases with age, raising ripple current through the IGCT and shortening its operational life. Capacitor health testing during the same maintenance window avoids a second unplanned outage weeks later.

For the control and monitoring layer, inspect the ABB RDCU-02C or RDCU-12C drive control units and their associated fiber-optic communication links to the power stage. Fiber-optic cables in high-vibration environments develop micro-bends that increase signal attenuation; degraded optical links can cause nuisance trips that are often misdiagnosed as IGCT failures. Replacing suspect fiber links during a planned outage is low-cost insurance.

The ABB IOEC I/O extension modules connected to the drive’s control system should be checked for loose terminal connections and firmware alignment. In multi-drive installations, a single IOEC fault can cascade into a system-wide interlock trip. Similarly, the ABB NPBA-12 or NMBP-01 fieldbus adapter modules that bridge the drive to plant-level PROFIBUS or Modbus networks should be verified for communication integrity and connector seating.

Finally, review the main circuit breaker and input fusing upstream of the drive. Fuse elements in medium-voltage circuits age under repetitive fault current stress; a fuse that has cleared one overcurrent event may have reduced breaking capacity for the next. Replacing time-expired fuses and verifying breaker contact resistance during the same outage window completes a comprehensive, single-visit maintenance cycle that maximizes the return on the 5SHY5055L0002 replacement investment.

Strategic Replacement Solutions

The 5SHY5055L0002 is a direct OEM replacement for aging or failed IGCT devices in ABB medium-voltage drive stacks. Unlike third-party alternatives that may carry different gate charge characteristics or slightly different thermal resistance profiles, the original ABB 5SHY5055L0002 installs without any parameter re-tuning in the drive’s gate control firmware — a critical advantage in facilities where drive commissioning expertise is limited or where re-commissioning would require a licensed ABB service engineer.

For plants operating legacy ACS6000 or PCS6000 systems that are no longer under ABB service contracts, maintaining a local spare of the 5SHY5055L0002 is the most cost-effective strategy for extending system life by 5–10 years beyond the original design horizon. The alternative — a full drive replacement — typically costs 10–30× more and requires a 3–6 month procurement and installation cycle that most production facilities cannot absorb.

When replacing a failed IGCT, always replace the complete press-pack stack as a matched set if the drive design uses series-connected devices. Mismatched devices with different forward voltage drops will share current unequally, causing the lower-voltage device to carry disproportionate current and fail prematurely. TOPNLMS can advise on matched-set procurement for multi-device stacks upon request.

Post-replacement commissioning should include a full gate drive self-test sequence, a no-load run at reduced voltage, and a graduated load ramp to verify thermal performance before returning the drive to full production duty. Document the replacement date, clamping torque values, and cooling circuit conductivity readings for the maintenance log — this data is invaluable for predicting the next service interval.

Support FAQ

Q1: What is the expected service life of the ABB 5SHY5055L0002, and when should I plan a proactive replacement?
Under normal operating conditions — correct clamping force, clean deionized cooling water, and stable gate drive signals — the 5SHY5055L0002 typically achieves 10–15 years of service life. Proactive replacement is recommended when the device has accumulated significant switching cycles in high-duty-cycle applications, when the cooling circuit shows signs of contamination, or when the drive’s diagnostic system begins logging increased switching losses or gate anomalies. Pre-positioning a spare before the device reaches end-of-life eliminates the risk of an unplanned outage during the replacement procurement window.

Q2: How does TOPNLMS verify authenticity and electrical integrity before shipment?
Every 5SHY5055L0002 unit is inspected for OEM labeling, date code, and physical condition upon receipt. Prior to dispatch, each unit undergoes electrical verification including gate trigger response testing, forward blocking voltage confirmation, and thermal resistance measurement. Units that do not meet ABB’s published datasheet parameters are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q3: Is the 5SHY5055L0002 compatible with my existing ABB ACS6000 drive without firmware changes?
Yes. The 5SHY5055L0002 is the OEM-specified device for ACS6000 and related ABB medium-voltage drive platforms. It is a drop-in replacement that does not require gate drive parameter changes, firmware updates, or re-commissioning of the control system, provided the replacement is performed following ABB’s press-pack stack assembly procedure with correct clamping torque. If your drive uses a different IGCT variant in the same 5SHY family, contact TOPNLMS to confirm cross-compatibility before ordering.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and electrical parameter non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, improper clamping force, cooling circuit contamination, or operation outside the device’s rated parameters. To initiate a warranty claim, contact TOPNLMS with the order number, a description of the failure mode, and available diagnostic data from the drive system. TOPNLMS will arrange return shipping and provide a replacement or refund within the warranty resolution timeline.
