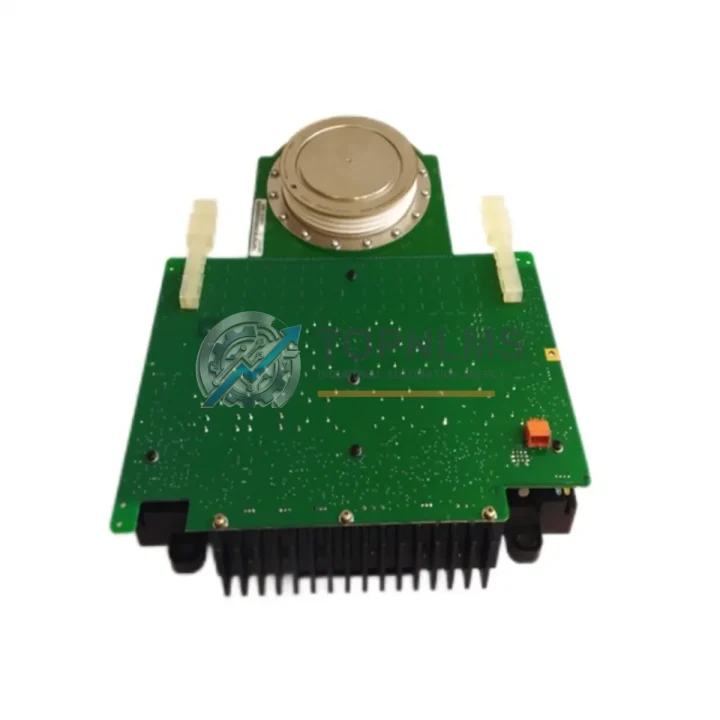

ABB 5SHY3545L0009 Ruggedized IGCT Power Module 4500V

Product Overview

ABB 5SHY3545L0009 Ruggedized IGCT Power Module: Industrial Resilience for Harsh Environments

The ABB 5SHY3545L0009 / 3BHB013085R0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) power module engineered for the most demanding industrial power conversion applications. Rated at 4,500 V in a robust press-pack housing, this module is a core switching element in ABB’s medium-voltage drive and power electronics platforms, including the ACS6000, ACS5000, and PCS6000 series. Its press-pack construction ensures superior thermal cycling endurance, low inductance, and direct heat-sink mounting — characteristics that translate directly into long-term reliability on continuous production lines where unplanned downtime is not an option.

Designed to operate in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 5SHY3545L0009 maintains stable switching performance where conventional power semiconductors fail prematurely. Whether deployed in a steel mill’s main drive cabinet, a mine hoist control system, or an offshore wind converter station, this IGCT module delivers the switching precision and thermal robustness that critical infrastructure demands.

Rugged Specifications Table

Comprehensive Protection Solutions

In medium-voltage drive systems, the IGCT switching module does not operate in isolation — it is the heart of a tightly integrated power conversion architecture. The ABB 5SHY3545L0009 works in concert with the ABB 5SHX0645L0002 gate drive unit (GDU), which provides the precise gate current pulses required for reliable turn-off commutation. Alongside the GDU, the ABB 3BHB003387R0001 snubber capacitor assembly suppresses voltage transients at the IGCT terminals, protecting the device during high-frequency switching cycles in regenerative braking or active front-end configurations.

On the control side, the drive’s ABB RDCU-02C control unit and associated AINT-02C inverter control board coordinate the firing sequences of multiple IGCT modules in a multi-level inverter topology. Reliable communication between these boards and the IGCT gate drivers is maintained through the ABB DDCS fiber-optic communication link, which provides galvanic isolation and immunity to the intense electromagnetic interference generated by high-power switching events. The ABB APBU-44C branching unit further distributes fiber-optic signals across parallel inverter modules in high-power configurations.

Power quality and system protection are reinforced by the ABB REF615 feeder protection relay and coordinated overcurrent protection schemes that safeguard the upstream transformer and switchgear from fault currents that could otherwise propagate through the drive system. On the DC bus, ABB SACE Emax2 air circuit breakers provide fast fault isolation, while ABB UFES ultra-fast earthing switches protect personnel and equipment in the event of an arc flash event inside the drive cabinet. Together, these components form a layered protection architecture that keeps the 5SHY3545L0009 operating within its safe operating area throughout its service life.

For I/O and process interfacing, the drive system typically integrates with ABB AC500 PLC I/O modules — such as the DC532 digital I/O module or AI531 analog input module — which relay process feedback signals to the drive’s control layer. This closed-loop architecture enables precise speed and torque regulation in applications ranging from pump and fan control to high-dynamic servo positioning in rolling mills.

Application in Critical Infrastructure

The ABB 5SHY3545L0009 IGCT module is a proven component in some of the world’s most demanding industrial environments:

Oil & Gas: In offshore platform topside drives and subsea pump variable-speed drive systems, the 5SHY3545L0009 enables precise flow control while withstanding salt-laden air, wide temperature swings, and the vibration loads imposed by marine operations. Its press-pack construction eliminates bond-wire fatigue — a common failure mode in wire-bonded IGBT modules subjected to thermal cycling in outdoor or semi-outdoor installations.

Mining & Mineral Processing: Mine hoist drives, conveyor drives, and SAG mill drives demand continuous, high-torque operation with frequent starts and stops. The 5SHY3545L0009’s superior thermal cycling capability and low on-state losses make it the preferred switching device in ABB’s ACS6000 drives deployed in these applications, where a single unplanned shutdown can cost tens of thousands of dollars per hour.

Power Generation & Transmission: In static frequency converters (SFCs) used for gas turbine starting, and in STATCOM and active filter installations for grid voltage support, the 5SHY3545L0009 provides the high blocking voltage and fast switching capability required for megawatt-scale power conversion. Its integration into ABB’s PCS6000 converter platform supports grid-connected renewable energy installations including large-scale wind and hydro projects.

Metals & Steel: Rolling mill main drives and ladle furnace electrode regulators operate in environments saturated with electromagnetic interference from arc furnaces and induction heating systems. The IGCT’s inherent low-inductance switching and the fiber-optic gate drive interface ensure that control signals remain uncorrupted even in the presence of severe EMI, maintaining precise speed and tension control across the rolling line.

Water & Wastewater: Large pumping stations and desalination plant drives benefit from the 5SHY3545L0009’s long service life and low maintenance requirements. In applications where access for maintenance is restricted and continuous operation is mandated by public utility obligations, the reliability of press-pack IGCT technology provides a decisive advantage over alternative switching devices.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the ABB 5SHY3545L0009 datasheet. If a module fails within the warranty period, TOPNLMS will arrange replacement or full refund after technical verification. Claims are initiated by contacting [email protected] with the order reference and a description of the failure mode.

Q2: How is each unit tested before shipment?
Every ABB 5SHY3545L0009 unit undergoes pre-shipment functional verification including visual inspection for press-pack contact surface integrity, gate-cathode impedance measurement, and blocking voltage leakage current check. Refurbished units additionally undergo a full power-on functional test on a dedicated IGCT test bench. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with my existing ABB ACS6000 or PCS6000 drive system?
Yes. The 5SHY3545L0009 (cross-reference 3BHB013085R0001) is a direct fit for ABB ACS6000, ACS5000, and PCS6000 platforms that specify this part number. Compatibility with specific drive serial numbers and software versions should be confirmed against the drive’s spare parts list or by contacting our technical team. We can cross-reference your drive’s BOM to confirm fitment before order placement.

Q4: Can TOPNLMS support long-term supply continuity for this obsolescence-risk component?
Absolutely. The ABB 5SHY IGCT series is a mature product line with limited new production. TOPNLMS maintains strategic stock of the 5SHY3545L0009 and related 5SHY-series devices to support customers through planned maintenance cycles and emergency breakdowns. We offer blanket order agreements and reserved stock programs for customers with multi-unit drive fleets, ensuring supply continuity for the operational life of your installation.
