ABB 5SHX0845F0001 Replacement for 5SHX/5SXE Series

Product Overview

ABB 5SHX0845F0001 Replacement for 5SHX/5SXE Series: Smooth Transition & Legacy System Compatibility

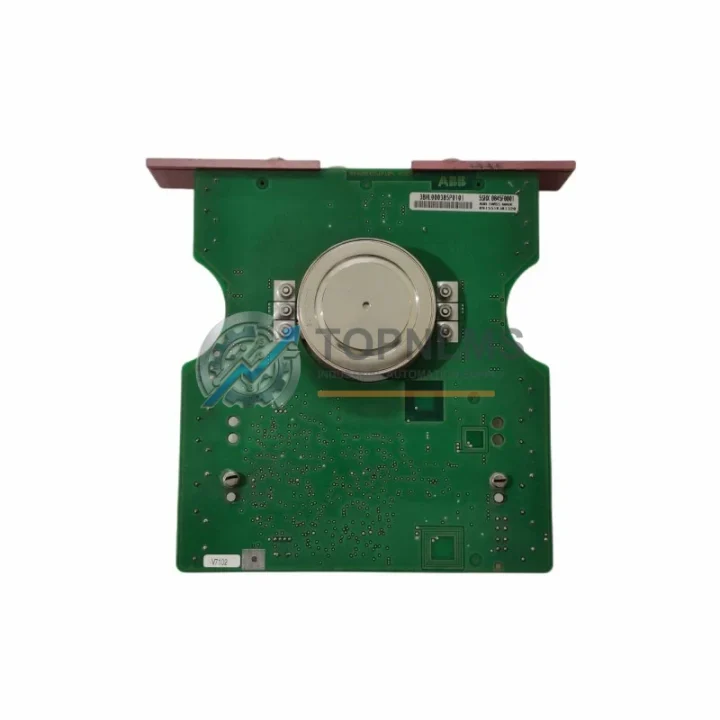

The ABB 5SHX0845F0001 (cross-reference: 3BHL000385P0101, 3BHB003387R0101, 5SXE05-0151) is a high-power Press-Pack IGBT module engineered for demanding industrial power conversion and drive applications. As legacy ABB drive systems age and original components approach end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement modules that maintain full electrical and mechanical compatibility with existing installations — without triggering costly system redesigns or extended production shutdowns.

TOPNLMS specializes in sourcing, testing, and supplying ABB 5SHX-series and 5SXE-series Press-Pack IGBT modules for retrofit, emergency replacement, and planned upgrade projects across power electronics, medium-voltage drives, traction systems, and industrial converter platforms. Every unit is inspected and function-tested prior to dispatch, backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Press-Pack IGBT replacement is rarely a single-component exercise. When migrating from a failed or end-of-life 5SXE05-0151 or 3BHB003387R0101 to the 5SHX0845F0001, field engineers typically need to evaluate the surrounding power stack and control architecture to ensure the entire converter cell operates reliably after the swap.

In most ABB medium-voltage drive and converter installations — including the ACS6000, ACS5000, and PCS6000 platforms — the IGBT module sits within a clamped stack assembly alongside matched snubber capacitors and heatsink plates. When replacing the 5SHX0845F0001, it is best practice to inspect the adjacent ABB Press-Pack diode modules (such as the 5SDD series) for signs of degradation, as these share the same thermal and mechanical stack. Replacing only the IGBT while leaving aged diodes in place can lead to premature re-failure.

The gate drive interface is equally critical. The ABB AGDR-71C and AGDR-76C gate driver boards communicate with the IGBT via fiber-optic links, and their threshold settings must be verified against the new module’s gate charge and threshold voltage specifications. In some retrofit scenarios, the AGDU-11C gate drive power supply unit may also require inspection if the original failure was caused by a gate drive fault rather than the IGBT itself.

On the control side, the converter’s protection and sequencing logic — typically managed by an ABB RDCU or RDNA control unit — should be reviewed to confirm that overcurrent and desaturation trip thresholds remain appropriate for the replacement module’s characteristics. If the drive system uses an ABB AINT or AINP interface board for I/O and fieldbus communication (PROFIBUS, Modbus, or DDCS), these boards are unaffected by the IGBT swap and require no reconfiguration.

For installations where the converter feeds into a transformer or motor load via a dV/dt filter or sine filter assembly, the filter components should be checked for capacitor aging, particularly if the original IGBT failure was caused by a shoot-through event. Similarly, the DC link capacitor bank within the converter cabinet should be inspected for capacitance drift before recommissioning.

TOPNLMS can assist procurement teams in sourcing matched replacement components across the full ABB 5SHX, 5SXE, 5SDD, and AGDR product families, enabling a coordinated, single-shipment solution that minimizes the number of maintenance windows required to restore full converter operation.

Retrofit Guidance FAQ

Q: Is the 5SHX0845F0001 a direct drop-in replacement for the 5SXE05-0151?
A: In most ABB converter stack configurations, yes. Both are Press-Pack format modules with compatible mechanical dimensions and gate drive interfaces. However, always verify the clamping torque specification and gate threshold voltage against your specific converter’s commissioning documentation before energizing.

Q: Do I need to modify the wiring or fiber-optic gate connections?
A: No. The 5SHX0845F0001 uses the same fiber-optic gate signal interface as the 5SXE series. Existing AGDR gate driver cabling can be reused without modification. Verify fiber connector cleanliness and signal integrity before recommissioning.

Q: Will the replacement module work with my existing ABB AGDR gate driver board?
A: Yes, provided the AGDR board is functioning correctly. Confirm that the gate driver’s overcurrent threshold and blanking time settings are compatible with the 5SHX0845F0001 datasheet parameters. If the AGDR board was exposed to the original fault event, it should be tested or replaced as a precaution.

Q: How much physical space does the replacement require in the converter cabinet?
A: The 5SHX0845F0001 Press-Pack form factor is dimensionally compatible with the 5SXE05-0151 stack position. No cabinet modifications or new mounting hardware are required. Confirm heatsink surface flatness and cleanliness before assembly.

Q: Can I replace a single IGBT module in a multi-cell converter, or must I replace the full set?
A: Single-module replacement is technically feasible and is the standard approach for emergency repairs. For planned maintenance, replacing all modules in the same phase leg or converter cell simultaneously is recommended to equalize aging and reduce the risk of secondary failures during the next service interval.

Q: What communication protocols are supported by the surrounding control system?
A: The IGBT module itself does not implement a communication protocol — it is a power semiconductor. The converter’s control unit (RDCU, RDNA, or equivalent) handles fieldbus communication via PROFIBUS, Modbus RTU, or DDCS fiber-optic links. These are unaffected by the IGBT replacement.

Q: How long does commissioning take after replacing the module?
A: For experienced field engineers familiar with ABB converter platforms, physical replacement and recommissioning typically takes 4–8 hours, including torque verification, insulation resistance testing, gate drive functional check, and a no-load power-up sequence. Allow additional time if the control system requires fault log clearing or parameter verification.

Warranty Assurance

Every ABB 5SHX0845F0001 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment process includes visual inspection, packaging integrity verification, and where applicable, functional parameter testing to confirm the module meets ABB’s published electrical specifications before dispatch.

In the event of a confirmed warranty claim, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our after-sales team is reachable via email and phone to support fault diagnosis, shipping documentation, and customs clearance for international replacement shipments.

We maintain stock of ABB 5SHX-series and 5SXE-series modules to support both emergency same-week dispatch and planned procurement schedules. Lead times, stock availability, and export documentation (including country of origin certificates for Switzerland-manufactured ABB components) are confirmed at the time of order.

For volume procurement, OEM integrators, and MRO stocking programs, TOPNLMS offers framework pricing and priority allocation. Contact our team to discuss your project requirements and annual volume needs.
