ABB 5SHX0845F0001 3BHL000385P0101 Original Industrial Spare IGCT Compatible: System Stability and Industrial Spare Maintenance Value

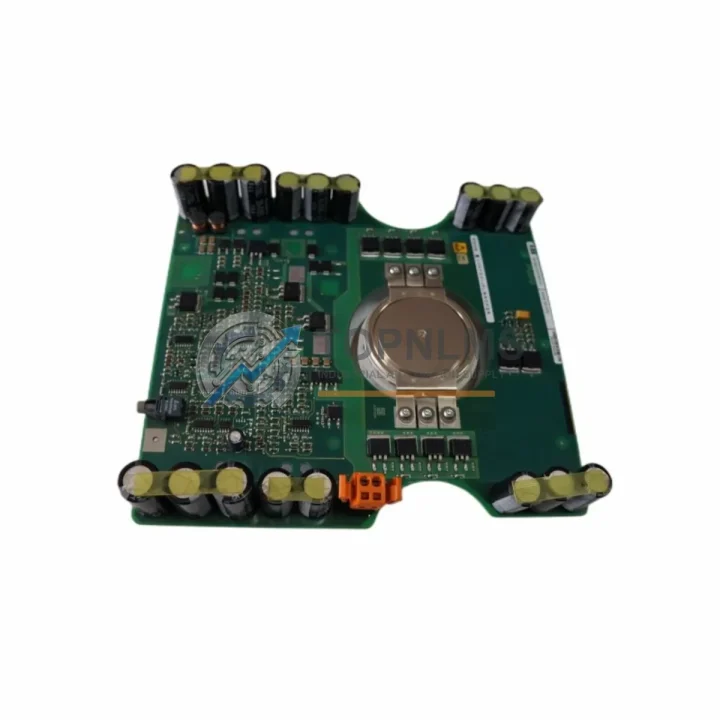

The ABB 5SHX0845F0001 (cross-reference: 3BHL000385P0101) is an original press-pack Integrated Gate-Commutated Thyristor (IGCT) power stack module engineered for ABB’s medium-voltage drive platforms, including the ACS1000, ACS5000, and ACS6000 series. As the core switching element in high-power drive systems, this IGCT module directly governs motor torque control, voltage regulation, and energy conversion efficiency across demanding industrial environments such as oil & gas compressor stations, mining hoists, cement kiln drives, steel rolling mills, and large-scale water treatment facilities.

Sourced directly from ABB’s original manufacturing supply chain and verified against factory specifications, the 5SHX0845F0001 is a critical spare that maintenance engineers and procurement teams should prioritize in their long-cycle inventory planning. Unplanned IGCT failure is one of the leading causes of catastrophic medium-voltage drive downtime — a single unscheduled outage in a continuous-process plant can result in production losses far exceeding the cost of maintaining a qualified spare on the shelf.

Critical Technical Specs Table

Preventive Maintenance Strategy

A medium-voltage drive power stack is a tightly integrated system — the IGCT module does not operate in isolation. When scheduling a planned shutdown for IGCT inspection or replacement, experienced maintenance teams treat the event as an opportunity to audit the entire power conversion assembly. Neglecting adjacent components after an IGCT swap is a common cause of repeat failures within the first 90 days of return-to-service.

During a power stack overhaul involving the 5SHX0845F0001, the ABB GDU (Gate Drive Unit) board — typically identified by part numbers in the 3BHL or AGDR series — should be inspected for capacitor aging, gate pulse integrity, and fiber-optic signal quality. A degraded gate drive unit can destroy a new IGCT within hours of commissioning. Similarly, the DC link capacitor bank and associated capacitor discharge resistors should be checked for capacitance drift and insulation resistance, as these directly affect voltage sharing across the IGCT stack.

The deionized water cooling circuit — including cooling hoses, flow sensors, conductivity sensors, and the heat exchanger — must be flushed and verified before reinstalling any press-pack device. Contaminated or high-conductivity cooling water is a leading cause of premature IGCT failure and is frequently overlooked during rushed maintenance windows. Stocking a set of cooling circuit O-rings and hose fittings specific to the ACS drive series ensures that the cooling loop can be fully serviced without waiting for parts.

The ABB AINT (Analog Interface Board) and RDCU (Drive Control Unit) — the digital brain of the ACS1000/5000/6000 — should be checked for firmware version compatibility and parameter backup before any power stack work begins. A corrupted drive parameter set after a hardware replacement is a preventable but time-consuming setback. Alongside these, the APBU (Pulse Distribution Unit) and associated fiber-optic cables connecting the control unit to the gate drive boards are wear items that should be replaced on a 5–7 year cycle regardless of apparent condition.

For facilities running multiple MV drives in parallel or in a common DC bus configuration, it is prudent to also inspect the input transformer bushings, MV contactor and bypass switch, and motor cable terminations during the same outage window. These components share the same thermal and electrical stress cycles as the IGCT stack and often reach end-of-life simultaneously. Maintaining a small buffer stock of MV fuses, current transformers (CTs), and voltage transducers associated with the drive’s protection relay circuit further reduces the risk of extended downtime from secondary failures discovered during recommissioning.

Strategic Replacement Solutions

The ABB 5SHX0845F0001 / 3BHL000385P0101 is a direct original replacement for aging IGCT stacks in first- and second-generation ACS medium-voltage drives that have been in continuous service for 10–20 years. Many plants operating legacy ACS1000 or early ACS5000 installations face a critical decision point: invest in a full drive replacement at significant capital cost, or extend the operational life of the existing system through targeted component renewal.

Replacing the IGCT module with an original ABB part — rather than an unverified aftermarket equivalent — preserves the drive’s original protection coordination, gate timing calibration, and thermal derating curves. This is particularly important in applications where the drive is integrated into a DCS or SCADA system with hardcoded protection thresholds. An IGCT with mismatched switching characteristics can trigger nuisance trips, degrade motor insulation through increased dV/dt stress, or cause asymmetric current sharing in multi-device stacks.

For maintenance teams managing aging MV drive fleets, a structured spare parts strategy built around the 5SHX0845F0001 — combined with a documented replacement procedure and pre-tested spare GDU board — can reduce mean time to repair (MTTR) from several weeks (waiting for OEM service) to less than 48 hours. This is the difference between a planned maintenance event and a production crisis.

TOPNLMS supplies the 5SHX0845F0001 from verified original stock, with each unit undergoing pre-shipment inspection and functional verification. Orders are processed with full traceability documentation, and the 12-month warranty covers defects in materials and workmanship under normal operating conditions.

Support FAQ

Q1: How do I verify that the 5SHX0845F0001 is compatible with my specific ACS drive model and serial number?
Compatibility depends on the drive’s power rating, voltage class, and hardware revision. Please provide your drive’s nameplate data (model, serial number, and firmware version) when placing your inquiry. Our technical team will cross-reference against ABB’s hardware compatibility matrix to confirm fitment before shipment.

Q2: What is the recommended inventory strategy for IGCT modules in a multi-drive facility?
For facilities operating 3 or more MV drives of the same platform, we recommend maintaining at least one tested spare IGCT module on-site at all times. IGCT devices have a typical operational lifespan of 15–25 years under normal conditions, but failure is non-linear — the probability of failure increases sharply after the 10-year mark. A single on-site spare eliminates lead-time risk entirely and is the most cost-effective insurance against unplanned downtime.

Q3: What pre-shipment testing is performed on the 5SHX0845F0001?
Each unit is inspected for physical integrity (press-pack compression surface, gate terminal condition, and housing seal), and verified against ABB’s original part number labeling and date code. Functional gate drive response testing is performed where applicable. A test report is available upon request. All units ship in original or equivalent protective packaging with ESD precautions.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions as specified in ABB’s application guidelines. It does not cover damage resulting from incorrect installation, cooling circuit contamination, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact us with the order reference, installation date, and a description of the failure mode. We will coordinate return logistics and replacement dispatch to minimize your downtime.
