ABB 5SHX 0445D0001 Replacement for ACS800/ACS6000: Seamless Upgrade & Legacy System Compatibility

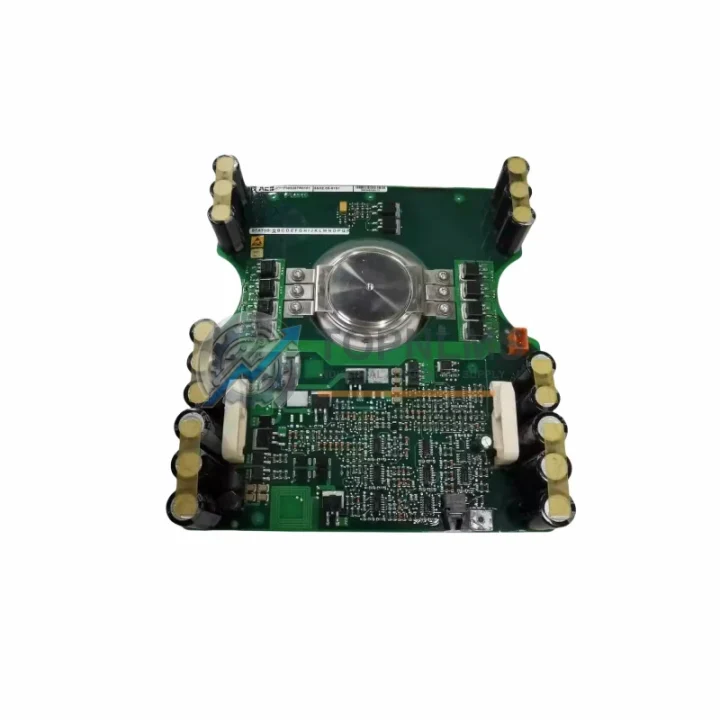

When your ABB ACS800 or ACS6000 series drive system encounters a failed or end-of-life IGBT gate drive board, unplanned downtime can cascade into significant production losses. The ABB 5SHX 0445D0001 (cross-reference: 3BHL000382P0101) is the OEM-specified IGBT gate drive board engineered for high-power drive platforms, and sourcing a verified replacement quickly is critical to restoring operations. TOPNLMS maintains ready stock of this module, fully tested and shipped from Xiamen with a 12-month warranty, enabling plant engineers and procurement teams to execute a smooth, low-risk retrofit without extended lead times.

This gate drive board interfaces directly with the IGBT power stack within the ACS800 and ACS6000 drive cabinets. It governs the switching signals that control motor torque and speed, making it one of the most failure-sensitive components in the drive chain. A direct replacement with the correct 5SHX 0445D0001 module eliminates the need for firmware reconfiguration or wiring modifications — the board slots into the existing drive frame, reconnects to the fiber-optic pulse transmission lines and DC bus measurement circuits, and resumes operation under the original drive parameters.

Compatibility Comparison Table

Seamless Upgrade Solutions

A gate drive board replacement rarely occurs in isolation. In most ACS800 and ACS6000 retrofit projects, field engineers simultaneously audit adjacent components to prevent repeat failures and ensure the drive system returns to full operational integrity. During the replacement of the 5SHX 0445D0001, it is common practice to inspect and, where necessary, replace the ABB RINT-5514C or RINT-5511C pulse encoder interface boards, which share the same fiber-optic communication backbone and are subject to similar thermal stress cycles.

The DC bus capacitor bank and the associated ABB BSFC-01 brake chopper module should also be evaluated during the same maintenance window, as capacitor degradation is frequently the root cause of gate drive overcurrent faults. If the drive cabinet includes an ABB RDCO-03 or RDCO-04 DDCS communication adapter for fieldbus integration — whether Profibus-DP, Modbus RTU, or PROFINET — verifying its firmware version against the restored drive parameters prevents communication timeouts after the board swap.

For plants running multi-drive configurations on a common DC bus, the ABB APBU-44C branching unit and associated fiber-optic distribution boards should be inspected for signal integrity. In cabinet-level retrofits where the ACS800 is being migrated from an older SAMI or Sami GS drive platform, the ABB NIOC-01 I/O extension board and NAMC-11 motor control board are frequently upgraded in the same service cycle to align the entire drive stack with current firmware baselines.

Power supply integrity is equally critical: the ABB SPCO-01 auxiliary power supply module, which feeds the gate drive and control electronics, should be load-tested before commissioning the replacement board. A marginal power supply is a common cause of premature gate drive failure and is often overlooked during fault diagnosis. Similarly, if the installation includes an ABB ACS800-04 regenerative supply unit or a common DC bus inverter module, the gate drive replacement should be coordinated with a full DC bus voltage calibration to ensure balanced switching across all IGBT stacks.

For facilities managing a broader ACS800 fleet, TOPNLMS also maintains stock of related drive control boards, I/O modules, and communication adapters to support multi-unit procurement and reduce per-shipment logistics costs.

Retrofit Guidance FAQ

Q: Does replacing the 5SHX 0445D0001 require rewiring the drive cabinet?
A: No. The replacement board uses the same connector layout and fiber-optic interface as the original. All existing wiring harnesses, gate pulse cables, and DC bus measurement leads connect directly without modification.

Q: Will I need to re-enter drive parameters after the swap?
A: In most cases, parameters are stored on the NAMC or AINT control board, not the gate drive board itself. If you have a DriveWindow or DriveComposer parameter backup, restoration takes minutes. If no backup exists, parameters must be re-entered manually from the commissioning sheet.

Q: Is this board compatible with both ACS800 single-drive and multi-drive configurations?
A: Yes. The 5SHX 0445D0001 is used across ACS800 single-drive, multi-drive, and regenerative supply unit variants, as well as in ACS6000 medium-voltage drive systems. Confirm your specific drive frame type and IGBT stack configuration before installation.

Q: What communication protocols does the replacement board support?
A: The gate drive board itself operates on ABB’s internal fiber-optic DDCS pulse interface and does not directly handle fieldbus protocols. Fieldbus communication (Profibus, Modbus, PROFINET, EtherNet/IP) is managed by the RDCO or RCAN adapter modules upstream. Replacing the gate drive board has no impact on fieldbus configuration.

Q: How much physical space does the replacement require?
A: The 5SHX 0445D0001 is a direct form-factor replacement. No cabinet modifications, additional DIN rail space, or bracket adapters are required. The board mounts in the original drive frame slot.

Q: Can this board be used to upgrade from an older IGBT stack generation?
A: The 5SHX 0445D0001 is designed for the specific IGBT stack it was paired with in the ACS800/ACS6000 platform. Cross-generation substitution requires verification of the IGBT stack part number and gate drive voltage/current ratings. Contact TOPNLMS with your full drive nameplate data for compatibility confirmation.

Warranty Assurance

Every ABB 5SHX 0445D0001 / 3BHL000382P0101 IGBT gate drive board shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including gate signal output testing, fiber-optic interface continuity checks, and visual inspection for component-level defects. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on fault diagnosis. Our technical team responds to warranty inquiries within 24 hours on business days. Replacement units are dispatched from Xiamen stock, with express shipping options available to minimize field downtime. All warranty claims require the original order number and a brief fault description; no return authorization delays apply for confirmed warranty cases.

For procurement teams managing multi-site maintenance contracts or annual spare parts budgets, TOPNLMS offers volume pricing, consolidated invoicing, and pre-shipment inspection reports on request. We support EXW, FOB Xiamen, and CIF delivery terms for international orders.
