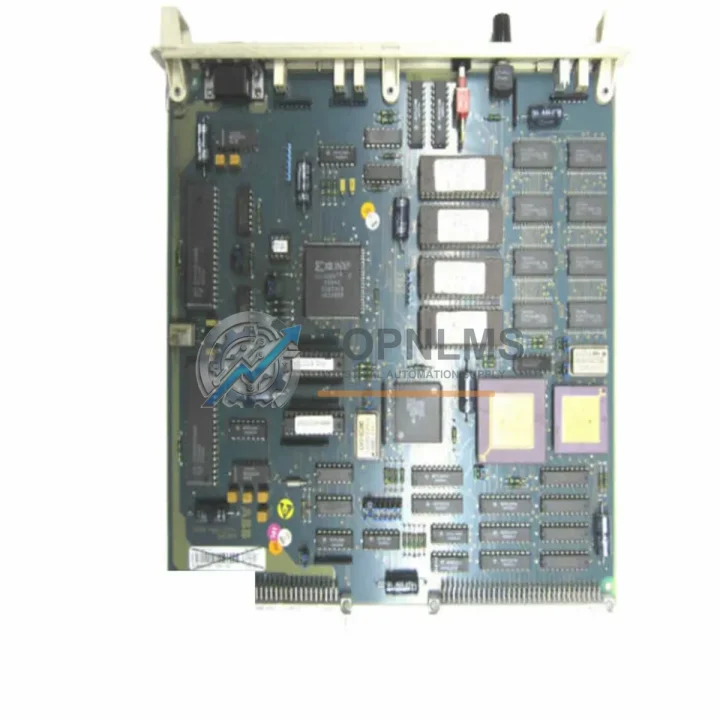

ABB 57310001-PK Ruggedized Encoder Interface for Harsh Environments

Product Overview

ABB 57310001-PK Ruggedized Encoder Interface for Harsh Environments

The ABB 57310001-PK, also identified as the SDCS-PIN-51 Encoder Pulse Interface Board, is a precision-engineered feedback module purpose-built for the ABB DCS 800 series DC drive platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining galleries, and vibration-intensive heavy-press lines — this board delivers uninterrupted encoder signal conditioning where system uptime is non-negotiable.

In continuous production environments, encoder feedback integrity is the backbone of closed-loop motor control. The SDCS-PIN-51 interfaces directly with the DCS 800 drive’s SDCS-CON-4 control board, translating incremental encoder pulse trains into precise speed and position data that the drive’s firmware uses to regulate torque, acceleration, and deceleration profiles. Any degradation in this signal path — caused by EMI, thermal stress, or connector fatigue — can cascade into drive faults, unplanned shutdowns, or, in safety-critical applications, hazardous runaway conditions. The 57310001-PK is engineered to eliminate that risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 57310001-PK does not operate in isolation — it is a critical node within a tightly integrated drive and control architecture. In a typical DCS 800 installation, the SDCS-PIN-51 board mounts onto the SDCS-CON-4 main control board, which orchestrates all closed-loop regulation functions. The control board in turn communicates with the SDCS-POW-4 power interface board, which manages gate firing signals to the thyristor bridge. Together, these three boards form the intelligence layer of the DCS 800 drive.

For applications requiring fieldbus integration, the DCS 800 platform supports optional communication modules such as the RDCO-02 (DDCS fiber-optic link) and RPBA-01 (PROFIBUS-DP adapter), enabling seamless integration with Siemens S7-300/S7-400 PLCs, ABB AC500 PLCs, or distributed control systems running on PROFIBUS or Modbus RTU backbones. In such architectures, the encoder feedback processed by the 57310001-PK feeds directly into the speed reference chain managed by the PLC, making signal accuracy paramount.

In control cabinet builds, the DCS 800 drive is typically paired with ABB SACE Tmax series molded-case circuit breakers for upstream protection, ABB EH series contactors for motor switching, and ABB SACE S200 miniature circuit breakers for auxiliary circuit protection. Surge protection on encoder signal lines — using devices such as the Phoenix Contact TRABTECH series or equivalent DIN-rail surge arresters — is strongly recommended in environments with frequent lightning strikes or heavy inductive switching loads. The SDCS-PIN-51’s differential signal inputs provide inherent common-mode noise rejection, but external surge protection adds a critical second layer of defense in high-EMI environments such as arc furnace facilities or variable-frequency drive (VFD) rooms.

For I/O expansion and safety interlock integration, the DCS 800 platform supports the SDCS-IOB-3 I/O extension board, which provides additional analog and digital I/O channels for process feedback, fault relay outputs, and emergency stop circuits. In safety-rated installations, this I/O board interfaces with dedicated safety relays — such as the ABB JOKAB SMILE series — to implement SIL 2-compliant emergency stop and safe torque-off (STO) functions, ensuring that encoder feedback loss triggers a controlled, safe shutdown rather than an uncontrolled coast-to-stop.

Application in Critical Infrastructure

The ABB 57310001-PK SDCS-PIN-51 board has established a proven track record across the most demanding sectors of global heavy industry. In steel and metals processing, DCS 800 drives equipped with SDCS-PIN-51 encoder feedback boards control rolling mill main drives, coiler tension drives, and leveler pinch rolls — applications where speed regulation accuracy directly determines strip thickness tolerance and surface quality. A single encoder feedback fault in a tandem cold mill can result in strip breaks, cobbles, and hours of costly downtime.

In mining and mineral processing, DCS 800 drives power hoist drives, conveyor belt drives, and crusher main motors in underground and open-pit operations. The SDCS-PIN-51’s robust signal conditioning ensures reliable encoder feedback even in environments saturated with coal dust, silica particulate, and diesel exhaust — conditions that rapidly degrade unprotected electronics. The board’s conformal-coated PCB construction provides additional protection against moisture ingress and corrosive atmospheres.

In oil and gas upstream and midstream facilities, DCS 800 drives control pump drives, compressor drives, and wellhead equipment in classified hazardous areas. While the drive itself is installed in pressurized or purged enclosures rated for Zone 2 / Division 2 environments, the encoder feedback signal must traverse long cable runs from the motor to the drive cabinet — runs that are highly susceptible to induced EMI from adjacent power cables. The differential encoder interface of the SDCS-PIN-51 is specifically designed to reject this common-mode interference, maintaining signal integrity over cable runs exceeding 100 meters.

In water and wastewater treatment plants, DCS 800 drives regulate pump and blower motors in high-humidity, chemically aggressive environments. The SDCS-PIN-51 board enables precise flow control through accurate speed feedback, supporting energy optimization strategies that reduce operational costs while maintaining process compliance with environmental discharge standards.

In pulp and paper manufacturing, where continuous web tension control across multi-section paper machines demands sub-millisecond speed regulation response, the SDCS-PIN-51’s high-resolution encoder interface ensures that the DCS 800 drive responds instantaneously to speed reference changes from the machine’s distributed control system — preventing web breaks that can shut down an entire paper machine for hours.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB 57310001-PK?
Every ABB 57310001-PK (SDCS-PIN-51) shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers functional defects under normal operating conditions. Our technical team provides post-sale support to assist with installation, commissioning, and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
All units undergo a multi-stage pre-shipment inspection protocol including visual inspection for physical damage, PCB-level continuity testing, and functional verification against ABB DCS 800 drive compatibility parameters. Units that do not pass all inspection stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 57310001-PK compatible with all DCS 800 drive variants?
The SDCS-PIN-51 is designed for use with the ABB DCS 800 series DC drive platform and is compatible with drives using the SDCS-CON-4 control board. Compatibility with specific drive ratings and firmware versions should be confirmed against the ABB DCS 800 hardware manual (3ADW000379). Our technical team can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains dedicated stock of ABB DCS 800 series spare parts, including the 57310001-PK, to support planned maintenance programs, emergency breakdown replacements, and long-term service contracts. We offer priority allocation for customers with ongoing procurement requirements. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
