ABB 57310001-CC Ruggedized DCS CPU Module for Harsh Environments

Product Overview

ABB 57310001-CC Ruggedized DCS CPU Module for Harsh Environments

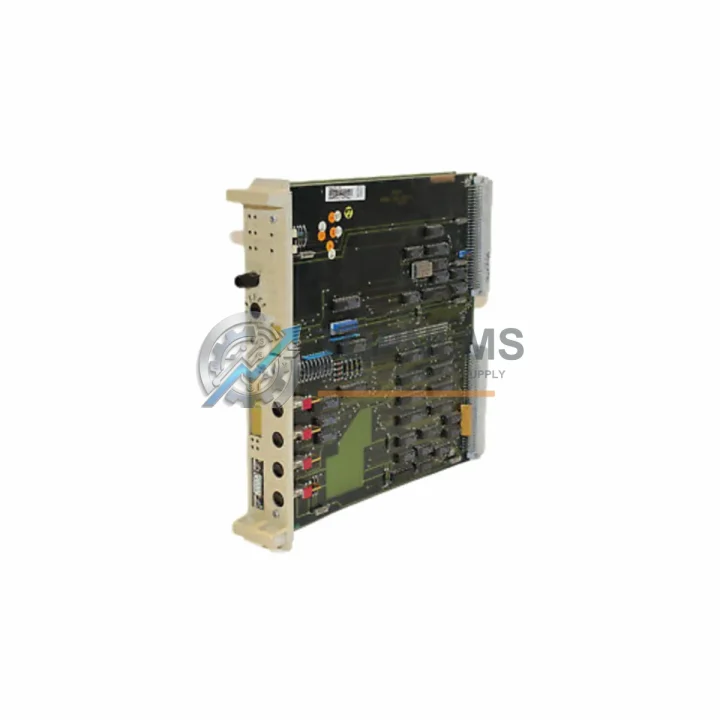

The ABB 57310001-CC is a high-performance CPU Control Board designed for the ABB AC450 Distributed Control System (DCS) platform — one of ABB’s most proven and widely deployed process automation architectures in global heavy industry. Built to operate continuously in demanding industrial environments, the 57310001-CC delivers the processing reliability, signal integrity, and thermal resilience required by facilities that cannot afford unplanned downtime.

Engineered in Germany to ABB’s stringent industrial quality standards, this CPU module serves as the central processing unit within the AC450 controller rack, coordinating real-time data acquisition, control loop execution, and inter-system communications. Its ruggedized design addresses the full spectrum of industrial hazards: high ambient temperatures, humidity fluctuations, airborne particulates, mechanical vibration, and electromagnetic interference (EMI) — all common in oil and gas, mining, power generation, water treatment, metallurgy, and chemical processing facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated ABB AC450 DCS architecture, the 57310001-CC CPU module does not operate in isolation — it functions as the command center for a coordinated ecosystem of control, I/O, power, and communication hardware. For facilities managing continuous production lines or safety-critical processes, the reliability of every connected component is equally important.

The AC450 platform typically pairs the 57310001-CC with dedicated ABB AC450 I/O modules such as the DSAI 130 (analog input) and DSDO 115 (digital output) for field signal acquisition and actuation. These I/O modules are mounted on the same controller rack and communicate directly through the AC450 backplane, ensuring deterministic scan times even under high-load conditions.

Power integrity is maintained by the ABB DSQC 604 and compatible AC450 power supply units, which provide regulated 24 VDC to the CPU and I/O subsystems. In high-availability installations, a redundant power supply module is added alongside the primary unit to eliminate single points of failure — a standard practice in oil refinery and LNG terminal control rooms.

For process safety applications, the 57310001-CC is often deployed alongside ABB safety relay modules and emergency shutdown (ESD) controllers that comply with IEC 61511 / SIL 2 requirements. These safety modules monitor critical process variables — pressure, temperature, flow — and trigger protective actions independently of the main control loop, ensuring that a CPU fault does not compromise plant safety.

Communication between the AC450 DCS and field devices or supervisory SCADA systems is handled through ABB PROFIBUS DP communication modules and Modbus RTU/TCP gateway modules, which connect the controller to variable frequency drives (VFDs), intelligent motor control centers (MCCs), and remote I/O stations. In facilities with legacy Siemens S7-300 or Rockwell ControlLogix PLCs operating in parallel zones, protocol converters and OPC UA communication servers bridge the two architectures without requiring hardware replacement.

Terminal connectivity within the control cabinet is managed through Phoenix Contact or Weidmüller terminal blocks and DIN-rail mounted surge protection modules, which shield the 57310001-CC from transient voltage spikes induced by nearby high-power equipment such as large motors, welding machines, or transformer switching events. These passive protection components are a low-cost, high-value addition to any AC450 installation in electrically noisy environments.

Application in Critical Infrastructure

The ABB 57310001-CC has established a strong operational track record across the world’s most demanding process industries. In oil and gas upstream and midstream facilities — including offshore platforms, onshore compression stations, and pipeline SCADA nodes — the AC450 DCS platform manages wellhead pressure control, separator level loops, and emergency shutdown sequences. The 57310001-CC CPU board handles the real-time execution of these control strategies while maintaining communication with field transmitters and actuators over distances of several kilometers.

In coal-fired and gas-fired power generation plants, the AC450 DCS coordinates boiler combustion control, turbine speed regulation, and flue gas desulfurization (FGD) systems. The 57310001-CC operates continuously at elevated ambient temperatures — often exceeding 40°C in turbine halls — while maintaining scan cycle consistency and alarm management integrity. Planned maintenance windows in power plants are typically measured in years, making the availability of tested spare CPU modules like the 57310001-CC a critical procurement priority for plant engineers.

In mining and mineral processing operations, the AC450 platform controls crushing circuits, flotation cells, thickener drives, and tailings management systems. These environments subject control hardware to extreme vibration, high dust concentrations, and wide temperature swings between day and night shifts. The ruggedized construction of the 57310001-CC — with conformal-coated PCBs and robust backplane connectors — ensures reliable operation without frequent cleaning or recalibration cycles.

Water and wastewater treatment plants rely on the AC450 DCS for dosing control, pump sequencing, and effluent quality monitoring. In these facilities, the 57310001-CC manages PID control loops for chemical dosing pumps and communicates with remote lift stations via PROFIBUS or Modbus TCP, enabling centralized supervision of geographically distributed assets.

In metallurgical and steel production facilities, the AC450 DCS governs electric arc furnace (EAF) power control, continuous casting machine speed synchronization, and rolling mill tension control. These applications demand sub-millisecond control loop execution and fault-tolerant CPU redundancy — capabilities that the 57310001-CC delivers within the AC450 redundant controller configuration.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 57310001-CC?
The 12-month warranty covers all manufacturing defects and functional failures identified under normal operating conditions consistent with ABB AC450 DCS specifications. If the module fails to perform its designated CPU control functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: How is the 57310001-CC tested before shipment?
Every 57310001-CC unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, PCB-level continuity testing, power-on functional verification, and communication interface validation. For refurbished units, additional burn-in testing is performed to screen for early-life failures. A test report is available upon request. Units that do not pass all inspection stages are quarantined and not offered for sale.

Q3: Is the 57310001-CC compatible with my existing AC450 DCS rack and I/O modules?
The 57310001-CC is designed specifically for the ABB AC450 DCS controller platform and is compatible with the standard AC450 controller rack, AC450 I/O modules (analog and digital), AC450 power supply units, and AC450 redundancy modules. It supports the AC450 backplane communication protocol and is firmware-compatible with ABB’s standard AC450 engineering tools. If you are integrating this module into a mixed-generation AC450 system, please contact our technical team with your existing rack configuration for compatibility confirmation before ordering.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the 57310001-CC?
Yes. TOPNLMS maintains dedicated inventory of ABB AC450 series components, including the 57310001-CC and related modules, to support long-term maintenance and emergency replacement needs. We understand that industrial facilities often operate AC450 DCS systems for 15–25 years beyond the original product’s active production lifecycle. Our sourcing network ensures continued availability of tested, verified units. For facilities requiring guaranteed stock reservation or blanket purchase agreements, please contact our sales team to discuss long-term supply arrangements.
