ABB 3HNA024941-001 Replacement Teach Pendant IRC5 FlexPainter

Product Overview

ABB 3HNA024941-001 Replacement Teach Pendant IRC5 FlexPainter: Seamless Transition & Legacy System Upgrade

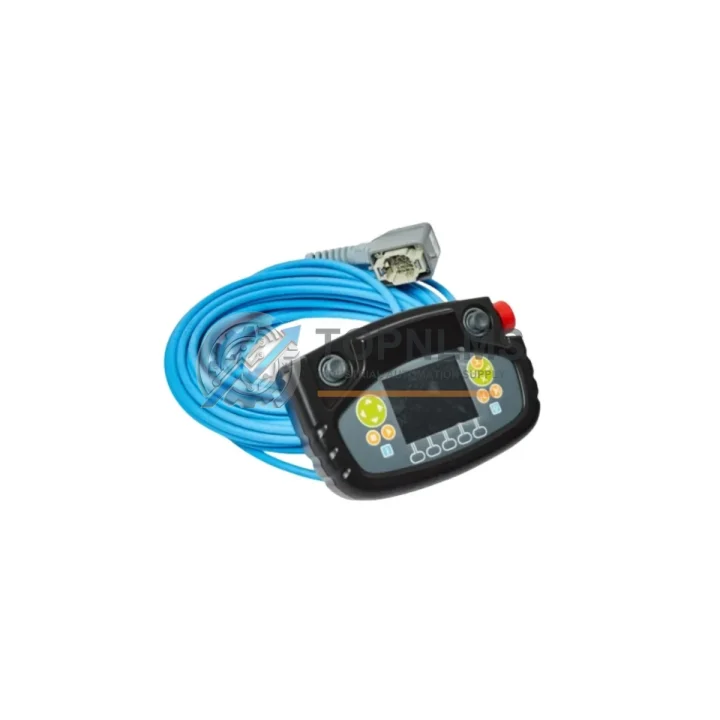

The ABB 3HNA024941-001 FlexPainter Teach Pendant is the authoritative operator interface for ABB IRC5 paint robot controllers deployed across automotive body-in-white, general industrial coating, and surface-finishing lines. As production environments evolve and original units reach end-of-service life, facilities running IRB 6700, IRB 4600, and legacy IRB 5500 platforms face an urgent need for a verified, drop-in replacement that preserves existing wiring harnesses, program libraries, and communication architecture without forcing a full controller overhaul.

TOPNLMS maintains ready stock of the 3HNA024941-001 teach pendant — also cross-referenced as 3HNA012283-001 — sourced from ABB-authorized supply chains and individually tested before dispatch. Whether your facility is retiring a worn unit, recovering from an unplanned failure, or executing a planned modernization of an IRC5 FlexPainter cell, this pendant delivers a smooth, low-risk transition.

Compatibility Comparison Table

Seamless Upgrade Solutions

A teach pendant replacement rarely occurs in isolation. During an IRC5 FlexPainter cell modernization or emergency recovery, engineers typically audit the broader control architecture to prevent cascading failures. The 3HNA024941-001 integrates directly with the IRC5 main computer module (DSQC 639 / 3HAC025097-001), which governs all axis control, I/O arbitration, and safety supervision. If the main computer shows degraded performance or intermittent faults alongside pendant issues, replacing both units in a single maintenance window eliminates repeat downtime.

The IRC5 drive system — specifically the drive unit DSQC 668 (3HAC025338-001) — interfaces with the pendant’s jog and speed-override commands. Verifying drive firmware compatibility during pendant swap-out is standard practice on IRB 6700 and IRB 4600 lines. Similarly, the I/O module DSQC 652 (3HAC025784-001) handles digital I/O signals that the pendant monitors in real time; a worn I/O board can produce false fault indications on a new pendant, so inspecting it concurrently saves commissioning time.

For facilities integrating paint process control, the FlexPainter application controller board and the process interface board (PIB) must be confirmed compatible with the RobotWare Paint option running on the IRC5 system. The pendant communicates paint-specific parameters — atomizer speed, shaping air, high-voltage electrostatics — through the IRC5 internal Ethernet bus to these boards. Ensuring the PIB firmware is current before commissioning the replacement pendant prevents protocol mismatch errors during the first production run.

Power supply integrity is equally critical. The IRC5 power supply unit (PSU, 3HAC024488-001) delivers regulated DC rails to both the controller backplane and the pendant charging circuit. A PSU showing voltage ripple or thermal stress should be replaced alongside the pendant to avoid premature failure of the new unit. The system battery backup module (3HAC044075-001) preserves program memory and clock data during pendant hot-swap procedures; confirming battery health before the swap prevents program loss.

On the communication side, facilities using DeviceNet or PROFIBUS adapters (DSQC 378B / DSQC 667) connected to the IRC5 should verify that fieldbus configuration files stored on the pendant are backed up to the controller’s flash memory before removal. The replacement 3HNA024941-001 loads these configurations automatically on first boot from the IRC5 system partition, eliminating manual re-entry. For cells using SafeMove safety configuration, the safety controller module (DSQC 647) retains all zone and speed supervision parameters independently of the pendant, so no safety re-commissioning is required after the swap.

Facilities managing multi-robot paint lines with an IRC5P (paint) dual-cabinet configuration should also inspect the interconnect cable set between cabinets (3HAC031683-001) during the maintenance window, as cable wear is a common co-failure mode with pendant degradation in high-cycle environments.

Retrofit Guidance FAQ

Q: Can I reuse my existing pendant cable when installing the 3HNA024941-001?
A: Yes. The 3HNA024941-001 uses the same standard IRC5 FlexPendant connector as all IRC5-series controllers. No new cable or adapter is required. Inspect the cable for jacket damage or connector pin wear before reuse.

Q: Do I need to re-enter robot programs after replacing the pendant?
A: No. All RAPID programs, module files, and system parameters reside on the IRC5 main computer’s flash storage, not on the pendant. The replacement pendant reads these files automatically on connection. Back up the system to a USB drive before the swap as a precaution.

Q: Is the 3HNA024941-001 compatible with RobotWare 5.x and 6.x?
A: Yes. The pendant firmware is compatible with RobotWare 5.14 and above through the RobotWare 6.x series. If your system runs an earlier version, contact TOPNLMS for version-specific guidance before ordering.

Q: Will SafeMove safety zones need to be re-validated after the swap?
A: SafeMove configuration is stored on the DSQC 647 safety controller module, not on the pendant. Zone definitions, speed limits, and tool supervision parameters are preserved. A functional safety test (manual jog through all zones) is recommended after any hardware change per IEC 62061 best practice, but full re-commissioning is not required.

Q: Does the physical installation require cabinet modification?
A: No. The 3HNA024941-001 has the same mounting dimensions and door-bracket interface as the outgoing unit. It mounts to the standard IRC5 cabinet door hook without drilling or bracket modification.

Q: What communication protocols does this pendant support?
A: The pendant communicates with the IRC5 controller exclusively over the internal Ethernet/IP link on the FlexPendant port. External fieldbus protocols (PROFIBUS, DeviceNet, EtherNet/IP to PLC) are handled by the IRC5 adapter modules and are transparent to the pendant.

Q: How do I handle the first-boot calibration after installation?
A: On first connection, the IRC5 system pushes the current RobotWare image and configuration to the pendant automatically. Allow 2–5 minutes for the synchronization to complete before attempting to jog or run programs. No manual calibration of the pendant hardware is required.

Warranty Assurance

Every ABB 3HNA024941-001 teach pendant shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Our pre-shipment inspection protocol includes power-on functional verification, touchscreen calibration check, E-stop circuit continuity test, and enabling-device actuation test. Units that do not pass all checkpoints are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial diagnosis and three business days for replacement dispatch. We maintain buffer stock specifically to support rapid warranty exchanges without waiting for inbound return processing.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices on request. All units are shipped with ESD-protective packaging and shock-indicator labels to protect pendant electronics during international freight. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units.

For urgent requirements or volume orders, contact our team directly to confirm availability and arrange priority dispatch.
