ABB 3HNA023282-001 PIB-03 Ruggedized Interface Module for Harsh Environments

Product Overview

ABB 3HNA023282-001 PIB-03 Ruggedized Interface Module for Harsh Environments

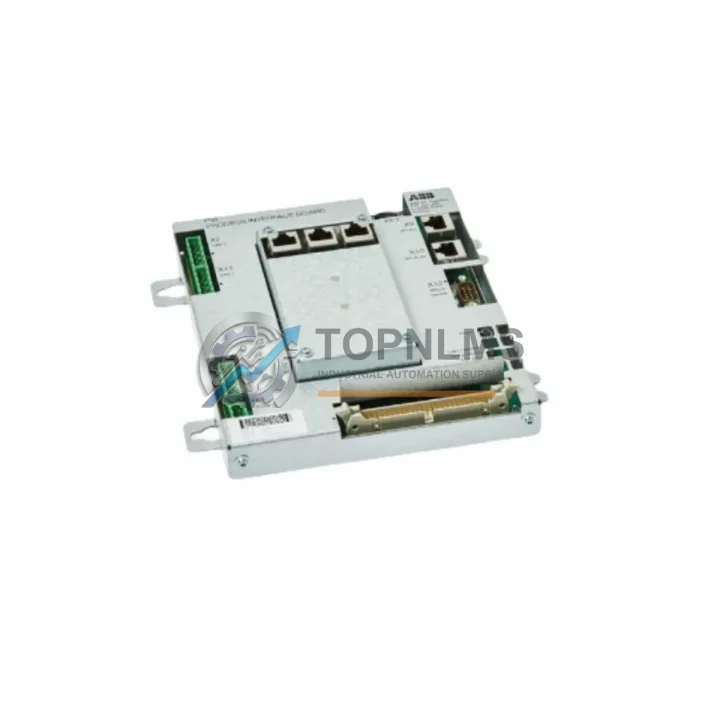

The ABB 3HNA023282-001 PIB-03 Process Interface Board is a mission-critical communication and signal-processing module engineered for the ABB IRC5 robot controller platform. Designed to operate continuously in demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this board delivers the signal integrity and thermal resilience that modern automation systems demand. Whether deployed in a robotic welding cell, a precision assembly line, or a hazardous-area control cabinet, the PIB-03 maintains stable I/O communication between the IRC5 controller and peripheral field devices without compromise.

At TOPNLMS, every unit of the 3HNA023282-001 PIB-03 is sourced through verified supply channels, subjected to functional bench testing prior to dispatch, and backed by a 12-month replacement warranty. Our inventory is maintained to support urgent spare-part requirements, minimizing unplanned downtime on critical production assets.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3HNA023282-001 PIB-03 does not operate in isolation — it is the nerve center of a tightly integrated control architecture. Within the IRC5 cabinet, it works in concert with the ABB DSQC 661 Axis Computer Board, which handles real-time motion trajectory calculations, and the ABB DSQC 662 I/O Board, which manages discrete digital and analog field signals. Together, these boards ensure that every servo drive command, safety interlock signal, and sensor feedback loop is processed with microsecond-level determinism.

On the power conditioning side, the PIB-03 relies on the ABB DSQC 604 Power Supply Unit to deliver clean, regulated DC rails across the IRC5 backplane. In environments with significant electrical noise — such as arc welding bays or variable-frequency drive (VFD) rooms — the stability of this power supply directly protects the PIB-03’s signal integrity. Complementing this, the ABB DSQC 609 Drive Unit interfaces with the servo amplifier stage, and any degradation in the PIB-03’s process interface capability will immediately manifest as axis faults or communication timeouts on the teach pendant.

For safety-rated applications — particularly those requiring SIL 2 or PLd compliance under IEC 62061 or ISO 13849 — the PIB-03 operates alongside the ABB SafeMove2 Safety Module, which enforces speed monitoring, safe stop functions (SS1, SS2, STO), and zone supervision. The ABB DSQC 1000 IRC5 Main Computer orchestrates the entire system, and the PIB-03 serves as its primary conduit for process-level I/O data. In multi-robot cells, the ABB DSQC 603 Communication Board extends the architecture across PROFIBUS DP or DeviceNet networks, allowing the PIB-03 to relay process data to upstream SCADA or DCS platforms such as the ABB System 800xA Distributed Control System.

In control cabinet builds where space and thermal management are critical, engineers frequently pair the PIB-03 with ABB CP600 HMI Panels for local operator visualization, and with Phoenix Contact or Weidmüller terminal block assemblies for structured field wiring. This combination ensures that the process interface signals handled by the 3HNA023282-001 are cleanly terminated, labeled, and protected against transient overvoltages at the cabinet entry point.

Application in Critical Infrastructure

The ABB 3HNA023282-001 PIB-03 has established a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In offshore platform topsides and onshore LNG processing terminals, IRC5-controlled robotic arms perform pipe inspection, valve actuation, and hazardous material handling. The PIB-03’s robust signal routing ensures uninterrupted communication between the controller and field instruments even in the presence of explosive-atmosphere classification (ATEX Zone 2 perimeter installations). Redundant control architectures in these facilities depend on the PIB-03 to maintain process continuity during partial maintenance shutdowns.

Mining & Minerals Processing: Underground and open-cut mining operations subject control electronics to extreme vibration, coal dust ingress, and wide thermal cycling. IRC5 controllers equipped with the PIB-03 manage robotic drilling rigs, ore-sorting conveyors, and automated sampling systems. The board’s compliance with IEC 60068 environmental standards makes it a reliable choice for these high-shock applications.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, robotic systems handle turbine inspection, cable routing, and switchgear maintenance. The PIB-03 enables precise process interfacing between the IRC5 controller and high-voltage substation monitoring systems, supporting predictive maintenance programs that reduce forced outage rates.

Metallurgy & Steel Production: Continuous casting lines, ladle handling robots, and hot-rolling mill automation rely on IRC5 controllers operating at ambient temperatures exceeding 45 °C with heavy electromagnetic interference from induction furnaces. The PIB-03’s shielded signal architecture and thermal tolerance make it indispensable in these environments, where a single communication fault can trigger a costly production stoppage.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy robotic systems for chemical dosing, pipe inspection, and sludge handling. The PIB-03 supports reliable I/O communication in high-humidity pump rooms and chemical storage areas, where corrosion-resistant enclosures and stable electronics are non-negotiable for regulatory compliance.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all verified functional defects in the ABB 3HNA023282-001 PIB-03 under normal operating conditions consistent with ABB IRC5 specifications. If a fault is confirmed within the warranty period, TOPNLMS will provide a direct replacement unit or a full refund — at the buyer’s discretion. Claims are initiated by contacting [email protected] with the order reference and a brief fault description. Our technical team typically responds within 24 business hours.

Q2: How is each unit tested before shipment?
Every PIB-03 board dispatched from TOPNLMS undergoes a pre-shipment functional verification process. This includes visual inspection for physical damage, continuity checks on critical signal paths, and where applicable, power-on testing against known-good IRC5 reference hardware. Units that do not pass inspection are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is the 3HNA023282-001 PIB-03 compatible with all IRC5 controller variants?
The PIB-03 is designed for the ABB IRC5 controller family, including the IRC5 Single Cabinet, IRC5 Dual Cabinet, and IRC5 Panel Mounted Controller (PMC) configurations. Compatibility with specific robot models — including IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 7600 series — should be confirmed against the robot’s software version (RobotWare) and hardware revision. TOPNLMS technical staff can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS maintains strategic stock of high-demand ABB IRC5 spare parts, including the 3HNA023282-001 PIB-03, to support planned maintenance programs, emergency breakdowns, and capital project builds. For customers requiring scheduled deliveries, blanket purchase orders, or volume pricing, please contact our procurement team directly. We also offer cross-reference support to identify functionally equivalent alternatives if the primary part number reaches end-of-life status.
