ABB 3HNA023200-001/00 TPPB-02 IRB 6660 Original Industrial Spare: Sustaining System Stability in Robotic Automation

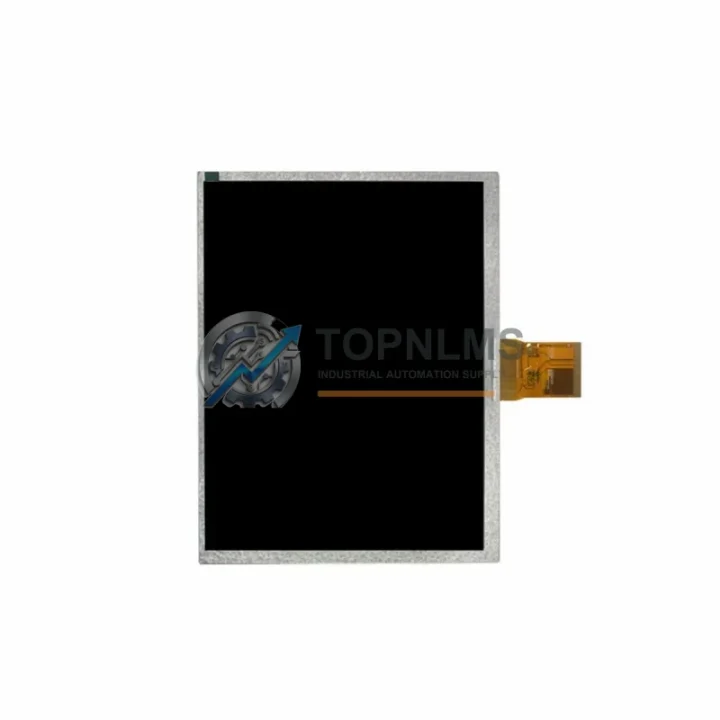

The ABB 3HNA023200-001/00 TPPB-02 LCD Display Panel is a critical original spare component for the ABB IRB 6660 series industrial robot teach pendant. In high-throughput manufacturing environments — automotive body shops, press-tending cells, foundry lines, and heavy-duty material handling systems — the teach pendant is the primary human-machine interface for robot programming, jogging, fault acknowledgment, and safety supervision. When the LCD display panel degrades or fails, the entire robot cell is effectively offline, halting production and triggering costly unplanned downtime.

Sourcing an original ABB 3HNA023200-001/00 replacement — rather than an aftermarket substitute — ensures pixel-perfect display rendering, full compatibility with the TPPB-02 pendant housing, and uninterrupted communication with the IRC5 robot controller. This is not a component where compatibility ambiguity is acceptable. The IRB 6660 operates in demanding thermal and vibration environments, and only an OEM-grade display panel delivers the contrast, backlight longevity, and connector integrity required for reliable long-term operation.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers know that a teach pendant LCD failure rarely occurs in isolation. The TPPB-02 pendant is a high-touch, high-cycle interface component subjected to daily mechanical stress, thermal cycling, and occasional impact. When scheduling a display panel replacement for the ABB 3HNA023200-001/00, it is best practice to conduct a comprehensive inspection of the entire teach pendant assembly and the surrounding IRC5 control cabinet at the same time.

Begin with the teach pendant cable assembly (3HAC031683-001) — the spiral cable connecting the pendant to the IRC5 controller is a common wear point and should be inspected for jacket cracking, connector pin corrosion, and continuity. A degraded pendant cable can cause intermittent display dropouts that are frequently misdiagnosed as LCD panel failures. While the cabinet door is open, inspect the IRC5 main computer unit (DSQC1000 / 3HAC036060-001) for capacitor bulge, fan operation, and firmware revision — an outdated controller firmware can cause display rendering anomalies unrelated to the panel hardware itself.

Check the IRC5 axis computer board (DSQC668 / 3HAC025562-001) for any fault history logged against the teach pendant communication bus. Simultaneously, verify the condition of the IRC5 I/O module (DSQC652 / 3HAC025917-001), which manages digital signal exchange between the robot controller and peripheral safety devices — a degraded I/O module can generate spurious E-stop signals that stress the pendant interface. Inspect all terminal blocks and 24VDC power distribution rails within the IRC5 cabinet for loose connections, which are a leading cause of intermittent pendant power loss.

For cells running continuous multi-shift production, include the IRC5 panel board (DSQC1032 / 3HAC046408-001) in your inspection checklist — this board governs the operator panel interface and shares the same 24VDC supply rail as the teach pendant. If the robot cell uses DeviceNet or PROFIBUS communication modules (DSQC378B / DSQC679), verify their status LEDs and bus termination resistors, as communication faults can cascade into HMI display errors. Finally, review the SMB (Serial Measurement Board, 3HAC031851-001) battery backup status — a depleted SMB battery causes resolver data loss on power cycle, which can trigger fault screens on the teach pendant that are mistaken for display hardware failures.

Stocking a TPPB-02 emergency stop button assembly and a spare teach pendant membrane keypad overlay alongside the 3HNA023200-001/00 LCD panel ensures that a complete pendant refurbishment can be completed in a single maintenance window, minimizing robot cell downtime to under two hours.

Strategic Replacement Solutions

The ABB IRB 6660 was introduced for heavy-payload press-tending and foundry applications and remains in active service across automotive and metal-forming plants worldwide. ABB’s standard spare parts lifecycle policy means that original components such as the 3HNA023200-001/00 may transition to limited-availability status as the robot platform matures. Securing verified original stock now — rather than waiting for a failure event — is the most cost-effective strategy for operations running IRB 6660 cells beyond their initial 10-year design horizon.

Unlike third-party display panels that may use non-OEM LCD modules with mismatched viewing angles, backlight intensities, or connector tolerances, the genuine ABB 3HNA023200-001/00 installs directly into the TPPB-02 housing without mechanical modification, preserves the pendant’s IP54 rating, and maintains full compatibility with all IRC5 software versions including RobotWare 5.x and 6.x. This eliminates the risk of post-replacement calibration issues, warranty voidance, or safety system non-compliance that can arise from non-OEM substitutions.

For plants managing fleets of IRB 6660 robots across multiple cells, a min-max inventory strategy — maintaining one spare 3HNA023200-001/00 panel per every four to six active robots — provides adequate coverage against unplanned failures while avoiding excessive capital tied up in slow-moving spare parts. This ratio is consistent with industry benchmarks for high-criticality HMI components in continuous-production robotic cells.
