ABB 3HNA013638-001 SMU-03 Ruggedized Servo Measurement Unit

Product Overview

ABB 3HNA013638-001 SMU-03 Ruggedized Servo Measurement Unit for Harsh Industrial Environments

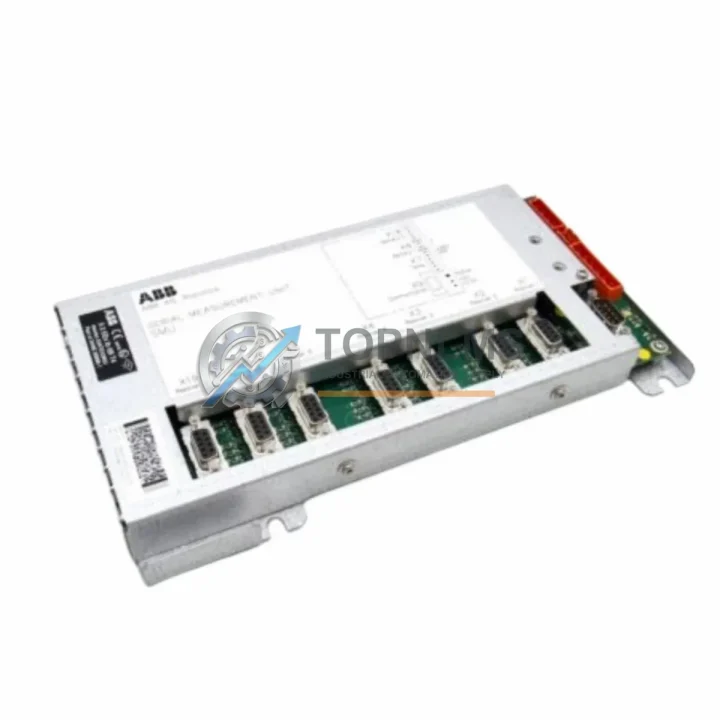

The ABB 3HNA013638-001 SMU-03 Servo Measurement Unit is a precision-engineered measurement and feedback module designed for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control architectures in automotive, heavy manufacturing, and process automation worldwide. Built to ABB’s stringent industrial-grade standards, the SMU-03 delivers continuous, high-accuracy servo position and velocity feedback even under the most demanding field conditions: extreme temperature cycling, high-humidity environments, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI) generated by adjacent variable frequency drives (VFDs), servo amplifiers, and high-current power distribution systems.

In continuous production lines — where unplanned downtime translates directly into lost revenue and safety risk — the SMU-03’s ruggedized signal conditioning circuitry ensures that encoder feedback data transmitted between the robot’s servo motors and the IRC5 main computer board remains clean, stable, and latency-free. This is critical in applications such as arc welding cells, press-tending robots, palletizing lines, and precision assembly stations where even microsecond-level feedback errors can trigger fault codes, emergency stops, or, in worst-case scenarios, mechanical collisions.

Rugged Specifications Table

Comprehensive Protection Solutions for IRC5-Based Automation Systems

The SMU-03 does not operate in isolation — it is a critical node within a tightly integrated control architecture. In a fully configured IRC5 cabinet, the SMU-03 works in concert with the ABB DSQC639 Main Computer Unit, which processes the feedback data the SMU-03 delivers, and the ABB DSQC668 Drive Unit, which translates motion commands into precise motor currents. Any degradation in the SMU-03’s signal integrity directly impacts the performance of these downstream components.

On the power side, the ABB DSQC609 Power Supply Unit provides the regulated DC rails that the SMU-03 and other IRC5 boards depend on for stable operation. In environments with significant mains voltage fluctuation — common in heavy industrial facilities with large motor loads — a clean, regulated supply is essential to prevent measurement drift or spurious fault triggers in the SMU-03. Similarly, the ABB DSQC643 I/O Board handles digital and analog I/O signals that coordinate robot motion with external safety interlocks, conveyor systems, and peripheral tooling; the SMU-03’s accurate position data is what allows these I/O-driven sequences to execute with repeatable precision.

For facilities running multi-robot cells or integrated production lines, the ABB DSQC658 Fieldbus Adapter and ABB DSQC679 Teach Pendant are frequently deployed alongside the SMU-03 to enable real-time diagnostics and remote monitoring. The teach pendant allows maintenance engineers to read live encoder values and servo status directly from the IRC5 HMI, making it straightforward to isolate whether a servo fault originates in the SMU-03, the motor resolver, or the drive unit itself.

In safety-critical installations — such as collaborative robot cells, press-brake tending, or hazardous material handling — the ABB DSQC400 Safety Board and associated safety relay modules provide the hardware-level emergency stop and safe torque-off (STO) functions that depend on accurate, uninterrupted feedback from the SMU-03. A failed or degraded SMU-03 in these environments does not merely cause a production stop; it can compromise the integrity of the entire safety function, making prompt spare-part replacement a compliance and liability issue, not just a maintenance task.

Communication modules such as the ABB DSQC688 DeviceNet Master/Slave Board and ABB DSQC586 Profibus Adapter extend the IRC5 system’s connectivity to plant-level SCADA, DCS, and PLC networks — including Siemens S7-300/S7-400 series PLCs and Rockwell ControlLogix systems — where the SMU-03’s real-time position data may be consumed by supervisory control loops. Maintaining a verified spare SMU-03 in the control room parts cabinet is standard practice in facilities where robot uptime is tied to overall equipment effectiveness (OEE) targets.

Application in Critical Infrastructure

The ABB 3HNA013638-001 SMU-03 sees active deployment across some of the world’s most demanding industrial sectors. In automotive body-in-white (BIW) welding lines, IRC5-controlled robots perform thousands of spot welds per shift; the SMU-03 ensures that each weld gun positioning cycle is executed with sub-millimeter repeatability, even as the surrounding environment fills with weld spatter, fumes, and high-frequency electrical noise from welding power sources.

In oil and gas upstream and midstream facilities, ABB IRC5 robots are deployed for pipe inspection, valve actuation, and hazardous material handling in Zone 2 classified areas. While the IRC5 cabinet itself is housed in a pressurized or purged enclosure, the SMU-03’s robust signal conditioning ensures that encoder feedback remains reliable despite the vibration from pumping equipment and the EMI generated by large variable-speed drives controlling compressors and pumps.

In metal fabrication and foundry environments, where ambient temperatures can exceed 45°C and airborne metallic particulates are a constant contamination risk, the sealed IRC5 cabinet protects the SMU-03 from direct exposure. However, thermal management of the cabinet interior is critical; the SMU-03 is rated for continuous operation at up to 55°C internal cabinet temperature, providing a meaningful safety margin in these high-heat applications.

Mining and mineral processing operations increasingly rely on robotic automation for sampling, sorting, and material handling. In these environments, the combination of heavy vibration from crushing and conveying equipment, high dust loads, and remote locations with limited maintenance access makes the availability of verified spare parts like the SMU-03 a strategic operational necessity. A single unplanned robot downtime event in a remote mining operation can cost tens of thousands of dollars per hour in lost throughput.

In power generation and water treatment facilities, where continuous operation is a regulatory requirement, IRC5-based robots perform inspection and maintenance tasks on high-voltage equipment and chemical dosing systems. The SMU-03’s reliable feedback performance supports the precise, repeatable motion profiles required for these safety-sensitive tasks.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HNA013638-001 SMU-03?
The 12-month warranty covers all functional failures attributable to component defects or workmanship issues under normal operating conditions consistent with ABB’s published specifications for the IRC5 platform. If the unit fails to perform its servo measurement and feedback functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental envelope.

Q2: How is each SMU-03 unit tested before shipment?
Every ABB 3HNA013638-001 SMU-03 unit dispatched by TOPNLMS undergoes a pre-shipment functional verification process. For new surplus units, this includes visual inspection for physical damage, connector integrity checks, and where test fixtures are available, power-on verification of communication bus activity. Refurbished units additionally undergo encoder signal output testing and thermal cycling to confirm stable operation across the rated temperature range. A test report is available upon request for critical-application orders.

Q3: Is the 3HNA013638-001 SMU-03 compatible with all IRC5 controller variants?
The SMU-03 (3HNA013638-001) is designed for the ABB IRC5 controller family, including the standard single-cabinet IRC5, the IRC5 Compact, and the IRC5 Panel Mounted Controller (PMC) variants, subject to the specific robot model and software version in use. Compatibility with specific robot models — including IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 7600 series — should be confirmed against the robot’s hardware revision and the IRC5 system software version. TOPNLMS’s technical team can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term supply and emergency replacement for the SMU-03?
Yes. TOPNLMS maintains strategic stock of ABB IRC5 spare parts, including the 3HNA013638-001 SMU-03, to support both planned maintenance programs and emergency breakdown scenarios. For facilities with multiple IRC5 robots or high-uptime requirements, we recommend establishing a consignment or blanket-order arrangement to ensure immediate availability. Emergency orders with expedited shipping can typically be dispatched within 24 hours of order confirmation. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance schedule.
