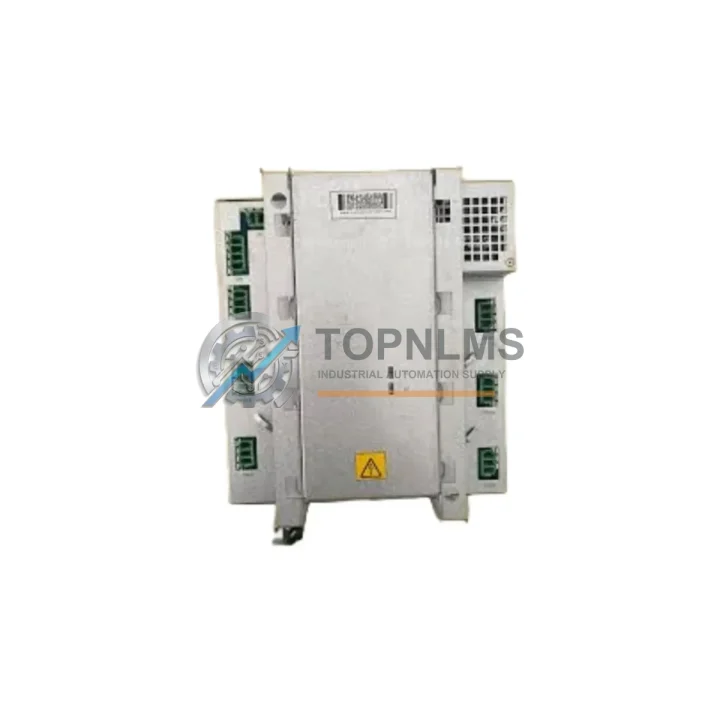

ABB 3HNA006144-001 Replacement for IRC5 Series

Product Overview

ABB 3HNA006144-001 Replacement for IRC5 Series: Smooth Transition, Zero Compromise

When a critical IRC5 robot controller goes down, every minute of unplanned downtime translates directly into production loss. The ABB 3HNA006144-001 Process Interface Board is the nerve center of the IRC5 cabinet’s signal routing architecture — managing process I/O handshaking between the robot controller and external automation systems. Whether you are replacing a failed unit, upgrading from an earlier IRC5 revision, or building a spare-parts inventory for a multi-robot cell, TOPNLMS stocks verified 3HNA006144-001 boards ready for immediate dispatch.

The IRC5 controller platform has been the backbone of ABB industrial robotics for over two decades, deployed across automotive body shops, foundry lines, pharmaceutical packaging, and precision assembly cells. The 3HNA006144-001 sits at the intersection of the controller’s internal DSQC bus and the external process signals — coordinating digital I/O, safety interlocks, and fieldbus communication with the broader plant control system. A degraded or failed board typically manifests as erratic I/O behavior, loss of external signal acknowledgment, or controller fault codes pointing to the process interface layer.

For facilities migrating from a legacy ABB S4C+ or S4 controller to the IRC5 platform, the 3HNA006144-001 is a cornerstone component of the retrofit kit. The migration path typically involves replacing the teach pendant with an ABB FlexPendant, updating the safety architecture to a DSQC 400 or DSQC 643 safety module, and remapping all external I/O signals through the new process interface board. The transition preserves existing wiring harnesses in most cases, significantly reducing installation labor and commissioning time on the factory floor.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3HNA006144-001 replacement rarely happens in isolation. Field engineers performing this swap will simultaneously audit surrounding components to prevent repeat failures. The IRC5 cabinet’s internal power supply — typically a DSQC 661 24 VDC unit — should be load-tested before the new board is commissioned, since a sagging supply rail is a common root cause of process interface faults. The DSQC 662 digital I/O board and DSQC 663 digital output module share the same backplane bus and should be inspected for connector fatigue or corrosion during the same maintenance window.

For robot cells communicating with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, the fieldbus adapter — typically an ABB DSQC 510 or DSQC 532 — must be re-parameterized after the process interface board is replaced to re-establish the GSD device profile. In EtherNet/IP environments, the DSQC 669 communication module handles the upper-layer protocol and generally survives a board swap without reconfiguration, though an IP address conflict check is recommended before returning to automatic mode.

Where the robot cell interfaces with a Siemens ET 200S distributed I/O rack or a Beckhoff EK1100 EtherCAT coupler for peripheral signal aggregation, the process interface board replacement is transparent to those devices as long as the IRC5 controller’s I/O mapping is preserved in the RobotWare backup. Customers upgrading from an older IRC5 M2004 cabinet to a current IRC5 Compact or Panel Mounted Controller will find that the 3HNA006144-001 is compatible across the full IRC5 family. The DSQC 1000 computer unit and DSQC 1030 axis computer that anchor the modern IRC5 architecture communicate with the process interface board through the same internal bus — no firmware bridge or adapter required.

For multi-robot cells managed by a single IRC5 Dual Cabinet Controller, the process interface board in each drive module cabinet should be treated as an independent replacement unit. TOPNLMS can supply matched pairs or full cabinet sets on request, ensuring consistent hardware revision levels across the entire robot fleet and simplifying long-term spare-parts management.

Retrofit Guidance FAQ

Q1: Is the 3HNA006144-001 a direct drop-in replacement — do I need to modify wiring or connectors?
Yes. It is a direct board-level replacement within the IRC5 cabinet. The connector layout and DIN rail mounting are identical to the original. No wiring modification is required. After installation, restore the RobotWare system backup to reload I/O configuration, safety parameters, and fieldbus settings. A cold restart of the IRC5 controller is sufficient to bring the new board online.

Q2: Will my existing PROFIBUS-DP or EtherNet/IP fieldbus configuration survive the board swap?
Fieldbus configuration is stored in the RobotWare system parameters, not on the process interface board itself. As long as you have a current system backup — created via RobotStudio or the FlexPendant backup function — your PROFIBUS-DP or EtherNet/IP network settings will be fully restored after replacement. The fieldbus adapter modules (DSQC 510, DSQC 532, DSQC 669) do not need to be replaced or reconfigured.

Q3: My IRC5 cabinet has a custom safety interlock wired through the process interface board. Will the replacement affect my safety circuit?
The 3HNA006144-001 routes external safety signals through the IRC5 safety chain. After replacement, the safety configuration stored in the DSQC 400 or DSQC 643 safety module is preserved. However, ABB recommends a full safety function test — emergency stop, safeguard stop, and speed monitoring — after any process interface board replacement before returning the robot to automatic mode.

Q4: What if my IRC5 is running an older RobotWare version — is the 3HNA006144-001 still compatible?
The 3HNA006144-001 is compatible with RobotWare 5.x and 6.x. For IRC5 cabinets running RobotWare 5.07 or earlier, verify the system revision against ABB’s hardware compatibility matrix. In most cases, the board is backward compatible without a firmware update. If you are unsure of your RobotWare version, the FlexPendant displays it under ABB Menu → System Info. TOPNLMS technical support can assist with compatibility verification before shipment.

Q5: Can this board be used in an IRC5 Compact or Panel Mounted Controller, not just the standard cabinet?
Yes. The 3HNA006144-001 is compatible across the IRC5 family, including the IRC5 Single Cabinet, Dual Cabinet, Compact, and Panel Mounted Controller variants. Physical installation dimensions and bus interface are consistent across all IRC5 form factors.

Warranty Assurance

Every ABB 3HNA006144-001 Process Interface Board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a multi-point inspection covering visual integrity, connector condition, PCB surface examination, and functional verification against IRC5 compatibility parameters. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period — no lengthy RMA bureaucracy. Our average response time for warranty inquiries is under 24 hours. For urgent production-down situations, we offer priority dispatch with same-day or next-day shipping from our Xiamen warehouse, with DHL Express, FedEx International Priority, and UPS air freight options available for international customers.

Long-term supply continuity is a core commitment at TOPNLMS. We maintain buffer stock of high-demand IRC5 components specifically to support customers with multi-robot installations who require matched replacement sets or ongoing spare-parts programs. Volume pricing and blanket purchase order arrangements are available for OEM integrators, robot system houses, and end-users with large IRC5 fleets.

For pricing, lead time, and technical compatibility confirmation, contact our industrial automation team directly.
