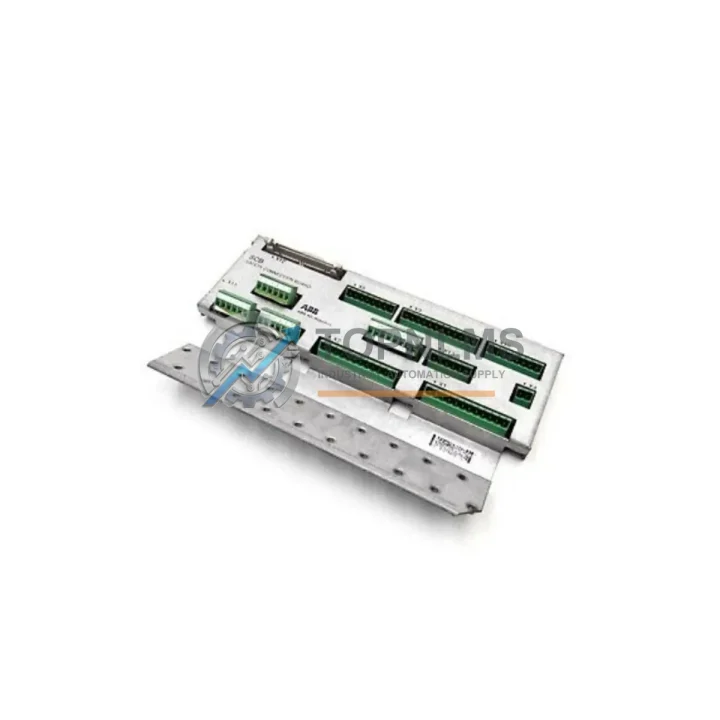

ABB 3HAC7998-1 SCB-01 Replacement for IRB2400 IRC5: Seamless Safety System Upgrade

The ABB 3HAC7998-1 SCB-01 (Safety Connection Board) is a critical safety interface module used in ABB IRB2400 industrial robots controlled by the IRC5 and S4C+ controller platforms. When this board fails or reaches end-of-life, the entire robot cell is grounded — halting production and triggering costly unplanned downtime. TOPNLMS stocks verified replacement and upgrade units of the 3HAC7998-1 SCB-01, enabling your maintenance team to restore full robot operation with minimal disruption to your production schedule.

The SCB-01 board serves as the hardware bridge between the robot’s safety chain and the IRC5 controller cabinet. It handles emergency stop (E-stop) signal routing, safety relay logic, and dual-channel monitoring required under IEC 62061 and ISO 13849 safety standards. A failed or degraded 3HAC7998-1 typically manifests as persistent safety chain errors, unexpected E-stop faults, or controller boot failures — all of which prevent the robot from entering operational mode.

Our replacement 3HAC7998-1 units are sourced from verified ABB supply channels and undergo pre-shipment functional testing. Each board is inspected for connector integrity, relay contact condition, and firmware compatibility before dispatch. Whether you are replacing a failed unit on an IRB2400/6 or IRB2400/16 cell, or proactively stocking a critical spare for your IRC5 cabinet, TOPNLMS provides a reliable, traceable supply path.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SCB-01 replacement rarely happens in isolation. In most IRC5 retrofit and migration projects, the 3HAC7998-1 is replaced alongside a broader set of cabinet components to ensure the entire safety chain and control architecture is restored to full specification.

The most common companion replacement is the DSQC 661 or DSQC 662 power supply unit, which provides the regulated 24 VDC rail that the SCB-01 depends on. A degraded PSU can cause intermittent SCB-01 faults even after board replacement, so both units should be inspected together. Similarly, the DSQC 679 FlexPendant interface unit and the DSQC 1000 main computer board are frequently refreshed during the same maintenance window, since IRC5 cabinet downtime is expensive and bundling replacements reduces total intervention time.

For sites migrating from S4C+ to IRC5, the safety chain wiring harness must be re-terminated to match the IRC5 X1/X2/XS connector pinout. In these cases, the 3HAC025338-001 cable assembly or equivalent field-wired terminal block adapter is used to bridge legacy E-stop button stations and light curtain interfaces to the new SCB-01 pinout. The DSQC 643 I/O module and DSQC 652 digital I/O board are also commonly replaced during this migration to align the I/O map with the updated RobotWare configuration.

Sites running SafeMove or SafeMove2 safety supervision software will additionally require the DSQC 647A SafeMove board to be present and correctly configured alongside the SCB-01. The SafeMove board communicates with the SCB-01 via the internal IRC5 backplane bus, and both must be at compatible firmware revisions before the safety system can be validated. For robot cells with external axis drives, the DSQC 668 axis computer or DSQC 609 drive unit may also need inspection, as safety chain faults can propagate across the drive bus and trigger false SCB-01 error codes.

Finally, for facilities standardizing on a single spare-parts inventory, the 3HAC7998-2 variant (an alternate revision of the SCB-01 board) is stocked alongside the 3HAC7998-1 to cover both IRC5 hardware revisions present in mixed-vintage robot fleets. TOPNLMS can advise on which revision is appropriate for your specific IRC5 cabinet serial number range.

Retrofit Guidance FAQ

Q: Can I replace the 3HAC7998-1 SCB-01 without re-programming the IRC5 controller?
A: Yes. The SCB-01 is a hardware safety relay board and does not store RobotWare parameters or RAPID programs. A direct board swap does not require any software changes. However, after replacement you must perform a full safety chain test — cycling all E-stop buttons, enabling the FlexPendant deadman switch, and verifying that the controller transitions correctly from Motors Off to Motors On state.

Q: What wiring checks are required before powering on after SCB-01 replacement?
A: Verify that all E-stop loop connectors (X1, X2, XS) are correctly seated and that the dual-channel wiring is intact with no cross-connections. Confirm that the 24 VDC supply from the DSQC 661/662 PSU is within specification (23.5–25.5 VDC) before applying power. Refer to ABB IRC5 Product Manual (3HAC021313-001) Section 5 for the complete safety chain verification procedure.

Q: Is the 3HAC7998-1 compatible with both single-cabinet and dual-cabinet IRC5 configurations?
A: The 3HAC7998-1 SCB-01 is designed for the IRC5 single-cabinet configuration. For dual-cabinet (IRC5 with drive module) installations, verify the cabinet revision and cross-reference with ABB spare parts documentation, as the drive module cabinet uses a separate safety interface. Contact TOPNLMS with your cabinet serial number for confirmation.

Q: Can this board be used to upgrade a robot currently running on an S4C+ controller?
A: The SCB-01 3HAC7998-1 is an IRC5-platform component and is not directly compatible with S4C+ (DSQC 500-series) cabinets. A full controller migration from S4C+ to IRC5 is required, which involves replacing the main computer, drive units, PSU, and safety boards as a system. TOPNLMS can supply the full IRC5 migration kit components — contact us with your robot model and S4C+ cabinet revision for a parts list.

Q: How do I confirm which revision of the SCB-01 my IRC5 cabinet requires?
A: The cabinet serial number plate (located on the inside of the IRC5 cabinet door) contains the hardware revision code. Cross-reference this with ABB Spare Parts Catalogue document 3HAC025338-001. TOPNLMS technical support can assist with revision identification — provide your cabinet serial number when ordering.

Q: What communication protocols does the SCB-01 support?
A: The SCB-01 operates on a hardwired dual-channel safety chain and does not use fieldbus communication for its core safety function. However, the IRC5 controller it interfaces with supports DeviceNet, PROFIBUS, EtherNet/IP, and PROFINET via separate communication boards (DSQC 651, DSQC 667, DSQC 688). These fieldbus boards are unaffected by SCB-01 replacement and do not require reconfiguration.

Warranty Assurance

Every ABB 3HAC7998-1 SCB-01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual inspection of all PCB components and connectors, functional relay contact testing, and verification of board revision markings against the order specification. Units that do not pass inspection are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to stock availability. Our after-sales team responds to warranty inquiries within 24 hours on business days. We maintain traceability records for all dispatched units, including batch codes and inspection dates, to support your internal maintenance documentation requirements.

For procurement teams requiring formal quality documentation, TOPNLMS can provide a Certificate of Conformance and packing list with each shipment. Express shipping options (DHL, FedEx, UPS) are available for urgent replacement orders. Standard lead time for in-stock units is 1–3 business days from order confirmation.

TOPNLMS serves industrial customers across manufacturing, automotive, food processing, and logistics automation sectors. Our technical team has direct experience with ABB IRC5 platform components and can provide pre-sales compatibility advice at no charge.
