ABB 3HAC5958-1 Ruggedized Cable Unit for Harsh Environments

Product Overview

ABB 3HAC5958-1 Ruggedized Cable Unit for Harsh Environments

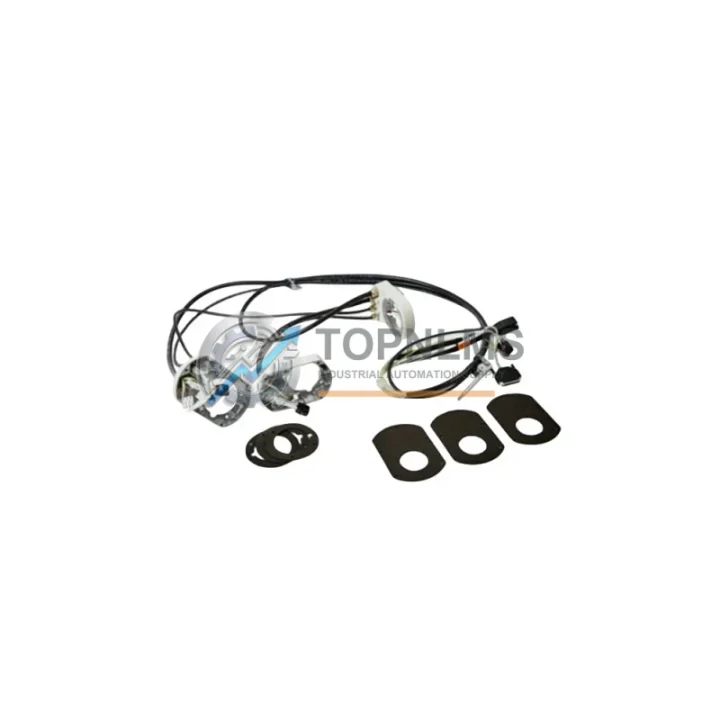

The ABB 3HAC5958-1 — cross-referenced as 3HAC9328-1 and 3HAC050554-001 — is a factory-engineered lower-arm Cable Unit for Axes 1–3, purpose-built for the ABB IRB 4400 and ABB IRB 2400 industrial robot platforms. Designed to operate continuously in the most demanding industrial environments — including high-temperature foundries, high-humidity food processing lines, dust-laden mining galleries, and vibration-intensive heavy press shops — this cable assembly delivers the signal integrity and mechanical resilience that mission-critical automation demands.

In modern industrial facilities, a single cable failure can cascade into unplanned downtime across an entire production cell. The 3HAC5958-1 is engineered to eliminate that risk. Its multi-layer braided shielding architecture suppresses electromagnetic interference (EMI) generated by adjacent variable-frequency drives, servo amplifiers, and high-current bus bars, ensuring clean, noise-free communication between the robot controller and the manipulator arm across all three primary axes. Whether your facility runs 24/7 continuous casting, automated welding, or precision material handling, this cable unit maintains consistent performance without signal degradation or axis-position drift.

The assembly’s ruggedized PUR/PVC composite outer jacket resists abrasion, chemical splash, oil, coolant, and UV exposure, making it equally suited to outdoor petrochemical installations and enclosed cleanroom environments. Strain-relief terminations at both ends prevent conductor fatigue at flex points — a common failure mode in high-cycle robotic applications — while the precision-molded IP67-rated connectors ensure positive mating with the ABB IRC5 and S4C+ controller families. Every unit is individually packaged in anti-static, moisture-barrier packaging and dispatched with a pre-shipment continuity and insulation resistance test record.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3HAC5958-1 is a critical link in a broader automation architecture, not an isolated component. In a typical ABB IRB 4400 welding cell, this cable unit works in concert with the ABB DSQC 652 digital I/O board, which manages discrete signal exchange between the robot controller and peripheral safety devices. The ABB DSQC 679 teach pendant cable and the ABB DSQC 1000 main computer board rely on clean axis-signal transmission to execute precise motion profiles; any degradation in the cable unit directly impacts path accuracy and cycle repeatability.

On the power side, the ABB DSQC 608 power supply unit and ABB DSQC 662 fieldbus adapter must receive stable, interference-free signals to maintain synchronised operation across multi-robot cells. In facilities where the IRB 4400 shares a control cabinet with ABB ACS880 variable-frequency drives controlling conveyor or positioner motors, the multi-layer EMI shielding of the 3HAC5958-1 becomes especially critical — preventing drive-induced noise from corrupting resolver feedback on Axes 1–3 and protecting the integrity of the entire motion control loop.

For safety-rated applications, the cable unit integrates seamlessly with ABB SafeMove2 safety controller configurations, where axis-position monitoring depends on uninterrupted signal continuity. Facilities running ABB IRC5 Panel Mounted Controllers with PROFINET or DeviceNet communication modules benefit from the cable’s shielding performance, which maintains fieldbus signal integrity even in high-EMI press and stamping environments. Complementary spare parts such as the ABB 3HAC14550-2 upper arm cable harness and ABB 3HAC17484-1 axis computer are commonly stocked alongside the 3HAC5958-1 to support full preventive maintenance kits for IRB 4400 and IRB 2400 fleets, minimising mean time to repair (MTTR) during unplanned breakdown events.

Application in Critical Infrastructure

In oil and gas facilities, ABB IRB 4400 robots equipped with the 3HAC5958-1 cable unit perform pipe welding, valve assembly, and hazardous-area material handling where cable integrity is a safety prerequisite, not merely a performance metric. Unplanned cable failure in these environments can trigger emergency shutdowns with significant financial and safety consequences, making genuine OEM replacement parts the only acceptable procurement standard.

In metallurgy and steel production, robots operating near induction furnaces and continuous casting lines face extreme thermal cycling and electromagnetic flux. The ruggedized jacket and full-length EMI shielding of the 3HAC5958-1 allow sustained operation in ambient conditions that would degrade standard cable assemblies within weeks, protecting both the robot investment and the continuity of the production line.

In automotive body-in-white manufacturing, where IRB 4400 robots execute thousands of spot welds per shift, the cable unit’s strain-relief design and high-flex conductor construction extend service life dramatically compared to generic replacements, reducing the frequency of planned maintenance windows and protecting overall equipment effectiveness (OEE). Facilities that have standardised on genuine ABB cable assemblies consistently report lower unplanned downtime rates across their robot fleets.

In water treatment and power generation facilities, where robots handle chemical dosing, valve actuation, and substation maintenance in high-humidity environments, the IP67-rated connector terminations of the 3HAC5958-1 prevent moisture ingress that would otherwise cause intermittent axis faults and unscheduled downtime — a critical consideration for utilities operating under strict availability SLAs.

In mining and mineral processing, where vibration, dust, and corrosive atmospheres are constant, the cable unit’s composite jacket and robust connector locking mechanisms ensure reliable operation across extended maintenance intervals — a key requirement for remote sites where spare parts logistics are complex and downtime costs are disproportionately high.
