ABB 3HAC2530-1 Original Industrial Spare IRC5 S4C+ Compatible

Product Overview

ABB 3HAC2530-1 Original Industrial Spare IRC5 S4C+ Compatible: Ensuring System Stability in Robotic Automation

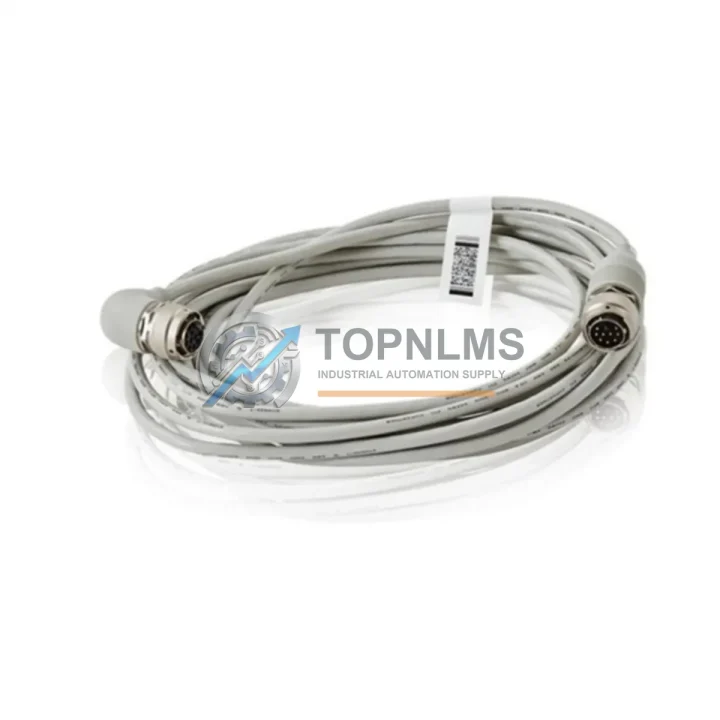

The ABB 3HAC2530-1 is an original internal servo and signal cable assembly engineered specifically for ABB IRC5 and S4C+ robot controller platforms. In industrial environments where robotic arms operate continuously across multi-shift production schedules, the integrity of internal wiring harnesses is a foundational element of system reliability. A degraded or failed servo signal cable does not merely cause a single axis fault — it can trigger cascading controller errors, force an unplanned production halt, and expose maintenance teams to extended troubleshooting cycles that compound downtime costs.

Sourced as an original ABB spare component, the 3HAC2530-1 maintains full electrical compatibility with the IRC5 single-cabinet controller and the legacy S4C+ platform, making it the correct replacement choice for facilities running either generation of ABB industrial robots. Whether your maintenance team is performing a scheduled overhaul, responding to a cable wear fault, or building a strategic spare parts inventory to protect against future failures, the 3HAC2530-1 delivers the dimensional accuracy, connector specification, and signal integrity that OEM-grade maintenance demands.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers understand that a robot controller is an integrated system — replacing a single cable in isolation, without auditing the surrounding components, is a missed opportunity to prevent the next failure. When your team opens the IRC5 or S4C+ cabinet to replace the 3HAC2530-1, the following components should be inspected and, where wear is evident, replaced proactively.

Begin with the axis computer board (DSQC 668 or equivalent) mounted within the IRC5 drive module. This board interfaces directly with the servo signal cable and is a common co-failure point when cable insulation has degraded and introduced noise into the feedback loop. While the cabinet is open, inspect the drive unit modules — particularly the DSQC 661 or DSQC 662 drive units — for capacitor bulging, burn marks, or thermal discoloration that indicate impending failure under load.

The main computer unit (DSQC 639) should be checked for firmware currency and connector integrity, as intermittent signal faults from a worn harness can sometimes corrupt controller memory states. Alongside this, verify the condition of the I/O module (DSQC 652) and its terminal connections, since signal interference from a failing cable can produce false digital input readings that are difficult to distinguish from field sensor faults.

Inspect the power supply unit (DSQC 661 PSU) output voltages under load — a marginal power supply accelerates insulation aging in internal cables and is frequently overlooked as a root cause of recurring harness failures. The teach pendant cable assembly (3HAC028357-001) and its strain relief points should also be examined, as pendant cables in high-cycle environments experience similar flexing fatigue to internal harnesses.

For facilities managing multiple robot cells, it is sound practice to maintain a bonded spare of the SMB (Serial Measurement Board, 3HAC14550-2), which processes encoder signals carried through the servo cable. A failed SMB can present symptoms identical to a cable fault, and having both components available eliminates diagnostic ambiguity during a production emergency. Similarly, the battery backup unit within the controller should be replaced on schedule — a depleted battery causes position data loss on power cycling, which compounds the recovery time following any cable-related shutdown.

Finally, review the condition of the internal cable duct clips and routing brackets inside the controller cabinet. Improper cable routing that allows contact with sharp edges or hot surfaces is the primary cause of premature insulation failure in OEM harnesses, and correcting routing at the time of cable replacement prevents repeat failures within the warranty period.

Strategic Replacement Solutions

The ABB 3HAC2530-1 is the correct OEM replacement for any IRC5 or S4C+ installation where the original internal servo and signal harness has reached end-of-life through age, mechanical wear, or thermal degradation. Because this cable is an original ABB component, it requires no modification to connector housings, no re-pinning, and no firmware adjustment — it is a direct dimensional and electrical substitute for the factory-installed assembly.

For facilities operating legacy S4C+ systems that are no longer supported under ABB’s standard service contracts, maintaining a stock of original spare cables is the most cost-effective strategy for extending system life without committing to a full controller upgrade. The 3HAC2530-1 allows maintenance teams to restore a faulted robot to production in the time it takes to swap the harness, rather than waiting weeks for a controller rebuild or a new robot commissioning cycle.

In multi-robot facilities, a single spare 3HAC2530-1 held in the maintenance store provides insurance across every IRC5 and S4C+ unit on the floor. Given the cable’s role in servo feedback integrity, its failure mode is typically abrupt rather than gradual — making on-hand availability, rather than just-in-time ordering, the operationally correct procurement posture. Facilities that have experienced a single unplanned robot outage attributable to an internal cable failure consistently report that the cost of the downtime event exceeds the cost of maintaining a bonded spare by a factor of ten or more.

All units dispatched from TOPNLMS are subject to pre-shipment continuity and insulation resistance testing. Each cable is packaged in anti-static protective wrapping with connector caps fitted to prevent transit damage to the mating surfaces. A 12-month warranty covers manufacturing defects and verified OEM specification conformance.

Support FAQ

Q1: Is the 3HAC2530-1 compatible with both IRC5 and S4C+ controllers?
Yes. The 3HAC2530-1 is the original ABB internal servo and signal cable assembly specified for both the IRC5 single-cabinet controller and the S4C+ platform. No adaptation or modification is required for either installation.

Q2: How should I verify compatibility before installation?
Cross-reference the part number printed on the existing cable label inside your controller cabinet against 3HAC2530-1. Additionally, confirm your controller model (IRC5 or S4C+) against the ABB robot documentation. If the existing cable shows the same ABB part number, the replacement is a direct fit.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects, connector integrity failures, and any deviation from OEM electrical specification under normal operating conditions. It does not cover damage resulting from incorrect installation, cable routing against sharp edges, or exposure to chemicals outside the specified operating environment.

Q4: What is the recommended spare parts inventory strategy for this cable?
For facilities operating one to five IRC5 or S4C+ robots, maintaining one bonded spare is the standard recommendation. Facilities with six or more robots, or those operating in high-cycle or high-temperature environments, should consider holding two units to ensure immediate availability during concurrent maintenance events.
