ABB 3HAC17282-1 Ruggedized Servo Drive for Harsh Environments

Product Overview

ABB 3HAC17282-1 Ruggedized Servo Drive for Harsh Environments

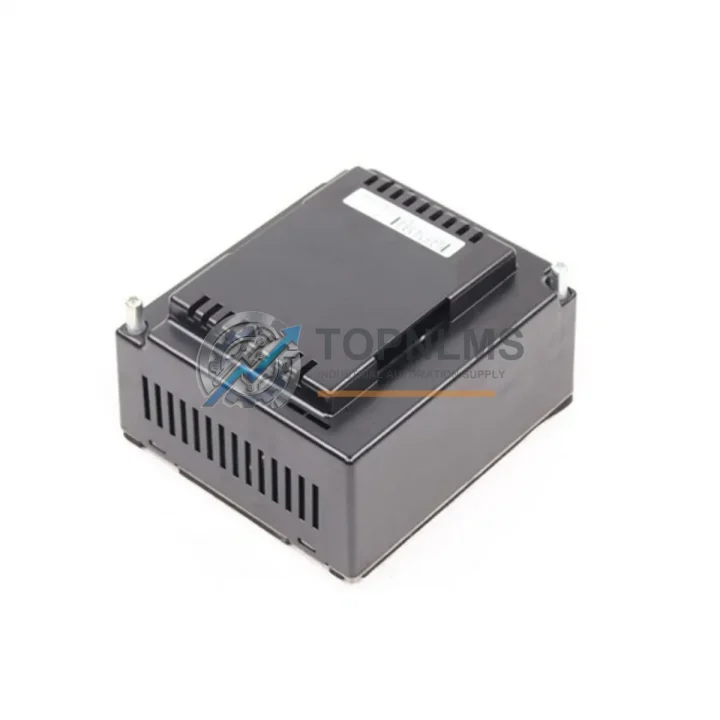

The ABB 3HAC17282-1 is a precision-engineered servo drive unit designed for the ABB IRB robot series, delivering exceptional axis control performance in the most demanding industrial environments. Built to ABB’s stringent robotics-grade standards, this module provides reliable motion control even under conditions of elevated temperature, high humidity, mechanical vibration, airborne particulates, and electromagnetic interference — making it a trusted backbone component in continuous-production and safety-critical automation systems worldwide.

Whether deployed in automotive body-in-white welding cells, foundry material handling, chemical processing lines, or heavy-press stamping operations, the 3HAC17282-1 maintains stable servo loop performance without compromise. Its robust internal architecture supports precise torque and velocity regulation across all six axes of the IRB manipulator family, ensuring that upstream PLC commands are faithfully translated into accurate mechanical motion at the end effector.

In modern industrial control architectures, the servo drive does not operate in isolation. The 3HAC17282-1 interfaces directly with the ABB IRC5 controller cabinet, receiving motion references from the main computer module (MCB) and coordinating with the axis computer (DSQC 668 / 3HAC025338-001) to execute synchronized multi-axis trajectories. The drive’s power section is fed by the ABB rectifier unit (3HAC024488-001), and its regenerative braking energy is managed through the capacitor bank module (3HAC14550-2), ensuring stable DC bus voltage even during rapid deceleration cycles on high-inertia loads.

Signal integrity is maintained through the ABB teach pendant interface unit (DSQC 679 / 3HAC028357-001) and the serial measurement board (SMB / 3HAC031670-001), which continuously monitors resolver feedback from each motor. The 3HAC17282-1 also works in concert with the I/O module (DSQC 652 / 3HAC025917-001) to process digital safety signals, enabling compliant integration with external safety PLCs, light curtains, and emergency-stop circuits in accordance with IEC 62061 and ISO 13849 functional safety requirements.

For facilities operating under strict electromagnetic compatibility requirements — such as power generation plants, steel mills, or offshore platforms — the 3HAC17282-1’s shielded design and filtered power inputs reduce susceptibility to conducted and radiated interference. This makes it suitable for installation in control cabinets located near variable-frequency drives (VFDs), high-current bus bars, or large transformer banks without degradation of servo performance.

Replacement and maintenance planning is straightforward: the 3HAC17282-1 is a direct drop-in replacement for the original ABB IRB series servo drive, requiring no firmware re-flashing or axis recalibration in most standard IRC5 configurations. This minimizes planned maintenance windows and reduces unplanned downtime risk — a critical consideration in 24/7 production environments such as automotive assembly, semiconductor fabrication, and food and beverage packaging lines.

Rugged Specifications Table

Comprehensive Protection Solutions

A resilient robot cell is only as reliable as its weakest component. The ABB 3HAC17282-1 servo drive is engineered to work seamlessly within a layered protection architecture. The IRC5 controller’s main computer board (DSQC 1000 / 3HAC036060-001) orchestrates high-level path planning and safety supervision, while the drive executes low-level current control with microsecond-level response times. The axis computer module (3HAC025338-001) bridges these two layers, translating trajectory data into real-time servo commands.

On the power side, the ABB capacitor module (3HAC14550-2) absorbs regenerative energy spikes during emergency stops, protecting both the drive and the upstream rectifier from voltage transients. The drive’s internal brake control output interfaces with the ABB motor brake unit to ensure safe axis holding when the robot is in a powered-off or safety-stop state — a mandatory requirement in collaborative and semi-collaborative robot installations.

For communication and diagnostics, the 3HAC17282-1 exchanges status data with the IRC5 panel board unit (DSQC 643 / 3HAC025784-001), enabling real-time fault logging and predictive maintenance alerts. The serial measurement board (SMB / 3HAC031670-001) provides continuous resolver feedback, allowing the system to detect encoder drift or motor bearing wear before a catastrophic failure occurs. This closed-loop health monitoring is particularly valuable in high-cycle applications such as spot welding, palletizing, and machine tending, where unplanned stops carry significant production cost.

Safety integration is further reinforced through the ABB safety module (DSQC 400 / 3HAC14265-1), which monitors dual-channel emergency stop circuits, safeguarding personnel and equipment in compliance with IEC 62061 SIL 2 and ISO 13849 PLd requirements. Together, these components form a comprehensive, defense-in-depth protection solution for any IRB-based automation cell.

Application in Critical Infrastructure

The ABB 3HAC17282-1 has established a proven track record across the world’s most demanding industrial sectors. In oil and gas upstream operations, IRB-series robots equipped with this drive unit perform pipe handling, valve actuation, and inspection tasks in Zone 2 classified areas, where consistent servo performance is non-negotiable. The drive’s tolerance for wide ambient temperature swings and its resistance to hydrocarbon-laden atmospheres make it a preferred choice for offshore platform automation.

In mining and mineral processing, where fine silica dust, high vibration from crushers and conveyors, and intermittent power quality are constant challenges, the 3HAC17282-1 maintains axis accuracy within the IRC5 cabinet’s sealed enclosure. Robotic ore sampling, drill-rod handling, and explosive-charge placement systems rely on this drive’s stability to meet both productivity and safety targets.

Power generation facilities — including coal-fired, gas turbine, and nuclear plants — deploy ABB IRB robots for boiler tube inspection, fuel rod handling, and turbine blade coating. In these environments, the 3HAC17282-1 must operate reliably in the presence of strong magnetic fields from large generators and transformers. Its EMC-hardened design ensures that servo loop integrity is maintained even in close proximity to high-voltage switchgear.

Water and wastewater treatment plants use IRB-series robots for chemical dosing, pipe welding, and UV-lamp replacement in environments characterized by high humidity, corrosive chlorine vapors, and continuous 24/7 operation. The 3HAC17282-1’s wide humidity tolerance and robust thermal management make it well-suited to these conditions. Similarly, in metallurgical plants — steel mills, aluminum smelters, and copper refineries — where ambient temperatures can exceed 45 °C and airborne metal particulates are pervasive, this servo drive continues to deliver the precise motion control required for ladle handling, billet transfer, and surface inspection robotics.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB 3HAC17282-1?
Every 3HAC17282-1 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide a replacement unit or full refund after technical verification — no lengthy RMA bureaucracy.

Q2: How is each unit tested before shipment?
All units undergo a multi-stage inspection protocol: visual inspection for physical damage, power-on functional test, servo loop response verification, and communication interface check. New units are verified against ABB factory specifications; refurbished units are additionally subjected to burn-in testing to screen for early-life failures. A test report is available upon request.

Q3: Is the 3HAC17282-1 compatible with my existing IRC5 cabinet without hardware modification?
Yes. The 3HAC17282-1 is a direct OEM-equivalent replacement for the original ABB servo drive unit in IRC5 single and dual cabinet configurations. No hardware modification, firmware update, or axis recalibration is required in standard installations. If your system runs a non-standard IRC5 variant or a customized software build, our technical team can advise on compatibility before shipment.

Q4: Can TOPNLMS guarantee long-term supply and support for this part?
Yes. TOPNLMS maintains dedicated stock of ABB IRB series spare parts, including the 3HAC17282-1 and its associated drive-system components. We support long-term procurement agreements for maintenance contractors, OEM integrators, and end-user facilities with multi-year service contracts. Our sourcing network ensures continuity of supply even for parts that ABB has transitioned to end-of-life status, providing a reliable alternative to costly robot replacement programs.
