ABB 3HAC14549-3 Original Industrial Spare IRC5 Compatible

Product Overview

ABB 3HAC14549-3 Original Industrial Spare IRC5 Compatible: System Stability & Industrial Spare Parts Maintenance Value

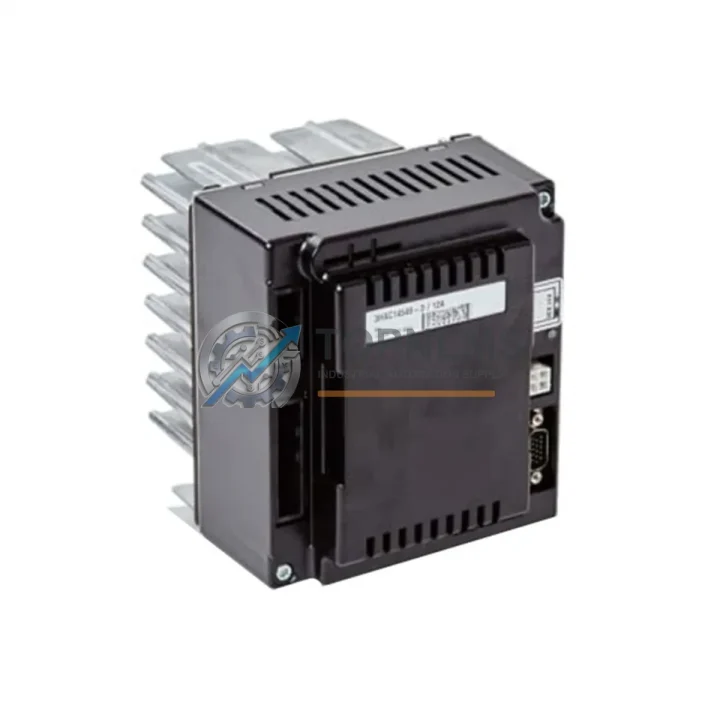

The ABB 3HAC14549-3 is an original rectifier module designed for the ABB IRC5 robot controller drive system. As a critical power conversion component within the IRC5 cabinet, this module converts AC mains input into the regulated DC bus voltage required by the drive units and servo amplifiers. In industrial environments where robotic automation lines operate continuously, the integrity of the rectifier module directly determines the stability of the entire motion control system. A failed or degraded rectifier module can trigger DC bus undervoltage faults, cause servo drive trips, and bring an entire production cell to an unplanned halt — making a verified original spare unit an essential element of any serious maintenance inventory.

For maintenance engineers managing ABB IRC5-based robot cells — whether in automotive body shops, foundry automation, palletizing lines, or general-purpose manufacturing — having a pre-tested 3HAC14549-3 on the shelf eliminates the most dangerous variable in unplanned downtime: lead time. When a rectifier module fails mid-shift, the difference between a two-hour swap and a two-week procurement delay can represent tens of thousands in lost production. Stocking this module as a critical spare is a straightforward risk mitigation decision.

Critical Technical Specs Table

Preventive Maintenance Strategy

A rectifier module replacement is rarely an isolated event. When the 3HAC14549-3 is removed from an IRC5 cabinet for inspection or replacement, experienced maintenance teams treat the intervention as an opportunity to audit the full drive compartment. The DC bus capacitors within the drive units — such as the ABB DSQC 374 or DSQC 508 drive units — age in parallel with the rectifier and should be evaluated for capacitance degradation at the same time. If the rectifier has failed due to sustained overcurrent, the associated fuse modules and circuit breakers in the incoming power section should be tested and replaced as a precaution.

The IRC5 cabinet’s cooling system is another critical checkpoint. The drive compartment fan units (such as the ABB 3HAC025466-001 fan assembly) force air across the rectifier and drive modules; a partially blocked or failing fan accelerates thermal stress on the rectifier. During a 3HAC14549-3 replacement, technicians should verify fan operation, clean air filters, and check that thermal paste on heat-sink contact surfaces has not dried out.

On the control side, the IRC5 main computer board (DSQC 1000 or DSQC 639 depending on controller generation) communicates drive status via the internal drive bus. After a rectifier replacement, it is good practice to verify that the DSQC 1000 or equivalent computer module is logging clean drive bus voltage readings and that no latent fault codes remain in the IRC5 event log. Similarly, the teach pendant cable and FlexPendant unit (3HAC028357-001) should be inspected for continuity, as power transients during a rectifier failure can occasionally stress the pendant interface circuitry.

For facilities running multiple IRC5 cells, a structured spare parts kit approach is strongly recommended. A practical IRC5 drive compartment spare kit typically includes: the 3HAC14549-3 rectifier module, one or two DSQC-series drive units matched to the robot model, a set of IRC5 fuse modules, the drive compartment fan assembly, and a spare DSQC 1000 main computer board. Maintaining this kit in a climate-controlled parts cabinet — with each item tagged with its installation date and last test date — transforms reactive breakdown maintenance into a controlled, predictable process. The carrying cost of these spares is negligible compared to the cost of a single unplanned production stoppage.

For older IRC5 installations approaching end-of-support lifecycle, the 3HAC14549-3 also plays a role in system life extension. ABB’s IRC5 platform has an extensive installed base, and many facilities are choosing to refurbish and extend the life of existing IRC5 controllers rather than invest in full IRC5e or OmniCore migration. In this context, sourcing original spare rectifier modules, drive units, and I/O modules (such as the DSQC 652 digital I/O board) is a cost-effective strategy that preserves the existing robot program library and operator familiarity while deferring capital expenditure.

Strategic Replacement Solutions

The 3HAC14549-3 is a direct original replacement for the rectifier module position within the IRC5 drive compartment. Unlike third-party or remanufactured alternatives, an original ABB unit ensures full compatibility with the IRC5 drive bus architecture, correct firmware handshake behavior with the DSQC 1000 main computer, and compliance with ABB’s published electrical specifications for the IRC5 platform.

For maintenance teams transitioning from older ABB S4C+ or S4Cplus controller platforms to IRC5, the rectifier module architecture differs significantly — the 3HAC14549-3 is IRC5-specific and is not interchangeable with S4C+ rectifier assemblies. This distinction is important when consolidating spare parts inventories across a mixed-generation robot fleet. Clearly labeling and segregating IRC5-specific spares from legacy S4C+ components prevents costly installation errors during emergency maintenance.

In terms of replacement workflow, the 3HAC14549-3 can typically be swapped by a qualified robot technician within two to four hours, including cabinet de-energization, DC bus discharge verification, module extraction, installation, and post-replacement drive bus commissioning. Having the replacement unit pre-tested and on-site reduces this window to its minimum. Our units are tested for DC output voltage, ripple, and thermal performance prior to shipment, and each unit ships with a test report and 12-month warranty documentation.

For facilities managing ABB robot fleets across multiple production lines, we recommend establishing a consignment or buffer stock arrangement for the 3HAC14549-3 and other high-criticality IRC5 spares. This approach — common in automotive Tier 1 and electronics manufacturing environments — ensures that replacement units are available within minutes of a fault diagnosis rather than days or weeks after a purchase order is raised.

Support FAQ

Q1: Is the 3HAC14549-3 compatible with all IRC5 controller variants?
The 3HAC14549-3 is designed for the ABB IRC5 platform, including the Single Cabinet Controller, Dual Cabinet Controller, and Panel Mounted Controller variants. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6640, etc.) depends on the IRC5 cabinet configuration. Please confirm your cabinet type and robot model when ordering to ensure the correct rectifier module variant is supplied.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested for electrical performance prior to dispatch. Warranty claims are supported with a replacement or refund process — contact [email protected] with your order number and fault description.

Q3: How is the unit tested before shipment, and what documentation is provided?
Each 3HAC14549-3 unit undergoes functional electrical testing covering DC output voltage, ripple measurement, and thermal performance verification. A test record is included with shipment. Units are packaged in anti-static, shock-protected packaging suitable for international freight. Tracking information and commercial invoice documentation are provided for all orders.

Q4: What is the recommended inventory strategy for IRC5 rectifier modules in a multi-robot facility?
For facilities operating three or more IRC5 controllers, maintaining a minimum of one 3HAC14549-3 per five controllers as a buffer stock is a widely adopted practice in automotive and heavy manufacturing environments. Given the module’s role as a single point of failure for the entire drive bus, the cost of carrying one spare unit is typically recovered within the first prevented downtime event. For facilities with 24/7 production schedules, a two-unit buffer is recommended to cover simultaneous failures or extended repair cycles.
