ABB 3HAC14209-1 3HAC12322-1 Original Industrial Spare IRB Series Compatible

Product Overview

ABB 3HAC14209-1 3HAC12322-1 Original Industrial Spare IRB Series Compatible: System Stability & Industrial Spare Maintenance Value

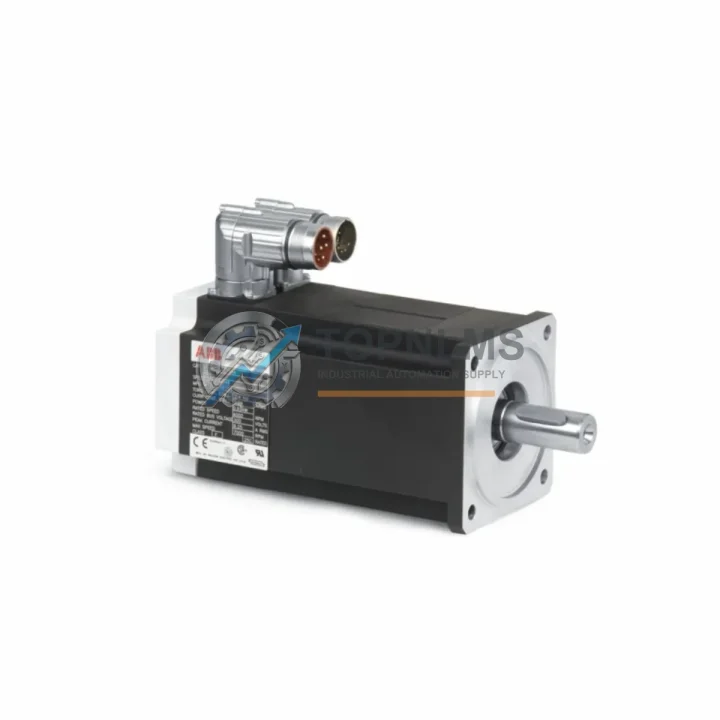

The ABB 3HAC14209-1 (paired axis motor assembly 3HAC12322-1) is a factory-original AC servo motor with integrated pinion gear (3HAC14724-1), engineered specifically for ABB IRB-series industrial robots. In high-cycle manufacturing environments — automotive body shops, foundry tending cells, arc welding lines, and palletizing stations — axis drive integrity is the single most critical factor in maintaining robot uptime. A degraded or failed axis motor translates directly into unplanned downtime, production loss, and costly emergency procurement. Stocking a verified original replacement unit of the 3HAC14209-1 eliminates that risk entirely.

TOPNLMS sources, inspects, and ships this unit with full functional verification. Every unit undergoes pre-shipment electrical testing covering winding resistance, insulation integrity, encoder signal output, and pinion gear mesh tolerance before dispatch. A 12-month warranty is included on all units, covering manufacturing defects and functional failure under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

When a robot axis motor such as the 3HAC14209-1 is flagged for replacement during a scheduled overhaul or after an unplanned fault, experienced maintenance engineers know that the motor itself is rarely the only component that has experienced wear. A comprehensive inspection of the surrounding drive system dramatically reduces the probability of a repeat shutdown within the same maintenance window.

Begin by auditing the SMB (Serial Measurement Board) — typically the 3HAC14363-1 or equivalent for IRB 6400/6600 platforms — as resolver signal degradation often mimics axis motor faults and can cause misdiagnosis. Simultaneously, inspect the axis computer (DSQC 346 / 3HAC025338-001) for firmware integrity and communication errors logged against the affected axis. If the robot has accumulated more than 20,000 operating hours, it is prudent to also evaluate the drive unit modules (DSQC 601 / DSQC 602) that power the axis in question, as capacitor aging in these units can cause intermittent torque faults that accelerate motor wear.

The motor power cable harness (3HAC031683-001 or axis-specific equivalent) should be inspected for insulation cracking, connector pin corrosion, and continuity — particularly at the robot wrist and base cable entry points where flex fatigue is highest. Alongside this, verify the resolver cable for shielding integrity, as ground loops introduced by damaged shielding are a common source of encoder count errors that trigger false axis faults.

For robots operating in foundry or high-particulate environments, the axis gearbox (3HAC040869-001 or series equivalent) should be inspected for lubricant contamination and backlash measurement before the new motor is installed. Installing a new 3HAC14209-1 onto a worn gearbox will accelerate pinion wear and shorten the replacement motor’s service life. If the gearbox output bearing shows play, address it concurrently.

Finally, review the IRC5 controller cabinet internal condition: check the main computer (DSQC 639) battery backup, inspect I/O modules (DSQC 652 / DSQC 328) for relay contact wear if the robot interfaces with external safety circuits, and verify that the teach pendant (FlexPendant 3HAC028357-001) cable is undamaged. A complete cabinet inspection during a motor replacement outage maximizes the value of the downtime and prevents secondary failures from surfacing within weeks of the repair.

Strategic Replacement Solutions

The ABB IRB series represents one of the most widely deployed robot platforms in global manufacturing, with installed base units frequently operating 15–25 years beyond their original commissioning date. OEM support lifecycles for legacy IRB models have in many cases ended, making verified original spare parts from specialist distributors the only viable path to system continuity.

The 3HAC14209-1 is a direct OEM replacement that requires no parameter re-tuning in the IRC5 or S4C+ controller beyond the standard axis calibration procedure. This means maintenance teams can execute the replacement within a single shift, restore full robot functionality, and return the line to production without software re-commissioning delays. Compared to sourcing a refurbished robot or retrofitting a third-party motor — both of which require extensive integration work — a genuine ABB axis motor replacement is the lowest-risk, fastest-return maintenance decision available.

For facilities managing fleets of 10 or more IRB robots, establishing a minimum stock level of one 3HAC14209-1 unit per robot model variant reduces mean time to repair (MTTR) from days to hours. Combined with a documented axis inspection schedule tied to robot operating hour counters, this approach forms the foundation of a mature predictive maintenance program that measurably reduces annual downtime costs.

Support FAQ

Q1: Is the 3HAC14209-1 compatible with both S4C+ and IRC5 controller platforms?
Yes. The 3HAC14209-1 axis motor assembly is mechanically and electrically compatible with ABB IRB robots controlled by both the S4C+ and IRC5 platforms. After installation, standard axis calibration using the FlexPendant is required. No additional hardware modifications are needed.

Q2: What pre-shipment testing does TOPNLMS perform on this unit?
Every unit undergoes winding resistance measurement, insulation resistance testing (Megger test), encoder/resolver signal verification, and pinion gear dimensional inspection before dispatch. A test report is available upon request. Units that do not meet ABB OEM specifications are not shipped.

Q3: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions from the date of shipment. To initiate a claim, contact [email protected] with your order number, fault description, and any available error logs. TOPNLMS will arrange replacement or repair at no additional cost for valid warranty claims.

Q4: How should I verify compatibility before ordering if I am unsure of my exact IRB model variant?
Provide your robot’s full model designation (e.g., IRB 6400R M99, IRB 2400/16) and the existing motor part number visible on the motor nameplate. TOPNLMS technical support can confirm compatibility and advise on any variant-specific differences before your order is placed. Contact us at [email protected] or +86 18359293191.
