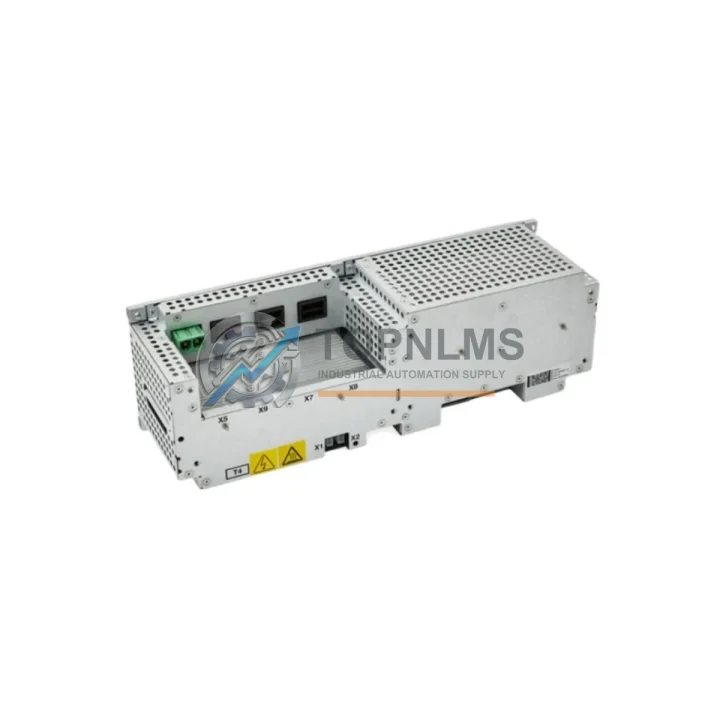

ABB 3HAC063913-001 DSQC3041 Ruggedized Axis Drive Module

Product Overview

ABB 3HAC063913-001 DSQC3041 Ruggedized Axis Drive Module: Industrial Resilience for Harsh Environments

The ABB 3HAC063913-001 DSQC3041 is a precision-engineered Axis Drive Module designed for the ABB IRC5 robot controller series, delivering uncompromising performance in the most demanding industrial environments. Whether deployed on a continuous automotive welding line, a high-vibration metal stamping cell, or a dust-laden foundry floor, this module is built to sustain reliable axis motion control where failure is not an option.

As a core component of the ABB IRC5 drive system, the DSQC3041 manages power conversion and motion feedback for individual robot axes, interfacing directly with the IRC5 cabinet’s drive unit stack. Its ruggedized design addresses the full spectrum of industrial hazards — from electromagnetic interference (EMI) generated by nearby variable frequency drives and servo amplifiers, to thermal cycling in environments where ambient temperatures fluctuate between cold start-up and sustained high-load operation.

In heavy industry, the cost of unplanned downtime far exceeds the cost of a quality spare part. Procurement engineers and maintenance managers sourcing replacement modules for ABB IRC5 systems consistently prioritize three factors: verified compatibility, documented test results, and guaranteed lead time. The ABB 3HAC063913-001 DSQC3041 stocked at TOPNLMS meets all three criteria — every unit undergoes functional verification before dispatch, and our inventory is maintained to support same-week fulfillment for critical production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3HAC063913-001 DSQC3041 does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical IRC5 cabinet, it works in concert with the ABB DSQC662 fieldbus adapter module, which manages DeviceNet or Profibus communication between the robot controller and external PLC systems such as the Siemens S7-300 or S7-1500 series. The axis drive module receives motion commands routed through the ABB DSQC639 main computer board, which coordinates all six axes and safety supervision functions.

On the power supply side, the IRC5 cabinet relies on the ABB DSQC609 power supply unit to deliver stable DC bus voltage to the drive stack. Any instability in this supply — caused by input voltage fluctuation common in heavy industrial facilities — can propagate to the axis drive modules. Pairing a replacement DSQC3041 with a verified DSQC609 ensures the entire power chain is restored to specification.

For safety-critical applications, the IRC5 system integrates with the ABB DSQC643 safety module, which enforces emergency stop, safeguard stop, and speed monitoring functions in compliance with ISO 10218-1. When replacing the axis drive module in a safety-rated cell, it is essential to verify that the safety module’s configuration remains intact and that the drive module’s enable chain is correctly re-established after installation.

In multi-robot cells or production lines where robots communicate with Siemens ET 200SP I/O modules or Allen-Bradley 1756 ControlLogix I/O via EtherNet/IP or PROFINET, the axis drive module’s reliable operation is foundational to deterministic cycle times. A failed or degraded drive module introduces position errors that cascade into quality defects and line stoppages. Stocking the ABB 3HAC063913-001 as a critical spare eliminates this risk.

Additional components commonly maintained alongside the DSQC3041 include the ABB DSQC668 I/O module for digital signal interfacing, the ABB DSQC679 teach pendant (FlexPendant) for on-site diagnostics, and the ABB 3HAC044168-001 SMB battery unit that preserves axis calibration data during power-off cycles. Maintaining these components as a coordinated spare parts kit significantly reduces mean time to repair (MTTR) in high-availability production environments.

Application in Critical Infrastructure

The ABB IRC5 DSQC3041 Axis Drive Module sees deployment across the full spectrum of critical industrial infrastructure. In automotive body-in-white welding facilities, IRC5-controlled robots perform continuous resistance spot welding at cycle rates exceeding 400 welds per hour. The axis drive module sustains precise torque and velocity control across all six joints, maintaining weld quality within tight process windows even as the surrounding environment reaches elevated temperatures from welding spatter and heat accumulation.

In oil and gas upstream processing facilities, ABB robots equipped with IRC5 controllers handle pipe inspection, valve actuation, and hazardous material transfer in Zone 2 classified areas. While the IRC5 cabinet itself is located outside the hazardous zone, the reliability of the axis drive module is critical to maintaining safe, repeatable motion sequences that protect personnel and infrastructure.

In mining and mineral processing operations, robots perform ore sampling, conveyor loading, and equipment inspection in environments characterized by extreme dust concentrations, high vibration from crushing equipment, and wide temperature swings between day and night shifts. The DSQC3041’s robust design tolerates these conditions when the IRC5 cabinet is properly sealed and climate-controlled.

In power generation and electrical utilities, ABB IRC5 robots are deployed for transformer winding, switchgear assembly, and substation maintenance tasks. The axis drive module’s EMI resilience is particularly valuable in these environments, where high-voltage switching events generate significant electromagnetic transients that can disrupt less robust drive electronics.

In water and wastewater treatment plants, robots handle chemical dosing, pipe inspection, and sludge management in high-humidity, corrosive atmospheres. The IRC5 system’s sealed cabinet design, combined with a properly functioning DSQC3041, ensures continuous operation through seasonal temperature and humidity variations without requiring frequent maintenance interventions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC063913-001 DSQC3041?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified by ABB for the IRC5 drive system. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental parameters. Warranty claims are processed with priority — contact [email protected] with your order reference and a description of the fault.

Q2: How is each unit tested before shipment?
Every ABB DSQC3041 unit undergoes a multi-point functional verification process prior to dispatch. This includes power-on self-test, communication interface verification, and where applicable, dynamic load testing to confirm drive output integrity. Units that do not pass all test criteria are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is this module a direct drop-in replacement for the original ABB 3HAC063913-001?
Yes. The 3HAC063913-001 DSQC3041 is a direct OEM-equivalent replacement for the original unit in all ABB IRC5 controller variants, including Single Cabinet, Dual Cabinet, and Panel Mounted configurations. No firmware modification or hardware adaptation is required. Standard ABB IRC5 commissioning procedures apply after installation, including axis calibration verification via the FlexPendant.

Q4: Can TOPNLMS support long-term or recurring supply of this module?
Yes. TOPNLMS maintains standing inventory of high-demand ABB IRC5 spare parts, including the DSQC3041, to support maintenance contracts, scheduled overhauls, and emergency replacement programs. Volume pricing and priority allocation are available for customers with recurring procurement needs. Contact our industrial supply team at [email protected] or +86 18359293191 to discuss a supply agreement tailored to your production schedule.
