ABB 3HAC058127-010 Replacement for IRB6650S Series

Product Overview

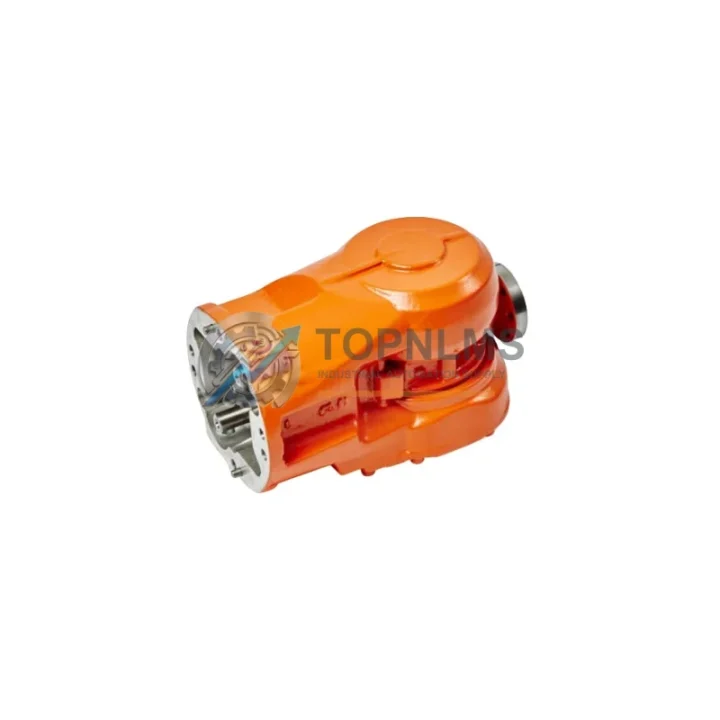

ABB 3HAC058127-010 Replacement for IRB6650S Series: Seamless Transition from Legacy Wrist Units

When your ABB IRB6650S robotic arm experiences wrist unit failure or your existing 3HAC058127-009 reaches end-of-service life, unplanned downtime can cascade across your entire production line. The ABB 3HAC058127-010 is the current-generation wrist unit engineered as a direct mechanical and electrical replacement for the IRB6650S series, enabling plant engineers and maintenance teams to execute a smooth, validated swap with minimal disruption to ongoing operations.

This unit is sourced from verified supply channels, 100% functionally tested prior to dispatch, and ships from our Xiamen warehouse with a 12-month replacement warranty. Whether you are managing a scheduled overhaul, responding to an emergency breakdown, or building a critical-spares inventory, the 3HAC058127-010 is stocked and ready to ship within 1–3 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A wrist unit replacement on the IRB6650S rarely occurs in isolation. In practice, maintenance engineers conducting this swap often simultaneously inspect or replace adjacent components to restore the robot to full operational specification. The ABB 3HAC058127-010 integrates directly with the existing IRB6650S upper arm and axis 4 gearbox assembly, so no structural modifications to the robot body are required.

For teams upgrading from an older IRC5 controller cabinet to the newer OmniCore C90XT controller, the 3HAC058127-010 wrist unit is fully compatible with both platforms, eliminating the need to sequence the wrist replacement around a controller migration. The ABB DSQC1000 main computer board and associated DSQC688 axis computer within the IRC5 cabinet continue to communicate with the replacement wrist unit without firmware changes, provided the robot system software (RobotWare) is at a supported revision.

During the physical swap, technicians should inspect the axis 5 and axis 6 motor units (typically 3HAC17484-1 and 3HAC14179-1 respectively) for bearing wear, as these motors drive through the wrist gearbox and are common co-failure components on high-cycle IRB6650S installations. Replacing the wrist unit while leaving a marginal motor in place can shorten the service interval of the new unit significantly.

The SMB (Serial Measurement Board) — part number 3HAC044168-001 — mounted within the upper arm should also be verified for connector integrity during the wrist swap, as the SMB harness routes through the wrist assembly and is susceptible to chafing on robots with high rotational duty cycles. Similarly, the axis 5/6 brake release unit and the wrist harness cable assembly (3HAC058130-001) are recommended inspection points that can be addressed during the same maintenance window to minimize future downtime events.

For facilities running coordinated multi-robot cells, maintaining a stocked 3HAC058127-010 as a critical spare — alongside a spare IRB6650S axis 1 gearbox and a set of axis 2/3 motor assemblies — represents best practice for OEE (Overall Equipment Effectiveness) protection in high-throughput automotive, foundry, and heavy-part-handling environments.

Retrofit Guidance FAQ

Q: Can I install the 3HAC058127-010 without modifying my existing wiring harness?
A: Yes. The 3HAC058127-010 uses the same connector interface as the 3HAC058127-009 and 3HAC063644-003. No re-pinning or harness extension is required. Reconnect the existing axis 5/6 motor cables and SMB harness to the corresponding connectors on the new unit.

Q: Do I need to update RobotWare after the swap?
A: No RobotWare update is mandated solely by this part replacement. However, ABB recommends running RobotWare 6.10 or later on IRC5 systems for optimal axis calibration accuracy. Verify your current revision in the FlexPendant system information menu before commencing the swap.

Q: How do I recalibrate axis 5 and axis 6 after installation?
A: Use the standard ABB fine calibration routine via RobotStudio or the FlexPendant. The calibration marks on the IRB6650S upper arm and wrist are physical reference points — align the robot to the calibration position, then execute the axis 5 and axis 6 calibration sequence. No special tooling beyond the standard calibration pin set is required.

Q: Is this unit compatible with OmniCore-based IRB6650S configurations?
A: Yes. ABB’s OmniCore platform maintains backward mechanical and electrical compatibility with IRB6650S wrist assemblies. The 3HAC058127-010 operates correctly under OmniCore C90XT controller management without hardware adaptation.

Q: What is the typical installation time for a trained technician?
A: A qualified ABB-certified technician familiar with the IRB6650S can typically complete the mechanical swap, harness reconnection, and axis calibration within 4–8 hours, depending on cell accessibility and the condition of the upper arm assembly.

Q: Can this unit replace 3HAC063644-003 and 3HAC055547-003 as well?
A: Yes. The 3HAC058127-010 is the current superseding part number for 3HAC058127-009, 3HAC063644-003, and 3HAC055547-003 on the IRB6650S platform. All three legacy references are direct replacements.

Warranty Assurance

Every ABB 3HAC058127-010 unit dispatched from TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection covering mechanical integrity, connector condition, gear mesh verification, and dimensional conformance to ABB OEM specifications.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Replacement units are dispatched on a priority basis to minimize your production impact. We support warranty claims with photographic evidence review and, where applicable, coordinate with our logistics partners for expedited return freight.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with every shipment. Export packaging is reinforced for international air and sea freight to ensure the unit arrives in field-ready condition.

Contact our technical sales team for bulk pricing, consignment stock arrangements, or urgent same-day quotation requests.
