ABB 3HAC057546-003 Replacement/Upgrade Solution for IRC5: Seamless Transition from Legacy Axis Drive Systems

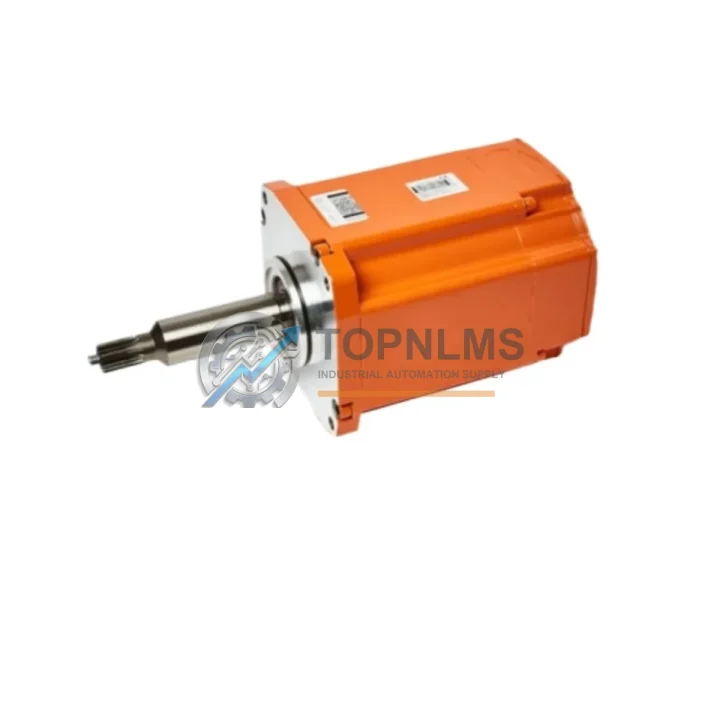

The ABB 3HAC057546-003 is a precision servo motor assembly with integrated pinion, purpose-built for the IRC5 robot controller platform. As ABB’s IRC5 ecosystem continues to evolve and legacy axis drive components reach end-of-life, facilities running older IRC5 cabinets — or migrating from the earlier S4C+ controller generation — face increasing pressure to source reliable, drop-in compatible replacements that minimize reprogramming, rewiring, and downtime.

TOPNLMS supplies the 3HAC057546-003 as a verified replacement and upgrade solution for industrial robot integrators, OEM maintenance teams, and automation engineers managing multi-axis ABB robot cells. Whether you are replacing a worn axis-3 or axis-6 drive motor on a running production line, or retrofitting an aging IRC5 cabinet with refurbished-spec components, this assembly is engineered to restore full motion performance without requiring mechanical redesign or controller reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRC5 axis motor replacement rarely involves a single component in isolation. In practice, engineers replacing the 3HAC057546-003 are simultaneously evaluating the condition of adjacent drive and control components within the same cabinet. The DSQC 661 and DSQC 662 axis drive units are the most common companion components — if the motor has failed due to sustained overload or thermal stress, the drive unit should be inspected and potentially replaced in the same service window to prevent repeat failures.

The DSQC 1000 main computer unit and DSQC 2000 drive system are increasingly relevant for facilities upgrading from M2004-era IRC5 cabinets to the current M2016 or later hardware baseline. These upgrades often proceed in parallel with axis motor replacement, since the newer drive architecture offers improved torque ripple compensation and encoder diagnostics that extend motor service life.

For wiring integrity during motor swap, the 3HAC031683-001 motor cable harness and associated SMB (Serial Measurement Board) cable — typically the 3HAC031670-001 — should be inspected and replaced if the insulation shows heat damage or connector wear. The SMB board itself, often the DSQC 233 or its successor, handles resolver signal conditioning and is a common failure point in high-cycle applications.

If the retrofit scope extends to the controller’s power distribution, the DSQC 609 power supply unit and the 3HAC025338-001 transformer assembly are worth evaluating — particularly in older IRC5 cabinets where capacitor aging in the power section can cause intermittent axis faults that are misdiagnosed as motor failures. Replacing the axis motor without addressing a degraded power supply can result in premature re-failure of the new unit.

For facilities running DeviceNet or PROFIBUS-based cell communication, the DSQC 651 (DeviceNet) or DSQC 652 (PROFIBUS) fieldbus adapter boards should be confirmed as compatible with the target IRC5 firmware version before commissioning the replacement motor. Communication protocol mismatches between the robot controller and the upstream PLC — whether a Siemens S7-300, Allen-Bradley ControlLogix, or Mitsubishi Q-series — are a leading cause of post-replacement commissioning delays that have nothing to do with the motor itself.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC057546-003 require recalibration of the robot?
A: Yes. Any axis motor replacement on an ABB IRC5 robot requires a fine calibration procedure using the calibration pendulum or CalibWare software. The robot’s revolution counter must be updated after the motor is installed and before the axis is moved under program control. This is a standard IRC5 commissioning step and does not require ABB factory involvement.

Q: Is the wiring harness compatible with my existing IRC5 cabinet?
A: The 3HAC057546-003 uses the standard ABB SMB connector and motor power connector pinout used across the IRC5 platform. No wiring modifications are required for direct replacement. If your cabinet uses an older S4C+ harness, a transition cable adapter will be needed — contact our technical team for harness compatibility confirmation before ordering.

Q: Can this motor be used with a third-party drive unit?
A: The 3HAC057546-003 is designed for use with ABB IRC5-native drive units (DSQC 661, DSQC 662, DSQC 2000 series). Use with non-ABB drive units is not recommended and may void the warranty. For cross-brand retrofit applications, consult your system integrator for motor sizing and encoder interface compatibility.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from our Xiamen warehouse. Standard international shipping via DHL/FedEx Express typically delivers within 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All units are tested and packed with anti-static protection before shipment.

Q: How do I verify the motor is functioning correctly after installation?
A: After mechanical installation and wiring, perform a revolution counter update via the IRC5 FlexPendant. Run the axis through its full range of motion at reduced speed (25%) and monitor for axis fault codes on the teach pendant. Confirm resolver feedback is stable using the ABB RobotStudio diagnostic tools or the IRC5 event log before returning the robot to production speed.

Warranty Assurance

Every ABB 3HAC057546-003 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering electrical continuity, resolver signal integrity, pinion mesh condition, and connector seating. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation, subject to fault verification. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our support team to arrange advance replacement under the warranty program.

Our after-sales response covers technical commissioning questions, wiring compatibility queries, and firmware version cross-referencing at no additional charge during the warranty period. We maintain stock of the most common IRC5 axis motor assemblies and companion drive components to support rapid replacement cycles for facilities with high-uptime requirements.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration for customs clearance. All units are shipped with ESD-safe packaging and a printed installation reference card.
