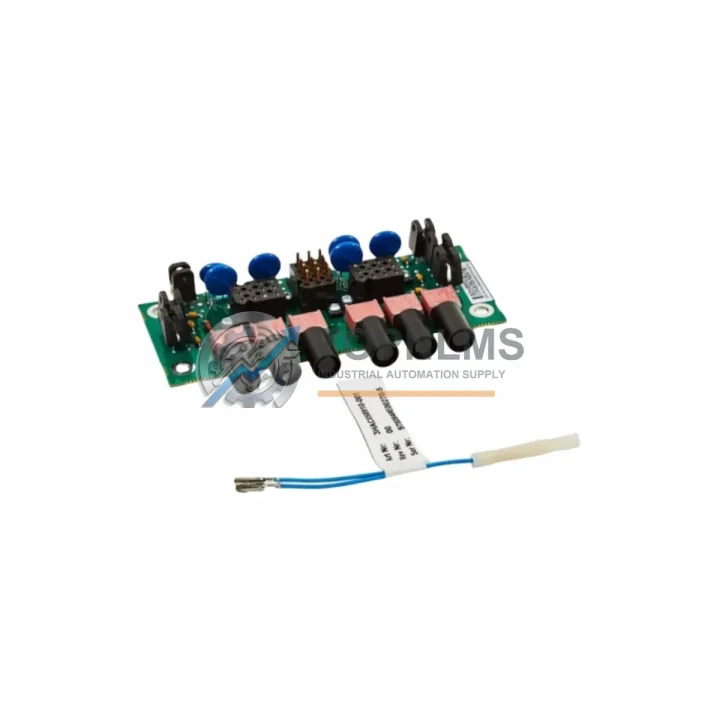

ABB 3HAC046642-001 DSQC1052 Ruggedized Backup Module for Harsh Environments

Product Overview

ABB 3HAC046642-001 DSQC1052 Ruggedized Backup Module for Harsh Environments

The ABB 3HAC046642-001 DSQC1052 is a factory-grade backup and restore board engineered for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control architectures in global manufacturing. Designed to operate continuously in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference, this module delivers the data integrity and system resilience that mission-critical automation lines demand.

In continuous production environments — from automotive body-in-white welding cells to food-grade packaging lines — controller downtime is measured in thousands of dollars per minute. The DSQC1052 board provides a dedicated hardware pathway for system configuration backup and rapid restoration, ensuring that a controller can be returned to a known-good operational state without manual re-programming. This is not a convenience feature; in safety-rated robot cells operating under ISO 10218 or IEC 62061 frameworks, the ability to restore a verified controller configuration is a compliance requirement.

The board interfaces directly with the IRC5 main computer unit and communicates over the internal ABB RAPID system bus. It is fully compatible with the IRC5 single-cabinet controller, the IRC5 panel-mounted controller, and the IRC5 Compact variant. When paired with the ABB DSQC1000 main computer board and the ABB DSQC662 fieldbus adapter, the DSQC1052 forms part of a complete, validated control architecture that supports PROFIBUS, DeviceNet, and EtherNet/IP communication protocols.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC1052 does not operate in isolation — it is one node in a tightly integrated control architecture. In a fully configured IRC5 cabinet, the backup board works alongside the ABB DSQC1000 main computer unit, which handles RAPID program execution and axis control. The ABB DSQC609 power distribution board provides regulated DC supply rails to all logic boards, including the DSQC1052, ensuring that backup operations are never interrupted by transient voltage events on the plant floor.

For installations requiring fieldbus connectivity, the ABB DSQC378B DeviceNet board and the ABB DSQC688 EtherNet/IP adapter extend the IRC5 controller’s communication reach to PLCs, SCADA systems, and distributed I/O racks. In facilities running Siemens S7-300 or S7-400 PLCs as supervisory controllers, the IRC5 robot cell typically receives start/stop commands and safety interlocks via PROFIBUS DP — a protocol supported through the ABB DSQC667 PROFIBUS adapter board. The DSQC1052 ensures that the robot’s RAPID programs, tool data, and safety configuration can be backed up and restored without disrupting these fieldbus relationships.

Safety-rated installations additionally rely on the ABB DSQC400 safety board or its successor modules to enforce emergency stop circuits, safeguarding zones, and speed monitoring functions. When a safety board requires replacement, having a verified backup of the controller configuration — stored via the DSQC1052 — allows the safety parameters to be restored to their certified state, avoiding the need for a full safety re-validation. This is a significant operational advantage in facilities operating under IEC 61508 SIL 2 or SIL 3 requirements.

For power conditioning upstream of the IRC5 cabinet, industrial UPS units and ABB-compatible 24VDC power supplies protect the controller from grid disturbances. Downstream, the ABB DSQC374 I/O board and DSQC652 digital I/O module handle discrete signal exchange with conveyors, grippers, vision systems, and end-of-arm tooling. All of these components benefit from the system-level resilience that the DSQC1052 backup board provides — because a single corrupted configuration file can take an entire robot cell offline.

Application in Critical Infrastructure

The ABB IRC5 platform — and by extension the DSQC1052 backup board — is deployed across some of the most demanding industrial environments on earth. In automotive manufacturing, IRC5-controlled robots perform continuous spot welding, seam sealing, and material handling operations across three-shift production schedules with minimal planned downtime. The ability to restore a robot controller to its last verified configuration in under 30 minutes — rather than spending hours re-teaching waypoints — is a direct competitive advantage for plant maintenance teams.

In oil and gas processing facilities, robots equipped with IRC5 controllers perform inspection, valve actuation, and material transfer tasks in zones classified under ATEX or IECEx hazardous area standards. While the IRC5 cabinet itself is typically located outside the hazardous zone, the control electronics must withstand elevated ambient temperatures, corrosive atmospheres, and continuous vibration from rotating machinery. The DSQC1052’s robust PCB construction and conformal coating options make it suitable for these demanding thermal and chemical environments.

In metal processing and foundry operations — including steel rolling mills, aluminum smelters, and die-casting facilities — robot controllers are exposed to radiant heat, metal dust, and high-frequency electromagnetic interference from induction furnaces and arc welders. The IRC5 controller’s shielded cabinet design, combined with the DSQC1052’s EMC-hardened layout, maintains data integrity even in these electromagnetically hostile environments. Backup and restore capability is especially critical here, as re-programming a robot in a hot foundry environment is both time-consuming and hazardous.

In water treatment and utilities infrastructure, robots and automated systems running on ABB IRC5 platforms manage chemical dosing, pump control, and pipeline inspection. These facilities operate on 24/7 schedules with strict regulatory uptime requirements. The DSQC1052 provides the configuration backup infrastructure that allows maintenance teams to swap a failed controller board and restore full operation within a single maintenance window, maintaining compliance with environmental and safety regulations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC046642-001 DSQC1052?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. Each board undergoes a documented functional test prior to shipment, and test records are available upon request for quality-audited procurement processes.

Q2: How is each unit tested before shipment?
Every ABB DSQC1052 board is subjected to a pre-shipment functional verification that includes power-on self-test, communication interface check, and visual inspection for component integrity and solder joint quality. Units that do not pass all test criteria are quarantined and not shipped. This process ensures that the board you receive is operationally ready for installation in your IRC5 controller.

Q3: Is this board compatible with all IRC5 controller variants and software versions?
The 3HAC046642-001 DSQC1052 is designed for the ABB IRC5 controller platform and is compatible with IRC5 Single Cabinet, Panel Mount, and Compact variants. It is also cross-referenced with alternate part number 3HAC065021-001. Compatibility with specific RobotWare software versions should be verified against your controller’s hardware revision. Our technical team can assist with compatibility confirmation prior to purchase — contact us at [email protected].

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains stock of ABB IRC5 series spare parts including DSQC-series boards to support ongoing maintenance programs, planned shutdowns, and emergency replacement requirements. We can accommodate blanket purchase orders, consignment stock arrangements, and priority fulfillment agreements for facilities with high-availability requirements. Contact our team to discuss a supply agreement tailored to your maintenance schedule.
