ABB 3HAC042840-001 Original Industrial Spare IRB Series Compatible

Product Overview

ABB 3HAC042840-001 Original Industrial Spare: System Stability & Maintenance Value for IRB 4600 / IRB 6700 Robots

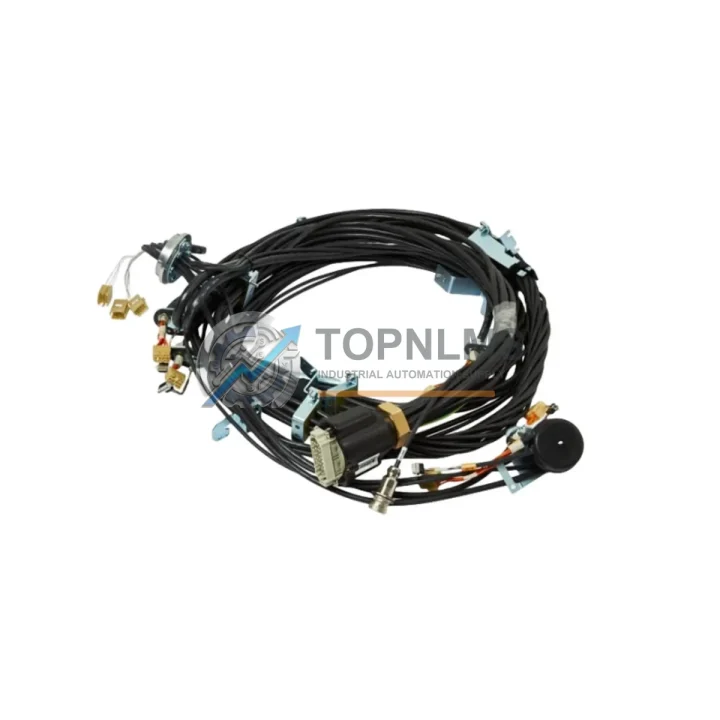

In high-throughput manufacturing environments, the internal cable harness is one of the most mechanically stressed components in any articulated robot arm. The ABB 3HAC042840-001 is the original internal cable harness assembly covering Axis 1 through Axis 6 for the ABB IRB 4600 and ABB IRB 6700 series industrial robots. Sourced directly from ABB’s authorized supply chain and manufactured in Germany, this harness is engineered to meet the precise routing, shielding, and flex-cycle specifications of the original robot design — ensuring signal integrity, power continuity, and long-term mechanical reliability across demanding production cycles.

Whether your facility runs automotive body-in-white welding, material handling, palletizing, or machine tending, the IRB 4600 and IRB 6700 platforms are workhorses that cannot afford unplanned downtime. A degraded or failed cable harness is one of the leading causes of axis faults, encoder signal loss, and servo drive alarms in these robot families. Stocking the 3HAC042840-001 as a certified spare ensures your maintenance team can execute a rapid, like-for-like replacement without waiting weeks for procurement — keeping your line running and your OEE targets intact.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced robot maintenance engineers know that a cable harness failure rarely occurs in isolation. The internal harness of the IRB 4600 and IRB 6700 runs in close proximity to — and interacts electrically with — a range of other critical subsystems. When scheduling a planned harness replacement or responding to an axis fault, a thorough inspection and proactive replacement of adjacent components dramatically reduces the risk of repeat downtime within the same maintenance window.

During a harness replacement service, technicians should simultaneously inspect the ABB DSQC 661 or DSQC 679 main computer boards for firmware integrity and connector wear, as harness degradation can introduce transient voltage spikes that stress the controller backplane. The IRC5 controller cabinet power distribution module and its associated DSQC 608 power supply unit should be checked for output voltage stability — a marginal power supply accelerates insulation breakdown in signal cables. Inspect all axis servo drive modules (such as the DSQC 601 drive unit) for fault history logs that may indicate prior harness-induced encoder errors.

The SMB (Serial Measurement Board) — typically the 3HAC14550-2 or equivalent for the IRB 6700 — is directly connected to the harness encoder circuits and should be tested for calibration drift whenever the harness is disturbed. Simultaneously, verify the condition of the axis brake release unit and the motor connectors at each axis, as connector fretting corrosion is a common co-failure mode. The teach pendant cable assembly (FlexPendant cable) should also be inspected for jacket cracking, particularly in high-cycle environments where the pendant is frequently repositioned.

For facilities managing multiple IRB 4600 or IRB 6700 cells, a structured spare parts inventory should include the 3HAC042840-001 harness alongside the axis 1–3 motor units, a set of axis gearbox oil seals, and at least one spare IRC5 I/O module (such as the DSQC 652 digital I/O board) to cover the most common field-replaceable units. Maintaining this consolidated spare kit reduces mean time to repair (MTTR) from days to hours and supports a robust preventive maintenance schedule aligned with ABB’s recommended 8,000-hour service intervals.

Strategic Replacement Solutions

The ABB 3HAC042840-001 is a direct OEM replacement for the original harness assembly fitted at the factory. Unlike aftermarket alternatives, this original part maintains full compatibility with ABB’s RobotWare software calibration routines, ensuring that axis resolver offsets and encoder reference positions remain valid after installation — eliminating the need for full axis recalibration in most replacement scenarios.

For facilities operating legacy IRB 4600 or IRB 6700 robots that are approaching or beyond their original design life, sourcing original spare parts is the most cost-effective strategy for system life extension. Replacing the internal harness restores the robot to factory electrical specification, defers the capital expenditure of a full robot replacement, and preserves the existing integration with upstream PLC systems, safety controllers, and SCADA infrastructure. This is particularly valuable in production environments where the robot’s tooling, fixtures, and process programs represent significant sunk investment that would be lost in a platform migration.

Our pre-shipment testing protocol verifies connector continuity, insulation resistance, and shield integrity on every 3HAC042840-001 unit before dispatch. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects, giving your procurement and maintenance teams full confidence in the part’s reliability from day one of installation.

Support FAQ

Q1: Is the 3HAC042840-001 compatible with all variants of the IRB 4600 and IRB 6700?
Yes. The 3HAC042840-001 internal cable harness is designed to fit all standard payload and reach variants of the ABB IRB 4600 series (including the 20/2.50, 45/2.05, and 60/2.05 configurations) and the IRB 6700 series. If you are unsure about compatibility with a specific robot serial number or build date, please contact us with your robot’s nameplate data and we will confirm fitment before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC042840-001 unit undergoes connector continuity testing across all circuits, insulation resistance measurement between signal and power conductors, and visual inspection of connector housings and cable jacket integrity. A test record is included with each shipment. Units that do not meet specification are quarantined and not dispatched.

Q3: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of delivery. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the robot’s rated environmental envelope. To initiate a warranty claim, contact us at [email protected] with your order number, a description of the fault, and any available fault logs from the IRC5 controller. We will arrange return shipping and replacement or refund within the warranty period.

Q4: How should we manage spare parts inventory for a multi-robot facility?
For facilities operating three or more IRB 4600 or IRB 6700 robots, we recommend maintaining at least one 3HAC042840-001 harness assembly on-site as a critical spare. Pair this with a documented inspection schedule aligned to ABB’s 8,000-hour service interval, and review harness condition during each planned maintenance window. Bulk procurement of two or more units is available — contact us for volume pricing and lead time commitments tailored to your maintenance planning cycle.
