ABB 3HAC039728-001 IRC5 FlexPendant Replacement: Seamless Transition & Upgrade Solution

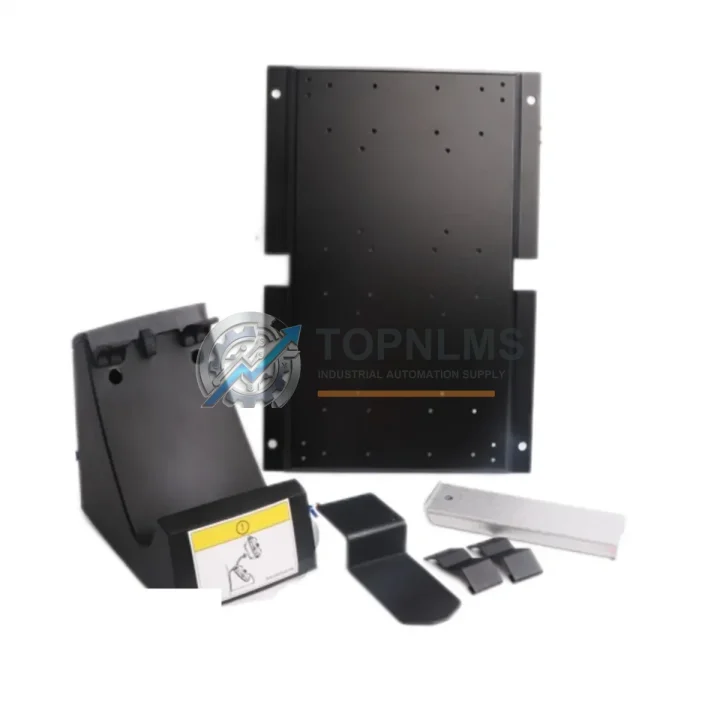

When your ABB IRC5 robot controller system requires a teach pendant holder replacement or a planned upgrade from an aging installation, the ABB 3HAC039728-001 IRC5 FlexPendant Teach Pendant Holder Bracket delivers a direct, drop-in solution with zero compromise on mechanical compatibility or operational continuity. Whether you are migrating from an earlier IRC5 cabinet configuration, replacing a cracked or damaged OEM bracket, or standardizing your fleet of ABB IRB series robots across a production line, this component ensures your FlexPendant remains securely mounted, accessible, and protected throughout every shift.

Industrial facilities running ABB IRC5 single-cabinet or dual-cabinet controllers frequently encounter bracket fatigue after years of continuous operation. The 3HAC039728-001 is the OEM-specified replacement that eliminates the need for custom fabrication or third-party adapters. Its mounting geometry is identical to the original factory-installed bracket, meaning no drilling, no re-routing of the FlexPendant cable assembly (3HAC031683-001), and no modification to the controller cabinet door or panel cutout. Technicians familiar with IRC5 cabinet layouts will complete the swap in under 30 minutes with standard tooling.

For sites transitioning from legacy S4C+ or S4Cplus controller platforms to the IRC5 architecture, the teach pendant ecosystem changes significantly. The older TP (Teach Pendant) units and their associated cable harnesses are not forward-compatible with the IRC5 FlexPendant interface. As part of a full migration, the 3HAC039728-001 bracket is typically installed alongside the IRC5 FlexPendant unit (3HAC028357-001), the FlexPendant cable (3HAC031683-001), and the IRC5 main computer board (DSQC1000 / 3HAC036997-001). Sourcing these components together from a single supplier reduces lead time and ensures version compatibility across the IRC5 hardware stack.

In multi-robot cells where ABB IRB 1600, IRB 2600, IRB 4600, or IRB 6700 manipulators share a common IRC5 controller cabinet layout, bracket standardization is a maintenance best practice. Replacing all teach pendant holders on a scheduled basis — rather than reactively after failure — prevents unplanned downtime during production. The 3HAC039728-001 is compatible across the full IRC5 single-cabinet (M2004 and later) product range, making it a universal spare for mixed-model robot fleets.

Sites operating ABB RobotWare 5.x or RobotWare 6.x environments will find that the physical bracket replacement has no impact on software configuration. The IRC5 controller’s RAPID program, I/O signal mapping via the DSQC652 digital I/O module, and communication settings over DeviceNet, PROFIBUS, or EtherNet/IP remain entirely unaffected. This is a purely mechanical component — no re-commissioning of the controller, no re-teaching of robot positions, and no modification to the safety circuit (DSQC400 / 3HAC025466-001 safety board) is required.

For facilities planning a broader IRC5 cabinet refurbishment, the bracket replacement is often performed in conjunction with servicing the IRC5 power supply unit (DSQC609 / 3HAC14265-1), replacing the drive unit fan assembly, or updating the SMB (Serial Measurement Board, 3HAC17326-1) as part of a preventive maintenance cycle. Bundling these components into a single purchase order reduces freight costs and consolidates inspection records.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRC5 teach pendant system upgrade or cabinet refurbishment rarely involves a single component. When replacing the 3HAC039728-001 bracket, most maintenance engineers also evaluate the condition of the ABB FlexPendant unit (3HAC028357-001) itself — particularly the touchscreen, emergency stop button, and enabling device. If the FlexPendant shows screen delamination or unresponsive touch zones, replacing it in the same maintenance window eliminates a second scheduled outage.

The FlexPendant cable assembly (3HAC031683-001) is the second most commonly co-replaced item. Cable jacket cracking near the strain relief point is a known wear pattern on IRC5 installations with high pendant movement frequency. Replacing the cable alongside the bracket ensures the full pendant mounting system is renewed simultaneously.

For sites performing a broader IRC5 controller overhaul, the DSQC652 digital I/O module (3HAC025917-001) and the DSQC609 power supply unit (3HAC14265-1) are frequently serviced in the same outage window. The DSQC652 handles 24 VDC digital inputs and outputs for conveyor interlocks, gripper signals, and safety gate monitoring — components that are stress-tested during any robot re-commissioning after a cabinet service. The DSQC609 power supply, which provides regulated 24 VDC to the controller logic and I/O backplane, should be inspected for capacitor aging whenever the cabinet is opened for mechanical work.

Sites migrating from S4C+ to IRC5 architecture will additionally require the IRC5 main computer (DSQC1000 / 3HAC036997-001), which hosts RobotWare and manages all motion planning, I/O coordination, and fieldbus communication. The SMB (Serial Measurement Board, 3HAC17326-1) is another migration-critical component — it stores robot calibration data and axis resolver offsets, and must be correctly initialized after any controller hardware change to preserve TCP accuracy.

For facilities integrating ABB robots into broader PLC-controlled production lines via EtherNet/IP or PROFIBUS, the DSQC688 EtherNet/IP adapter (3HAC026253-001) or the DSQC667 PROFIBUS adapter may require firmware verification after an IRC5 controller service. Ensuring fieldbus adapter firmware aligns with the installed RobotWare version prevents communication faults that can halt the entire production cell during startup after maintenance.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC039728-001 bracket require re-teaching robot positions?
No. The bracket is a purely mechanical mounting component. It has no electrical connection to the IRC5 controller and no influence on the robot’s kinematic model, RAPID program, or axis calibration data stored on the SMB board. Robot positions, tool data, and work object definitions remain intact.

Q: Is the 3HAC039728-001 compatible with all IRC5 cabinet variants?
The bracket is designed for the IRC5 Single Cabinet (M2004 and later), IRC5 Compact, and IRC5 Panel Mounted controller variants. It is not compatible with the older S4C+ or S4Cplus controller families, which use a different teach pendant (TP) and a different cabinet door geometry. If you are migrating from S4C+ to IRC5, the entire pendant mounting system — bracket, cable, and FlexPendant unit — must be replaced as a set.

Q: Can I replace the bracket without powering down the IRC5 controller?
No. ABB’s standard maintenance procedure requires the IRC5 controller to be in a safe, de-energized state before opening the cabinet or performing any mechanical work on the door-mounted components. Follow your site’s lockout/tagout (LOTO) procedure and ABB’s IRC5 Product Manual (3HAC021313-001) for safe access guidelines.

Q: Will the FlexPendant cable (3HAC031683-001) need to be re-routed after bracket replacement?
No. The 3HAC039728-001 uses the same cable routing path and strain relief geometry as the original OEM bracket. The existing cable can be re-used without modification, provided it passes a visual inspection for jacket integrity and connector condition.

Q: What communication protocols are supported by the IRC5 system after this replacement?
The bracket replacement has no impact on the IRC5 controller’s communication capabilities. The IRC5 platform supports DeviceNet, PROFIBUS-DP, EtherNet/IP, Modbus TCP, and PROFINET depending on the installed fieldbus adapter modules (DSQC688, DSQC667, etc.). All protocol configurations remain active and unchanged after the mechanical bracket swap.

Q: How do I verify the correct bracket part number for my specific IRC5 cabinet revision?
Cross-reference the ABB IRC5 Spare Parts List (document 3HAC026816-001) for your specific cabinet revision. The 3HAC039728-001 is listed as the current OEM bracket for IRC5 Single Cabinet M2004 and later. If your cabinet predates M2004, contact TOPNLMS at [email protected] with your controller serial number for confirmation.

Warranty Assurance

Every ABB 3HAC039728-001 IRC5 FlexPendant Teach Pendant Holder Bracket supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a dimensional inspection and visual quality check to verify mounting geometry, surface finish, and hardware completeness. Units that do not meet OEM specification tolerances are quarantined and not shipped.

In the event of a warranty claim — including dimensional non-conformance, material defect, or hardware failure under normal operating conditions — TOPNLMS will arrange a replacement unit or issue a full refund at the buyer’s discretion. Warranty claims are processed within 3 business days of receiving the returned item and supporting documentation (photos, installation report, or controller serial number).

TOPNLMS maintains stock of the 3HAC039728-001 and related IRC5 spare components in Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available to minimize lead time for urgent replacement scenarios. Standard air freight transit to most destinations in Southeast Asia, Europe, and the Americas is 3–7 business days.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformance, and country of origin declaration (China) for customs clearance. Bulk orders of 5 units or more qualify for volume pricing — contact our sales team for a formal quotation.
