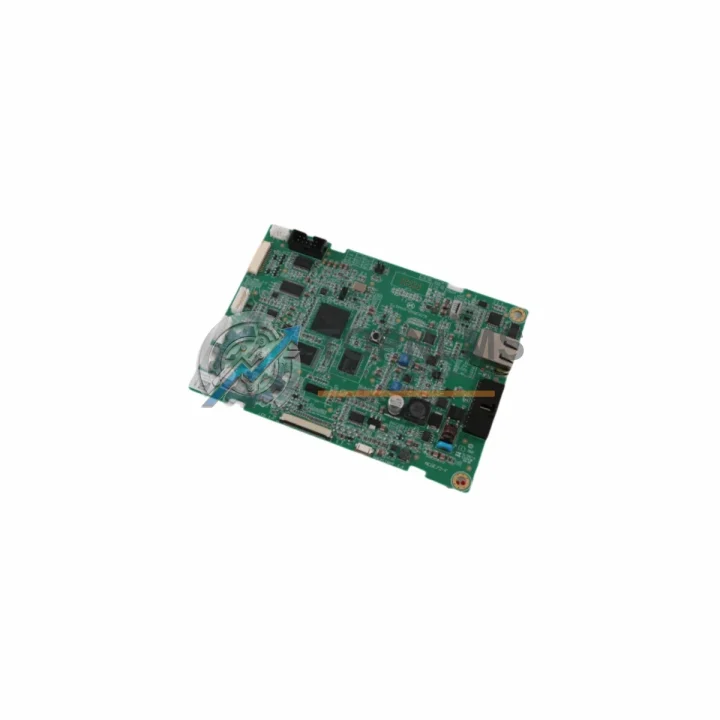

ABB 3HAC033624-001 Ruggedized Control Circuit Board for Harsh Environments

Product Overview

ABB 3HAC033624-001 Ruggedized Control Circuit Board for Harsh Environments

The ABB 3HAC033624-001 is a precision-engineered control circuit board designed for the ABB IRC5 Robot Controller platform — one of the most widely deployed industrial robot control architectures in automotive, heavy manufacturing, and process automation. Built to ABB’s exacting industrial standards, this board delivers sustained, fault-tolerant performance in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether installed in a sealed control cabinet on a continuous casting line or mounted in a dusty press shop, the 3HAC033624-001 maintains signal integrity and processing stability where lesser components fail.

At TOPNLMS, every ABB 3HAC033624-001 unit is sourced through verified supply channels, subjected to functional bench testing prior to dispatch, and shipped with a 12-month replacement warranty. Our inventory is maintained to support urgent breakdown replacements as well as planned maintenance schedules for facilities operating ABB IRC5-based robotic cells.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3HAC033624-001 circuit board does not operate in isolation — it is the nerve center of a tightly integrated control architecture. In a fully configured IRC5 cabinet, it works in concert with the ABB DSQC 661 I/O module to manage digital and analog field signals, and interfaces directly with the ABB DSQC 652 digital I/O board for discrete process control. Drive power is conditioned through the ABB DSQC 374 power supply unit, which provides regulated DC rails essential for stable board operation even during mains fluctuations common in heavy industrial facilities.

For motion control integrity, the 3HAC033624-001 coordinates axis positioning data with the ABB DSQC 633 axis computer module, ensuring sub-millisecond synchronization across multi-axis robot arms. Safety-critical interlocks are managed through the ABB DSQC 400 safety board, which enforces emergency stop logic and safeguarding zone compliance in accordance with ISO 10218 robot safety standards. Communication with higher-level SCADA or DCS systems is handled via the ABB DSQC 688 Ethernet fieldbus adapter, supporting PROFINET and EtherNet/IP protocols for seamless integration into plant-wide automation networks.

In control cabinet configurations where space and thermal management are critical, the 3HAC033624-001 is typically paired with the ABB DSQC 609 power unit and the ABB DSQC 679 teach pendant interface board, forming a complete and redundant control stack. For facilities running mixed fleets of ABB robots, the ABB IRC5 Compact Controller variant also accepts compatible board assemblies from the same 3HAC series, simplifying spare parts inventory management across multiple robot models.

Application in Critical Infrastructure

The ABB 3HAC033624-001 has established a strong track record across the most demanding sectors of critical industrial infrastructure. In automotive body-in-white welding lines, IRC5-controlled ABB robots operate continuously across three-shift production schedules, where any unplanned downtime translates directly to lost vehicle output. The 3HAC033624-001’s robust PCB construction and conformal coating resist the flux of weld spatter, metallic dust, and high-frequency inverter noise generated by resistance welding equipment operating in close proximity.

In oil and gas upstream and midstream facilities, ABB IRC5 robots are deployed for pipe inspection, valve actuation, and hazardous material handling in Zone 2 classified areas. The control board’s EMI shielding and thermal stability ensure reliable operation despite the electromagnetic noise generated by variable frequency drives (VFDs), high-voltage switchgear, and cathodic protection systems common on offshore platforms and onshore processing terminals.

Within power generation and electrical utility environments — including coal-fired boiler maintenance, nuclear fuel handling, and high-voltage substation inspection — the 3HAC033624-001 supports robot controllers that must maintain deterministic cycle times and fail-safe behavior. Its compatibility with ABB’s SafeMove safety software layer makes it suitable for collaborative robot applications where human workers and automated systems share the same operational envelope.

In metallurgical and steel mill applications, where ambient temperatures near furnaces can exceed 50°C and airborne iron oxide particulates are pervasive, the IRC5 controller’s sealed cabinet combined with the thermal resilience of the 3HAC033624-001 board enables continuous operation without forced cooling interventions. Similarly, in water and wastewater treatment plants, where humidity levels are persistently high and chemical vapors are present, the board’s moisture-resistant design prevents corrosion-related failures that plague standard commercial-grade electronics.
