ABB 3HAC028715-001 Replacement for IRB 6660 Series

Product Overview

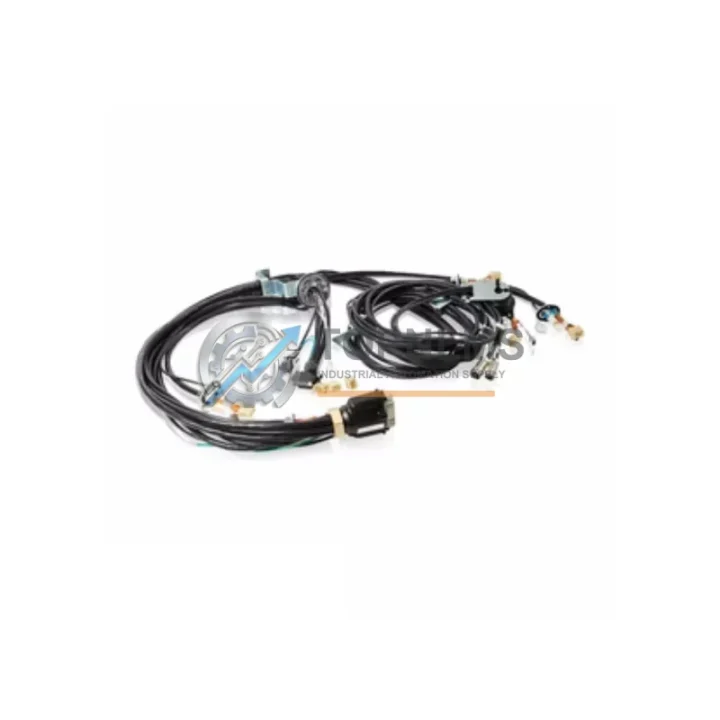

ABB 3HAC028715-001 Replacement for IRB 6660 Series: Seamless Cable Harness Upgrade for Axes 1–6

When your ABB IRB 6660 robot begins showing signs of cable wear, intermittent axis faults, or communication errors traced back to the manipulator wiring harness, the ABB 3HAC028715-001 is the direct, factory-compatible replacement that restores full operational integrity without requiring system redesign. This cable harness covers Axes 1 through 6 of the IRB 6660 manipulator — one of ABB’s most widely deployed heavy-payload robots in automotive stamping, foundry, and material handling environments. Whether you are replacing a degraded original harness or upgrading from the earlier cross-reference 3HAC044259-001, this assembly delivers a plug-and-play retrofit with no modifications to the robot controller or teach pendant configuration.

The IRB 6660 platform is built around ABB’s IRC5 controller architecture, and the 3HAC028715-001 harness is fully compatible with all IRC5 single-cabinet and dual-cabinet configurations. During replacement, engineers will find that the connector pinout, cable routing channels, and dress-pack attachment points are identical to the original factory specification. This means no rewiring of the ABB DSQC 661 axis computer board, no reconfiguration of the DSQC 663 I/O module, and no changes to the IRC5 drive unit or motor power distribution. The harness integrates directly with the robot’s internal cable management system, preserving the original bend radius and strain relief geometry that ABB engineers designed for the IRB 6660’s extended reach and high-cycle duty profile.

For facilities running coordinated multi-robot cells, the 3HAC028715-001 replacement can be completed during a planned maintenance window without affecting the ABB FlexPendant programming or the RAPID motion program stored in the IRC5 controller memory. The axis calibration data, tool center point (TCP) offsets, and work object definitions remain intact after harness replacement, significantly reducing recommissioning time. In most field installations, a trained ABB service technician or qualified integrator can complete the full harness swap — including cable routing, connector seating, and functional verification — within a single shift.

Procurement teams sourcing this harness as a long-term spare should also consider stocking the ABB 3HAC026253-001 motor cable for Axis 1, the 3HAC026254-001 for Axis 2, and the 3HAC026255-001 for Axis 3, as these individual axis cables are the most common wear items in high-cycle IRB 6660 installations. Pairing the 3HAC028715-001 harness with a spare ABB 3HAC025338-001 SMB battery unit ensures that the serial measurement board retains axis resolver data during the replacement procedure, preventing the need for a full axis calibration after reinstallation. For facilities that have already transitioned to the IRB 6660-205/1.9 or IRB 6660-130/3.1 variants, the harness routing and connector interface remain consistent across the series, making this a universal stocking solution for mixed IRB 6660 fleets.

In retrofit scenarios where the original harness has suffered thermal damage near the Axis 1 base rotation zone — a common failure mode in foundry and die-casting environments — the 3HAC028715-001 replacement should be accompanied by an inspection of the ABB 3HAC025562-001 wrist unit and the dress-pack conduit system. The conduit system protects the harness from weld spatter and coolant ingress, and its integrity directly affects the service life of the replacement cable assembly. TOPNLMS supplies the 3HAC028715-001 with full pre-shipment electrical continuity testing and insulation resistance verification, ensuring that every harness dispatched meets ABB’s original factory acceptance criteria.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRB 6660 cable harness replacement is rarely a single-component event. In practice, the 3HAC028715-001 is most often deployed alongside a broader set of maintenance or upgrade actions that restore the robot to full production readiness. The ABB DSQC 661 axis computer is frequently inspected during harness replacement, as connector wear at the axis computer interface is a secondary failure mode that can cause axis fault codes even after a new harness is installed. Similarly, the DSQC 679 FlexPendant interface board within the IRC5 cabinet should be verified for firmware compatibility if the robot has been running on an older RobotWare version.

For facilities upgrading from IRC5 to IRC5 Compact configurations, the 3HAC028715-001 harness remains compatible, but the ABB 3HAC036447-001 power supply unit may require replacement to support the updated drive topology. In multi-robot welding cells, the ABB 3HAC026254-001 Axis 2 motor cable and the 3HAC026255-001 Axis 3 motor cable are high-wear items that should be replaced concurrently with the main harness to avoid a second maintenance window within the same production quarter. The ABB 3HAC025338-001 SMB battery unit is a mandatory companion part during any harness replacement to preserve resolver calibration data. Rounding out a complete preventive maintenance kit, the ABB 3HAC025562-001 wrist unit and the robot’s dress-pack conduit assembly should be inspected and replaced if signs of abrasion or thermal degradation are present.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC028715-001 harness require recalibration of the IRB 6660?
A: Not if the SMB battery unit (3HAC025338-001) is kept powered during the swap. Axis resolver data is retained in the SMB, and TCP/work object offsets remain in the IRC5 controller memory. A functional verification run is recommended post-installation, but full axis calibration is typically not required.

Q: Is the 3HAC028715-001 compatible with both the IRB 6660-205/1.9 and IRB 6660-130/3.1 variants?
A: Yes. The harness connector interface and routing geometry are consistent across all IRB 6660 payload/reach variants. No mechanical or electrical modifications are required.

Q: Can this harness be installed without an ABB-certified technician?
A: The installation is within the capability of a qualified robot integrator or experienced maintenance engineer familiar with ABB IRC5 systems. ABB’s IRB 6660 product manual (3HAC028284-001) provides the full harness replacement procedure, including torque specifications and connector seating verification steps.

Q: What communication protocols does the 3HAC028715-001 support?
A: The harness itself is protocol-agnostic — it carries motor power, resolver signals, and brake control lines. The robot’s communication protocol (PROFIBUS, DeviceNet, EtherNet/IP) is determined by the fieldbus adapter installed in the IRC5 cabinet, not the harness.

Q: How do I verify the harness is correctly seated after installation?
A: After installation, perform a low-speed jog of each axis (Axes 1–6) using the FlexPendant in manual mode. Monitor the IRC5 event log for axis fault codes (e.g., 50024, 50025). Absence of resolver errors and smooth axis motion confirm correct harness seating and continuity.

Warranty Assurance

Every ABB 3HAC028715-001 cable harness supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a documented pre-shipment inspection protocol that includes full electrical continuity testing across all conductor pairs, insulation resistance measurement to verify dielectric integrity, and visual inspection of all connectors, strain reliefs, and cable jacket surfaces. Units that do not meet ABB’s original factory acceptance criteria are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned part. Our after-sales response team is available via email at [email protected] and by phone at +86 18359293191 to support fault diagnosis, installation guidance, and warranty processing. Expedited shipping options are available for customers with urgent production downtime situations. TOPNLMS maintains bonded inventory of the 3HAC028715-001 to ensure consistent availability for repeat procurement and emergency replacement orders.
