ABB 3HAC025338-003/06C Replacement for IRC5 Servo Drive: Seamless Transition & Legacy System Upgrade

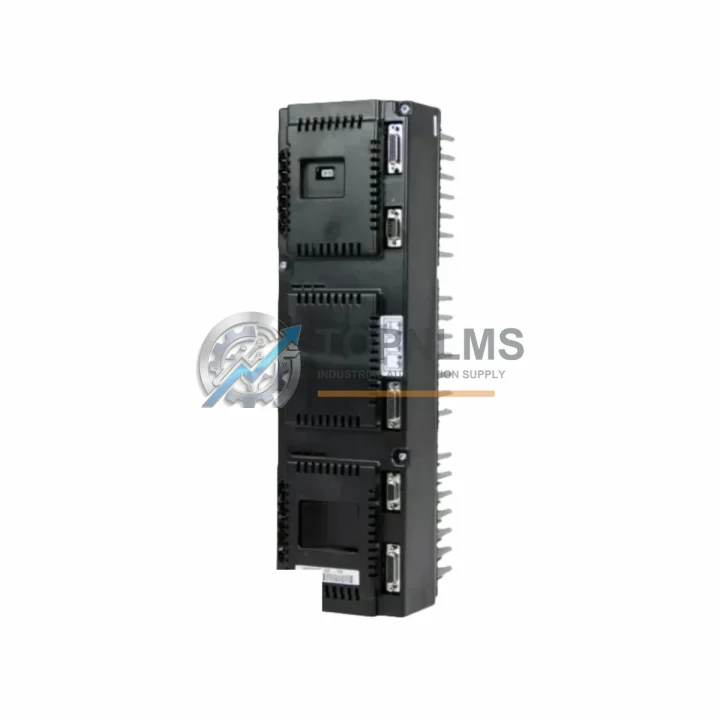

The ABB 3HAC025338-003/06C is a servo drive unit designed for the IRC5 robot controller platform, widely deployed across automotive assembly lines, arc welding cells, material handling systems, and precision manufacturing environments. As ABB progressively phases out earlier IRC5 drive configurations, facilities running IRB 1600, IRB 2400, IRB 4400, and IRB 6600 series robots are increasingly sourcing verified replacement units to maintain uptime without committing to a full controller overhaul.

This listing provides a direct replacement and upgrade solution for the 3HAC025338-003/06C servo drive unit. Whether your existing unit has failed due to IGBT fault, overcurrent protection trip, encoder feedback loss, or thermal shutdown, this module is pre-tested, fully functional, and ready for immediate installation into your IRC5 cabinet.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRC5 servo drive replacement rarely involves a single component in isolation. In practice, field engineers performing a 3HAC025338-003/06C swap will often simultaneously inspect or replace adjacent modules to ensure the entire drive chain is restored to specification. The IRC5 axis computer board (3HAC026254-001) interfaces directly with this drive unit and should be verified for firmware version alignment before commissioning. If the cabinet’s internal power distribution is suspect, the IRC5 power supply unit (3HAC024488-001) should be bench-tested alongside the new drive to rule out upstream voltage irregularities that may have caused the original failure.

For multi-axis robot cells where axes 4–6 are driven by a separate drive module — such as the 3HAC025917-001 wrist drive unit — it is advisable to inspect both drive units simultaneously, as thermal stress and bus faults often propagate across the drive chain. The IRC5 drive system capacitor bank module and associated brake resistor assembly should also be checked, particularly in high-duty-cycle applications where regenerative braking loads are significant.

During the retrofit process, technicians will typically connect a laptop running ABB RobotStudio via the IRC5 service port cable (3HAC031683-001) to perform drive parameter backup, axis calibration data export, and post-replacement commissioning. If the robot’s SMB (Serial Measurement Board, 3HAC044168-001) battery has not been replaced recently, this is an ideal time to do so — a depleted SMB battery will cause resolver offset loss and require full axis calibration after the drive swap.

For facilities managing a fleet of IRC5 controllers, maintaining a small buffer stock of the DSQC 661 (3HAC026254-001) main computer board, DSQC 662 I/O module, and the 3HAC025338-003/06C servo drive unit significantly reduces mean time to repair (MTTR) and protects production schedules against unplanned downtime events.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the 3HAC025338-003/06C?
A: No. The 3HAC025338-003/06C uses the standard IRC5 backplane connector and motor power/feedback harness. The replacement is a direct plug-in swap. Ensure all connectors are fully seated and the cabinet door interlock is re-engaged before powering up.

Q: Will my existing robot programs be affected?
A: No. Robot programs, RAPID code, and tool/work object data are stored on the IRC5 main computer (DSQC 661), not on the drive unit. Your programs will be intact after the drive replacement. However, axis calibration (fine calibration) should be verified and re-run if the robot was moved during the repair.

Q: Is this unit compatible with both IRC5 Single and IRC5 Compact controllers?
A: Yes. The 3HAC025338-003/06C is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations, subject to the specific axis assignment in your system. Confirm the axis group (axes 1–3 or 4–6) with your robot’s electrical documentation before installation.

Q: What communication protocol does this drive use?
A: The IRC5 servo drive communicates via ABB’s internal drive bus (SERCOS-based). No external fieldbus configuration (PROFIBUS, DeviceNet, EtherNet/IP) is required for the drive unit itself. Fieldbus communication is handled by the DSQC 662 or DSQC 663 I/O modules at the controller level.

Q: How do I verify the drive is functioning correctly after installation?
A: Power up the IRC5 controller and check the FlexPendant for any drive fault codes (e.g., 38xxx series). Run a manual jog test on each axis served by the replaced drive. If no faults appear and axis movement is smooth, proceed with fine calibration and a production cycle test at reduced speed before returning to full production.

Q: Can this unit replace earlier /05C or /04C revisions?
A: In most cases, yes. ABB uses a revision suffix to denote hardware iterations, and the /06C revision is backward compatible with earlier IRC5 drive bay installations. However, always cross-reference the robot’s spare parts list (available in ABB’s Product Manual) to confirm revision compatibility for your specific robot model and manufacturing year.

Warranty Assurance

Every 3HAC025338-003/06C unit shipped from TOPNLMS undergoes a structured pre-shipment inspection process. Each unit is visually inspected for physical damage, connector integrity, and component condition. Functional testing is performed where applicable to verify the drive’s power stage and control circuitry are within specification prior to dispatch.

All units are covered by a 12-month warranty from the date of shipment. In the event of a confirmed defect within the warranty period, TOPNLMS will provide a replacement unit or issue a refund, subject to inspection of the returned item. Warranty claims are processed within 5 business days of receiving the returned unit.

Units are packaged in anti-static ESD bags with foam cushioning and double-boxed for international freight. Standard lead time is 1–3 business days for in-stock units, with DHL Express, FedEx International Priority, and UPS Worldwide available as shipping options. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For bulk procurement, OEM replacement programs, or MRO standing orders, please contact our technical sales team directly. We support purchase orders, proforma invoices, and can provide material certifications and test reports upon request.
