ABB 3HAC021731-001 Original Industrial Spare IRC5 Compatible: Ensuring System Stability in Robotic Automation

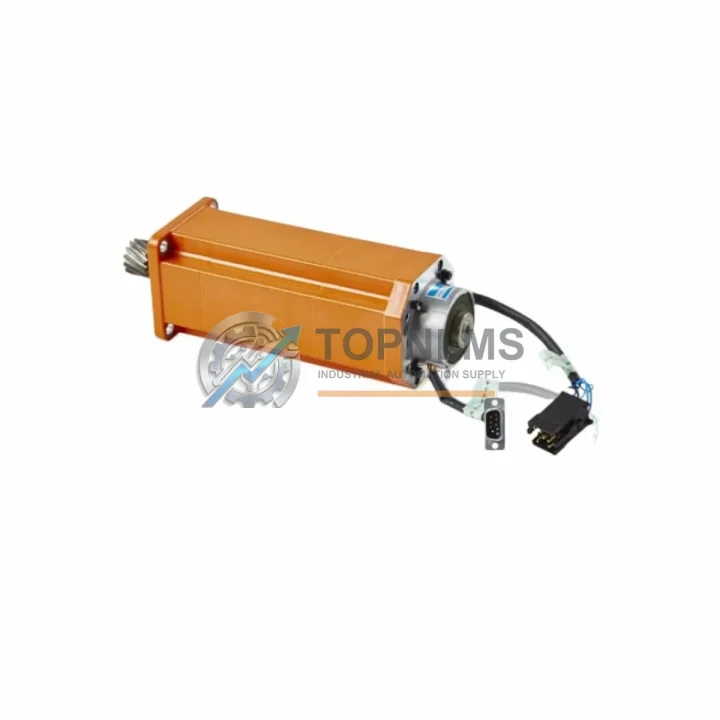

The ABB 3HAC021731-001 is a genuine OEM servo motor designed for ABB IRC5 robot controllers and the IRB series of industrial robots. As a critical axis drive component, this unit governs the precise motion control of robotic arms across a wide range of manufacturing environments — from automotive body welding lines to precision assembly cells in electronics production. Sourcing an original spare rather than an aftermarket substitute is not merely a cost consideration; it is a system integrity decision that directly impacts uptime, repeatability, and long-term maintenance overhead.

In high-cycle industrial environments, servo motors are among the highest-wear components in a robotic system. Bearing fatigue, encoder drift, winding insulation degradation, and resolver signal loss are all failure modes that accumulate silently over thousands of operating hours. When a 3HAC021731-001 unit begins to exhibit positioning errors, abnormal vibration, or axis fault alarms on the IRC5 controller, the window between first symptom and unplanned downtime is often measured in hours — not days. Maintaining a verified spare on the shelf is the single most effective strategy for protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

A servo motor replacement on an IRC5-controlled robot is rarely an isolated event. Experienced maintenance engineers treat any axis motor intervention as a trigger for a broader system health audit. When replacing the 3HAC021731-001, the following components in the same control cabinet and mechanical arm should be inspected or proactively replaced to prevent secondary failures within the next maintenance cycle.

The SMB (Serial Measurement Board) — typically the 3HAC025562-001 or equivalent — interfaces directly with the motor resolver and is a common co-failure point when axis faults are logged. If the SMB has not been replaced within the last 30,000 operating hours, scheduling its replacement alongside the servo motor eliminates a likely return visit. Similarly, the axis computer board (DSQC 668 / 3HAC026254-001) within the IRC5 drive module should be inspected for capacitor bulge and connector corrosion, as drive-side faults can mask or accelerate motor wear.

The motor cable harness (3HAC031683-001 or series-specific equivalent) connecting the servo motor to the drive unit is subject to flex fatigue at the cable entry point of the robot arm. A cracked or intermittently shorted motor cable will cause recurring axis errors even after a new motor is installed — making cable inspection a mandatory step in any servo replacement procedure. Pair this with a check of the brake resistor module and the power supply unit (DSQC 661 / 3HAC026253-001), both of which operate under elevated thermal stress during high-duty-cycle production runs.

For robots operating in dusty or humid environments, the teach pendant cable (3HAC031683-002) and FlexPendant unit (3HAC028357-001) should be inspected for connector wear and display integrity. A degraded pendant introduces operator error risk during manual jogging and recovery procedures. Additionally, the I/O module (DSQC 652 / 3HAC025917-001) mounted in the IRC5 cabinet should be verified for signal integrity — intermittent I/O faults are frequently misdiagnosed as servo issues, leading to unnecessary motor replacements.

Finally, review the condition of the battery backup unit (3HAC044075-001) responsible for retaining axis calibration data. A depleted battery will cause loss of mastering data after a power cycle, requiring full robot recalibration — a time-consuming process that can extend a planned 2-hour motor swap into a full-day production loss event. Proactive battery replacement at every major servo intervention is a low-cost, high-return maintenance practice.

Strategic Replacement Solutions

The 3HAC021731-001 is a direct OEM replacement for the corresponding axis position in ABB IRC5-controlled IRB series robots. Unlike third-party remanufactured units, which may use non-OEM resolver windings or modified encoder firmware, the original ABB part ensures full compatibility with the IRC5 drive software without requiring parameter reconfiguration or axis tuning adjustments. This is particularly important in systems running RobotWare 5.x or 6.x, where motor parameter files are matched to specific hardware revisions.

For facilities managing aging IRB 2400 or IRB 4400 installations — robots that may be 15 to 20 years into their service life — sourcing original spare motors is increasingly difficult through standard distribution channels. Maintaining a buffer stock of one to two units per robot model in active production is a recognized best practice in lean maintenance programs. The cost of a single unplanned downtime event, including lost production, emergency logistics, and technician overtime, typically exceeds the cost of three to five spare motors held in inventory.

All units supplied by TOPNLMS are sourced from verified supply chains, undergo functional testing prior to dispatch, and are shipped with full traceability documentation. Standard lead time is 3–7 business days for in-stock units, with express options available for critical downtime situations.

Support FAQ

Q1: Is the 3HAC021731-001 compatible with all IRC5 cabinet variants?
The 3HAC021731-001 is designed for specific axis positions within the IRC5 platform. Compatibility depends on the robot model and axis number. Please provide your robot model (e.g., IRB 1600, IRB 2400) and the faulted axis number when inquiring, and our technical team will confirm fitment before shipment.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overvoltage, or mechanical impact. All warranty claims are supported with pre-shipment test records.

Q3: Can this motor be installed without robot recalibration?
A servo motor replacement on an ABB IRC5 robot typically requires axis mastering (calibration) after installation, as the resolver zero position may differ between units. This is a standard ABB maintenance procedure performed via the FlexPendant. Ensure the battery backup unit is functional before beginning the replacement to preserve existing mastering data.

Q4: How do I verify the part number before ordering?
The part number is printed on the motor nameplate label. Cross-reference the 3HAC021731-001 label on your existing unit before ordering. If the label is damaged or illegible, provide the robot serial number and axis position — our team can cross-reference the correct part number from ABB’s BOM documentation.
