ABB 3HAC021541-001 Ruggedized Axis Reducer for Harsh Environments

Product Overview

ABB 3HAC021541-001 Ruggedized Axis Reducer for Harsh Environments

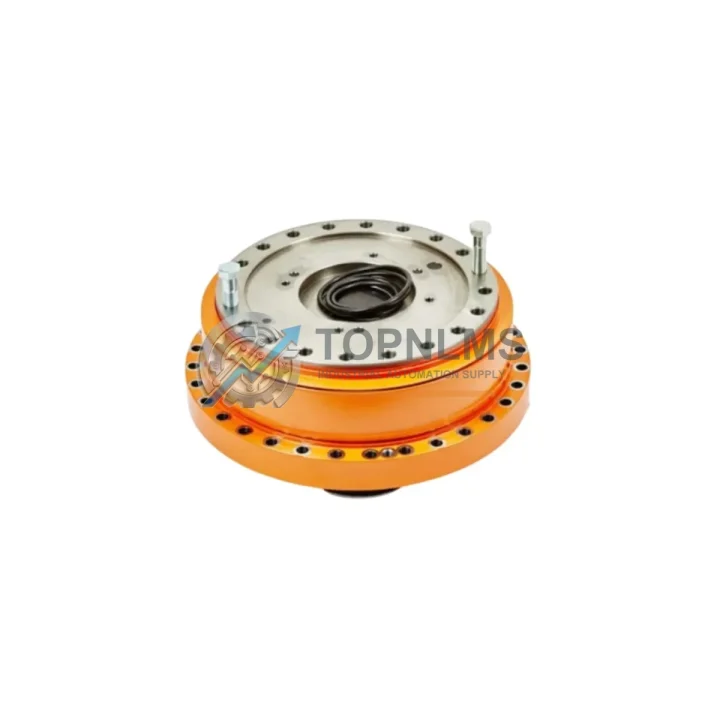

The ABB 3HAC021541-001/002/003/004/005 is a precision-engineered axis reducer gearbox designed for ABB IRB series industrial robots operating in the most demanding production environments. Built to ABB’s exacting mechanical tolerances, this ruggedized gearbox delivers consistent torque transmission and positional accuracy even under continuous-duty cycles, elevated ambient temperatures, high-vibration conditions, and exposure to industrial contaminants including metal dust, coolant mist, and hydraulic fluid vapor.

In modern automated manufacturing cells — whether in automotive body-in-white welding lines, foundry casting extraction, heavy-press tending, or arc welding applications — the axis reducer is the critical mechanical interface between the servo motor and the robot arm. Any degradation in gearbox performance directly impacts path accuracy, cycle time repeatability, and ultimately production yield. The 3HAC021541 series is engineered to maintain sub-arcminute backlash over its full service life, ensuring that the robot’s TCP (Tool Center Point) remains within programmed tolerances even after tens of millions of motion cycles.

This gearbox is compatible with multiple IRB robot models across ABB’s industrial lineup, making it a versatile spare part for maintenance teams managing mixed-model robot fleets. Its sealed bearing arrangement and high-viscosity grease fill provide robust protection against ingress of particulates and moisture — a critical requirement in foundry, food processing, and chemical plant environments where IP-rated protection is non-negotiable.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3HAC021541-001/002/003/004/005 axis reducer does not operate in isolation — it is one precision component within a tightly integrated robot control architecture. For the ABB IRB robot system to maintain safe, reliable, and repeatable operation in harsh industrial environments, every subsystem must be equally robust.

The ABB IRC5 robot controller, which governs motion planning and servo drive commands for the IRB series, relies on accurate feedback from the axis encoder and resolver system. When the axis reducer is replaced or serviced, it is best practice to simultaneously inspect the ABB DSQC series servo drive boards and the SMB (Serial Measurement Board), such as the DSQC633 or DSQC643, which handle encoder signal processing and battery-backed position memory. A worn or misaligned gearbox can introduce vibration signatures that propagate back through the drive chain and trigger false alarms on the ABB FlexPendant teach pendant or the IRC5 main computer.

In high-cycle welding cells, the axis reducer works in concert with the ABB 3HAC series wrist unit and the robot’s upper arm housing. Maintenance teams frequently source the 3HAC021541 alongside companion components such as the ABB 3HAC14550-1 motor unit, the 3HAC17484-1 axis-1 gearbox, and the 3HAC025338-001 cable harness to perform comprehensive joint overhauls rather than single-component replacements — reducing total downtime per maintenance event.

For installations in explosive atmospheres or ATEX-classified zones — common in petrochemical, paint shop, and solvent-handling environments — the axis reducer must be paired with ABB’s EX-rated robot variants and their corresponding explosion-proof cable management systems. In these scenarios, the mechanical integrity of the gearbox is as critical as the electrical safety of the surrounding control cabinet, which typically houses ABB SACE circuit breakers, ABB S800 I/O modules, and ABB AC500 PLC units managing the safety interlock logic.

Where the robot interfaces with external conveyor systems or vision-guided assembly stations, the axis reducer’s positional accuracy directly affects the performance of downstream components such as Cognex vision sensors, Keyence laser displacement sensors, and Sick safety light curtains — all of which depend on the robot arriving at its programmed waypoints within tight tolerances. Any mechanical play introduced by a degraded gearbox will cascade into quality escapes at the inspection station.

Application in Critical Infrastructure

The ABB 3HAC021541-001/002/003/004/005 axis reducer finds its most demanding service in critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas pipeline fabrication yards, ABB IRB robots equipped with this gearbox perform continuous orbital welding on high-pressure pipe sections. The combination of weld spatter, high ambient heat from preheating operations, and 24/7 production schedules places extreme demands on the gearbox’s sealing system and grease retention. A failed axis reducer in this context can halt an entire pipe spool production line, delaying project milestones measured in millions of dollars per day.

In mining and mineral processing facilities, robots fitted with this gearbox handle abrasive ore samples, perform drill-bit changing operations, and assist in explosive magazine management. The high dust loading and shock loads from blasting vibration make the sealed, ruggedized construction of the 3HAC021541 series essential for maintaining mean time between failures (MTBF) targets.

In power generation — including nuclear, thermal, and hydroelectric plants — ABB IRB robots are deployed for remote inspection, valve manipulation, and fuel assembly handling. In these environments, the axis reducer must maintain dimensional stability and torque accuracy under radiation exposure and thermal cycling, conditions that rapidly degrade inferior gearbox designs.

In steel and metallurgy plants, robots using this gearbox perform ladle pouring assistance, billet handling, and surface grinding of hot-rolled sections. Ambient temperatures regularly exceed 50°C, and radiant heat from molten metal can spike well beyond that. The thermal management properties of the 3HAC021541’s grease fill and housing material are critical to preventing premature bearing failure in these conditions.

In water and wastewater treatment facilities, robots equipped with this gearbox assist in pipe inspection, chemical dosing system maintenance, and UV lamp replacement in high-humidity, chemically aggressive environments. The corrosion resistance of the gearbox housing and the integrity of its seals are paramount in preventing ingress of chlorinated water or caustic cleaning agents.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB 3HAC021541-001/002/003/004/005?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and premature failure under normal operating conditions. In the event of a warranty claim, we provide replacement or full refund after technical review. Our warranty process is designed to minimize your downtime — we prioritize rapid replacement dispatch for critical production environments.

Q2: How is each unit tested and verified before shipment?
Every 3HAC021541 unit undergoes pre-shipment inspection including visual examination for housing integrity, seal condition, and grease fill verification. Units are checked against ABB OEM part markings and traceability documentation. We do not supply remanufactured or counterfeit parts — all inventory is sourced through verified supply channels with full documentation available upon request.

Q3: Is this gearbox compatible with all IRB robot models and axis positions?
The 3HAC021541 series covers multiple axis positions and IRB model variants, differentiated by the suffix (-001 through -005). It is essential to confirm your specific robot model, axis number, and existing part number before ordering. Our technical team at [email protected] can assist with cross-referencing your robot’s serial number and maintenance manual to confirm the correct variant. Incorrect axis reducer installation can cause motion errors and potential safety incidents.

Q4: Can you support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains buffer stock of high-demand ABB IRB spare parts including the 3HAC021541 series to support both planned maintenance schedules and emergency breakdown situations. We offer priority shipping for critical production stoppages and can provide multi-unit quotations for customers wishing to hold on-site safety stock. For OEM-equivalent long-term supply agreements, contact our team directly to discuss volume pricing and lead time commitments.
