ABB 3HAC021346-003 Replacement for IRB 2400 Series: Seamless Transition & Compatible Upgrade

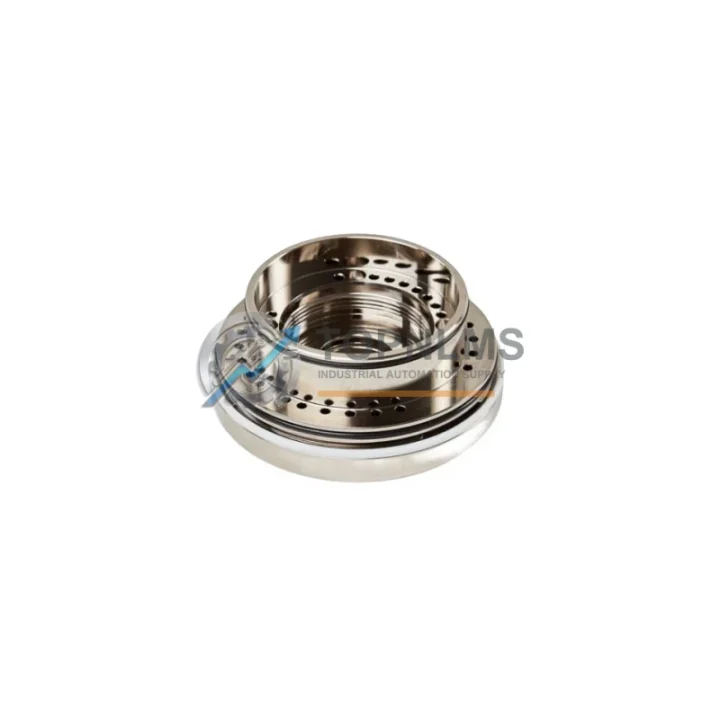

The ABB 3HAC021346-003 is a precision reduction gear unit engineered specifically for the ABB IRB 2400 industrial robot series — one of ABB’s most widely deployed six-axis articulated robot platforms in automotive, metal fabrication, machine tending, and general manufacturing environments. As the IRB 2400 fleet ages and original OEM spare parts become increasingly difficult to source, facilities managers and maintenance engineers face mounting pressure to locate verified replacement components that preserve robot performance without triggering a full system overhaul.

TOPNLMS supplies the 3HAC021346-003 reduction gear as a direct-fit replacement and upgrade solution, backed by a 12-month warranty, pre-shipment functional testing, and responsive technical support. Whether you are replacing a worn or failed unit on an active production line or building a strategic spare parts inventory for your IRB 2400 fleet, this component is available for immediate dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRB 2400 reduction gear replacement rarely happens in isolation. In practice, maintenance teams performing a 3HAC021346-003 swap often discover adjacent components that benefit from simultaneous inspection or replacement. The ABB IRC5 controller — the standard control cabinet paired with the IRB 2400 — should be verified for drive module health, as worn reduction gears frequently cause abnormal current signatures that stress the DSQC 661 or DSQC 679 drive boards. If your facility is running an older S4C+ controller, this is an opportune moment to assess whether a controller migration to IRC5 is warranted, which would also involve updating the FlexPendant teach pendant and associated DSQC 1000 main computer board.

On the mechanical side, the 3HAC14178-1 motor unit for the affected axis should be inspected for bearing wear and encoder integrity, as a degraded motor amplifies stress on the new reduction gear. The 3HAC17326-1 gearbox — a related axis reduction unit in the IRB 2400 kinematic chain — is frequently replaced in tandem to restore full arm accuracy and eliminate residual backlash across multiple joints. Facilities running multi-robot cells should also audit the 3HAC026253-001 cable harness routed through the arm, since cable fatigue is a common co-failure mode during high-cycle operations.

For teams undertaking a broader retrofit, the ABB JOKAB Safety relay modules and 3HAC044168-001 SMB battery unit (serial measurement board backup battery) are standard consumables that should be refreshed during any planned downtime window. If your IRB 2400 communicates over DeviceNet or PROFIBUS via an DSQC 352 or DSQC 378 fieldbus adapter, confirm that the adapter firmware is current before returning the robot to service — a mechanical replacement is the ideal moment to close any outstanding software or firmware gaps without additional downtime cost.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC021346-003 require recalibration of the IRB 2400?
A: Yes. After any reduction gear replacement on an ABB IRB robot, axis calibration using the CalibWare or Levelmeter 2000 tool is mandatory to restore TCP accuracy. The calibration procedure is documented in ABB’s IRB 2400 Product Manual and should be performed by a qualified ABB-certified technician or experienced integrator.

Q: Is the wiring or servo drive configuration affected?
A: No. The 3HAC021346-003 is a purely mechanical component. No changes to the servo drive parameters, motor wiring, resolver connections, or IRC5 drive module configuration are required. The existing axis motor and encoder remain in place.

Q: Can this replacement gear be used on IRB 2400/10, /16, and /L variants?
A: Compatibility should be verified against the specific axis and variant using the robot’s serial number and the ABB spare parts catalog. TOPNLMS technical support can assist with cross-referencing your robot’s configuration before order confirmation.

Q: What communication protocols are supported after replacement?
A: The reduction gear has no protocol dependency. Your existing DeviceNet, PROFIBUS, EtherNet/IP, or PROFINET fieldbus configuration via the IRC5 controller remains entirely unchanged.

Q: How do I minimize downtime during the swap?
A: Pre-stage the replacement unit, calibration tools, and any co-failure components (motor, cable harness, SMB battery) before taking the robot offline. TOPNLMS can ship the 3HAC021346-003 with expedited freight to align with your planned maintenance window. Most experienced teams complete the mechanical swap within a single shift.

Q: Is the replacement gear tested before shipment?
A: Yes. Every unit undergoes pre-shipment inspection at our Xiamen facility, including dimensional verification and visual inspection for gear mesh integrity, surface finish, and seal condition.

Warranty Assurance

TOPNLMS provides a 12-month warranty on the ABB 3HAC021346-003 reduction gear from the date of delivery. This warranty covers manufacturing defects, premature gear failure under normal operating conditions, and dimensional non-conformance. In the event of a warranty claim, our team will coordinate a replacement dispatch or issue a credit note based on your preference and the nature of the defect.

All units are subject to pre-shipment functional and dimensional inspection. Shipments are accompanied by a packing list and, upon request, a basic inspection report. We support DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Typical dispatch lead time is 1–3 business days from order confirmation, with express delivery available to most industrial regions in Europe, Southeast Asia, and the Americas.

Our procurement support team is available to assist with part number cross-referencing, compatibility verification, and documentation for MRO purchasing workflows. We accept T/T bank transfer, and can provide proforma invoices, commercial invoices, and packing lists compliant with customs requirements for CN export.

For urgent requirements or fleet-level procurement inquiries, contact us directly:
