ABB 3EHL409054R0001 KUB921A01 Replacement for ACS800

Product Overview

ABB 3EHL409054R0001 KUB921A01 Replacement for ACS800: Seamless Drive System Migration

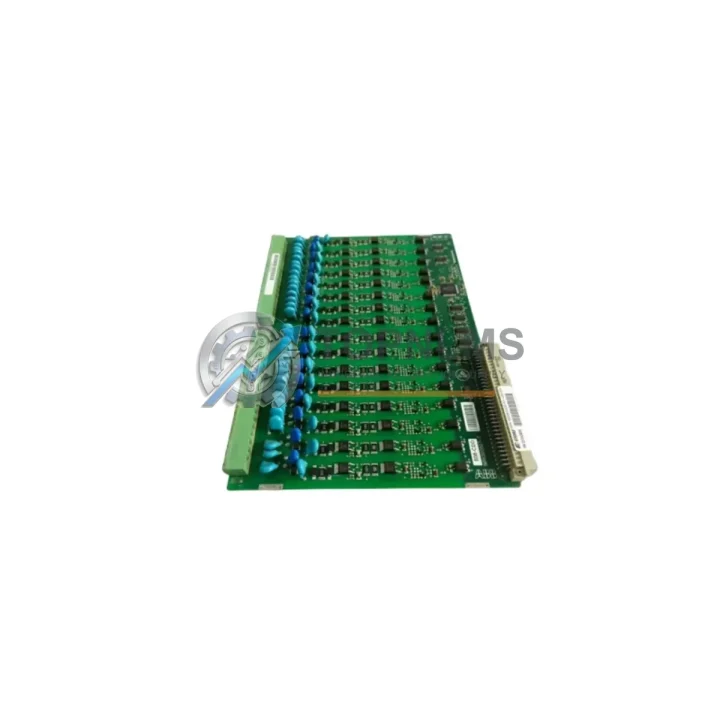

The ABB 3EHL409054R0001 (KUB921A01) is the core drive control board for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp & paper, oil & gas, mining, water treatment, and heavy manufacturing. As ACS800 units age into end-of-life or suffer unexpected board-level failures, sourcing a verified replacement control board is the fastest path to restoring production without committing to a full drive replacement.

TOPNLMS maintains ready stock of the 3EHL409054R0001 / KUB921A01 board, fully tested prior to shipment, with a 12-month warranty and same-week dispatch from our Xiamen warehouse. Whether you are executing a planned preventive maintenance swap, responding to an emergency shutdown, or building a critical spare inventory, this board is available now.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS800 drive control board replacement rarely involves the board alone. In practice, field engineers performing this retrofit also inspect and often replace adjacent components to ensure system reliability after the repair. The AINT-02C / AINT-14C inverter control interface board sits directly upstream of the KUB921A01 and should be verified for signal integrity before commissioning the new control board. Similarly, the APOW-01C power supply board provides the 24 VDC rail that feeds the control section — a degraded PSU board is a common root cause of repeated control board failures and should be tested or replaced as part of the same maintenance window.

For drives using fieldbus communication, the RDCO-01 / RDCO-02 DDCS fiber optic adapter connects the ACS800 control board to the upper-level control system, typically a DCS or PLC such as an ABB AC500 series controller or a third-party Modbus/Profibus master. If the existing RDCO module shows fiber port degradation or communication errors, replacing it alongside the 3EHL409054R0001 eliminates a second potential failure point. Drives integrated into ABB’s Advant OCS / MOD 300 DCS architecture via DDCS should have their fiber cable assemblies and optical transceivers inspected at the same time.

On the I/O side, the AIMA-01 / AITC-01 analog I/O extension module and ADIO-01 digital I/O extension module plug into the ACS800 control section and are often disturbed during board removal. Reseating or replacing these modules during the same service event prevents nuisance faults after restart. For installations where the ACS800 is mounted in a shared control cabinet alongside other drives or motor starters, the AGPS-21C / AGPS-11C gate driver power supply board should also be checked, as gate driver faults frequently accompany control board failures in high-cycle applications.

Finally, for engineers who need to re-parameterize the drive after board replacement, an ACS800 control panel (ACS-CP-C or ACS-CP-D) or a PC connection via the RUSB-02 USB-to-DDCS adapter with DriveWindow Light software is required to upload the saved parameter backup and verify motor data, speed references, and protection settings before returning the drive to service.

Retrofit Guidance FAQ

Q: Do I need to rewire the control terminals after replacing the board?
A: No. The 3EHL409054R0001 / KUB921A01 uses the identical connector layout as the original board. The existing wiring harness, terminal blocks, and signal cables connect directly without modification. Label and photograph all connections before removal as a precaution.

Q: Will my existing ACS800 parameter set work after the board swap?
A: Yes, provided you have a saved parameter backup from the original drive. Upload the backup via the control panel or DriveWindow software after installation. If no backup exists, the drive must be re-parameterized from the motor nameplate data and application requirements.

Q: Is the DDCS fiber optic communication interface preserved?
A: Yes. The RDCO adapter slot and DDCS fiber optic interface are fully retained on the replacement board. Existing fiber cable routing and optical connections to the DCS or master controller do not need to change.

Q: Can this board be used in ACS800 drives of different power ratings?
A: The KUB921A01 control board is common across multiple ACS800 frame sizes. Confirm your specific drive’s frame size and hardware revision against the ACS800 hardware manual (3AFE64527592) before ordering if you have a non-standard configuration.

Q: What is the physical installation procedure?
A: Isolate and lock out the drive. Discharge DC bus capacitors per ABB safety procedure (minimum 5 minutes after power-off). Remove the control section cover, disconnect the ribbon cables and fiber connectors, unscrew the board mounting fasteners, swap the board, reconnect all cables in reverse order, and perform a no-load power-up test before reconnecting the motor.

Q: How do I verify the replacement board is functioning correctly before full production restart?
A: After parameter upload, run the drive in local control mode with the motor uncoupled if possible. Verify all I/O signals, check for active fault codes, confirm DDCS communication status with the master controller, and perform a low-speed motor rotation test before returning to automatic/remote control.

Warranty Assurance

Every 3EHL409054R0001 / KUB921A01 board shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional bench testing covering power supply rail verification, communication interface continuity, and visual inspection for component damage, corrosion, or counterfeit indicators.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our technical team responds to warranty inquiries within 1 business day. Boards must be returned in original packaging with the original invoice; shipping costs for confirmed warranty defects are covered by TOPNLMS.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices suitable for customs clearance and internal purchasing records. Express shipping via DHL, FedEx, or UPS is available for urgent requirements, with typical transit times of 3–7 business days to most destinations worldwide.

Contact our sales team to confirm stock availability, request a quotation, or discuss volume pricing for spare parts programs.
