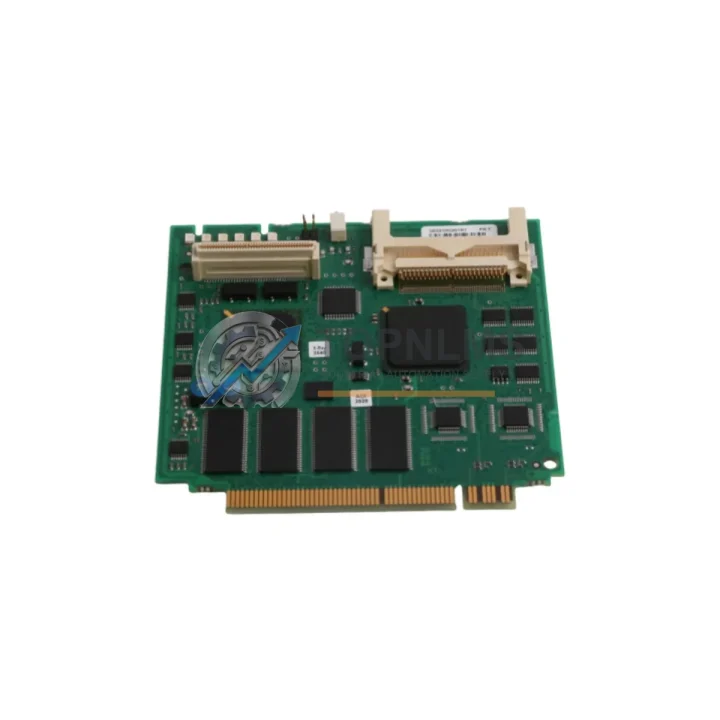

ABB 3BSE050201R1 PM866-2 Original Industrial Spare — AC800M Redundant Processor Maintenance & Stability

The ABB 3BSE050201R1 PM866-2 is a high-availability redundant processor unit designed for the ABB AC800M distributed control system platform. As a genuine original spare part, it is the cornerstone of long-term system stability in process industries including oil & gas, power generation, pulp & paper, chemical processing, and water treatment. Maintaining a verified stock of the PM866-2 is a critical element of any proactive industrial maintenance strategy — ensuring that unplanned downtime caused by processor failure can be resolved within hours rather than days.

The PM866-2 operates as a redundant pair with a primary processor, providing seamless bumpless switchover in the event of a fault. Its role within the AC800M architecture means that a single failed unit can halt an entire control loop or process segment. For facilities running continuous or semi-continuous operations, the cost of a single unplanned shutdown far exceeds the cost of maintaining a qualified spare on the shelf. TOPNLMS supplies the 3BSE050201R1 as a tested, original-grade unit with full traceability, ready for immediate deployment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance plan for an AC800M-based control system extends well beyond the processor unit itself. When scheduling a planned inspection or preparing for a processor swap involving the PM866-2 (3BSE050201R1), experienced maintenance engineers routinely evaluate the health of the entire control cabinet ecosystem.

The TB820V2 media converter and TB807 or TB811 S100 I/O bus interface modules are frequently inspected alongside the processor, as communication faults between the CPU and I/O clusters can mimic processor failures. Similarly, the SD821 and SD822 power supply modules that feed the AC800M rack should be tested for output voltage stability — a degraded power supply is one of the most common root causes of intermittent processor resets and redundancy switchover events.

For facilities using the AC800M in conjunction with fieldbus networks, the CI854A PROFIBUS DP interface module and CI858-1 (3BSE018137R1) DriveBus interface module are logical candidates for simultaneous inspection. These communication modules share the same rack environment and are subject to the same thermal and electrical stress cycles as the processor. Stocking a spare CI854A alongside the PM866-2 is a widely adopted practice in plants with high PROFIBUS device counts.

At the field level, AI810 analog input modules and DO810 digital output modules connected to the processor’s I/O bus should be verified for signal integrity during any planned maintenance window. Loose terminal connections on TU810V1 or TU830V1 I/O termination units can introduce noise that stresses the processor’s scan cycle. Replacing aged termination units during a processor maintenance event is a cost-effective way to extend overall system reliability without additional downtime.

For plants using ABB’s 800xA system platform, the PM866-2 integrates directly with the OPC server and historian infrastructure. Ensuring that the SC520 or SC522 slave controller modules in satellite cabinets are also in good condition prevents cascading faults that could be misattributed to the central processor. A comprehensive spare parts kit covering the processor, power supply, key I/O modules, and communication interfaces represents the most resilient approach to AC800M lifecycle management.

Strategic Replacement Solutions

The ABB 3BSE050201R1 PM866-2 is a direct replacement for aging or failed PM866-series processors within the AC800M platform. Unlike cross-platform migrations that require extensive re-engineering, replacing a PM866-2 with a verified original spare preserves all existing control logic, I/O mapping, function block libraries, and communication configurations. The replacement procedure typically involves a controlled shutdown of the standby processor, physical module swap, firmware version verification, and a supervised redundancy test — a process that experienced ABB-trained technicians can complete within a standard maintenance window.

For sites where the original PM866-2 has reached end-of-service life or where ABB’s local support infrastructure has been reduced, sourcing a qualified original spare from a specialist distributor such as TOPNLMS provides a practical path to extending system life by 5–10 years without capital expenditure on a full DCS migration. This approach is particularly valuable in industries where the cost and risk of a control system migration outweigh the benefits of upgrading to a newer platform in the near term.

All units supplied by TOPNLMS are individually tested prior to shipment, including power-on verification, communication port functionality checks, and visual inspection for component-level defects. Units are shipped in anti-static packaging with full documentation. Express logistics from Xiamen ensure delivery to most global destinations within 3–7 business days.

Support FAQ

Q1: How do I verify compatibility between a replacement PM866-2 and my existing AC800M system firmware?
The PM866-2 (3BSE050201R1) is compatible with AC800M firmware versions 5.x and 6.x. Before installation, confirm the firmware version running on your active processor via the Control Builder M engineering tool. If the replacement unit carries a different firmware version, ABB’s standard firmware upgrade procedure applies. TOPNLMS can advise on firmware compatibility based on your system’s software revision upon request.

Q2: What is the recommended spare parts holding strategy for a redundant AC800M system?
For critical process applications, industry best practice recommends holding a minimum of one spare PM866-2 processor per redundant pair, plus one spare power supply module (SD821 or SD822) and one spare communication module (CI854A or CI858-1) per control cabinet. This configuration covers the three most common failure modes and enables same-shift restoration for the majority of fault scenarios.

Q3: Can the PM866-2 be replaced in a live system without a full process shutdown?
Yes — in a correctly configured redundant AC800M system, the standby PM866-2 can be replaced while the primary processor maintains control. The replacement unit is inserted into the standby slot, synchronizes with the primary, and assumes standby status automatically. A full process shutdown is only required if both processors must be replaced simultaneously, which is an extremely rare scenario.

Q4: What does the 12-month warranty from TOPNLMS cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund. All units undergo pre-shipment functional testing. Warranty claims are processed within 5 business days of receiving the returned unit. The warranty period begins from the date of confirmed delivery.
