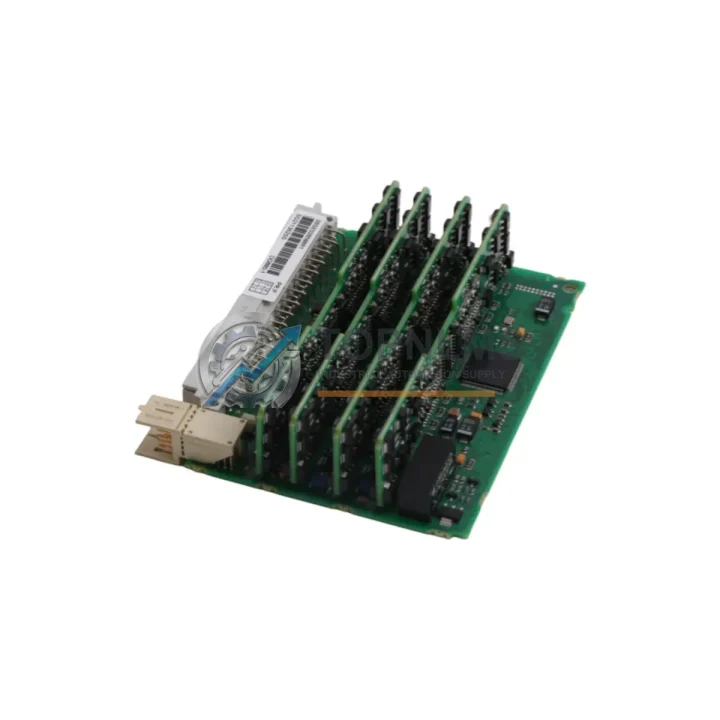

ABB 3BSE028588R1 DO880-1 Replacement for AC800M DCS: Seamless Migration & Upgrade Solution

The ABB 3BSE028588R1 DO880-1 is a 32-channel digital output module engineered for the ABB AC800M Distributed Control System (DCS) platform. As legacy AC800M installations age and original DO880-1 units reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to locate verified replacement stock without disrupting continuous production. TOPNLMS maintains ready inventory of the 3BSE028588R1, fully tested and backed by a 12-month warranty, enabling your team to execute a controlled, low-risk migration from aging or failed modules with minimal downtime.

Whether you are replacing a single failed card in a running DCS cabinet or executing a planned upgrade across multiple AC800M controller racks, the DO880-1 is a direct form-fit-function replacement. Its 32 discrete digital output channels interface directly with existing field wiring via the TB820V2 or TB840A termination units already installed in your marshalling cabinet, eliminating the need to re-terminate field cables or modify cable schedules. The module slots into the standard S800 I/O rack without mechanical modification, preserving your existing cabinet layout and DIN-rail footprint.

From a control program perspective, the 3BSE028588R1 is recognized by ABB Control Builder M under the same hardware type designation as the original unit. No function block rewiring or I/O address remapping is required in most migration scenarios, which dramatically reduces the engineering hours needed for commissioning. Engineers migrating from earlier DO880 revisions or from the discontinued DO810 8-channel module should verify channel count and termination unit compatibility, but the physical rack interface and communication protocol remain consistent across the S800 I/O family.

Power supply compatibility is a critical consideration in any DCS module swap. The DO880-1 operates on the standard 24 VDC field power rail common to AC800M S800 I/O installations, and draws within the same power budget envelope as the original module. If your system uses an SD821 or SD822 power supply unit, no power distribution changes are required. For sites running redundant power configurations with dual SD823 units, the module integrates without modification.

Communication between the DO880-1 and the AC800M controller is handled via the PROFIBUS DP or ModuleBus backplane, depending on your rack configuration. The module does not require a separate communication parameter download; it inherits its address and configuration from the rack slot assignment defined in Control Builder M. This makes hot-swap replacement straightforward for maintenance teams familiar with the AC800M architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete AC800M migration or cabinet refresh typically involves more than a single I/O module. When replacing the 3BSE028588R1 DO880-1, procurement teams commonly source the following components in the same order to ensure system-level compatibility and reduce the number of separate shipments:

The TB820V2 termination unit is the standard field-wiring interface for the DO880-1 and should be inspected or replaced alongside the module if the existing unit shows signs of terminal wear or corrosion. For sites requiring higher channel density in a single rack slot, the DO840 16-channel relay output module is a complementary option for mixed output architectures. On the input side, the DI810 and DI830 digital input modules share the same S800 rack and termination philosophy, making them natural co-purchases during a rack-level refresh.

Controller-level upgrades often accompany I/O module replacements. The PM866 and PM891 AC800M processor modules are the current-generation controllers that pair with the DO880-1, replacing older PM860 or PM864 units in sites planning a full controller modernization. For sites adding Ethernet-based supervisory connectivity, the SC520 communication interface module integrates with the AC800M backplane and supports OPC DA/UA data exchange without requiring a separate gateway device.

Power infrastructure is equally important: the SD821 24 VDC power supply and its redundant companion SD823 are standard BOM items for AC800M cabinet builds and refurbishments. Finally, for sites commissioning or troubleshooting the upgraded system, a TK212A programming cable or USB-to-serial adapter compatible with Control Builder M is an essential field tool that eliminates dependency on legacy serial ports.

Retrofit Guidance FAQ

Q: Can I replace the DO880-1 without re-terminating field cables?
Yes. The DO880-1 connects to field wiring through the TB820V2 or TB840A termination unit. The module itself plugs into the termination unit via a keyed connector. Field cables remain undisturbed during the swap.

Q: Do I need to modify my Control Builder M project after replacing the module?
In most cases, no. The 3BSE028588R1 is recognized under the same hardware type in Control Builder M as earlier DO880 revisions. A download of the I/O configuration may be required after hot-swap, but function block logic and I/O signal assignments do not need to change.

Q: Is the DO880-1 compatible with both PROFIBUS DP and ModuleBus racks?
Yes. The module supports both backplane communication protocols. The active protocol is determined by the rack and CI module configuration, not the I/O module itself.

Q: What is the physical installation space requirement?
The DO880-1 occupies a single standard S800 I/O rack slot. No additional DIN-rail space or cabinet modification is required compared to the original unit.

Q: Can this module replace a DO810 (8-channel) unit?
The DO880-1 provides 32 channels versus the DO810’s 8 channels. A direct slot-for-slot replacement is possible, but the additional 24 channels will require corresponding termination unit and field wiring provisions if they are to be utilized. If only 8 channels are needed, the unused channels can be left unconfigured in Control Builder M.

Q: What communication protocol does the module use for diagnostics?
Diagnostic data is reported via the ModuleBus or PROFIBUS DP backplane to the AC800M controller and surfaced in the Control Builder M online monitoring view. No additional diagnostic hardware is required.

Warranty Assurance

Every ABB 3BSE028588R1 DO880-1 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including output channel continuity checks and communication interface testing to confirm the module performs to ABB specification. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team responds to after-sales inquiries within one business day and can assist with installation questions, compatibility verification, and Control Builder M configuration guidance. We maintain buffer stock of the 3BSE028588R1 to support rapid replacement dispatch, minimizing the impact of unexpected field failures on your production schedule.
