ABB 3BSE018298R1 DSDO 115A Replacement for AC 160 DCS: Smooth Migration & Backward-Compatible Upgrade

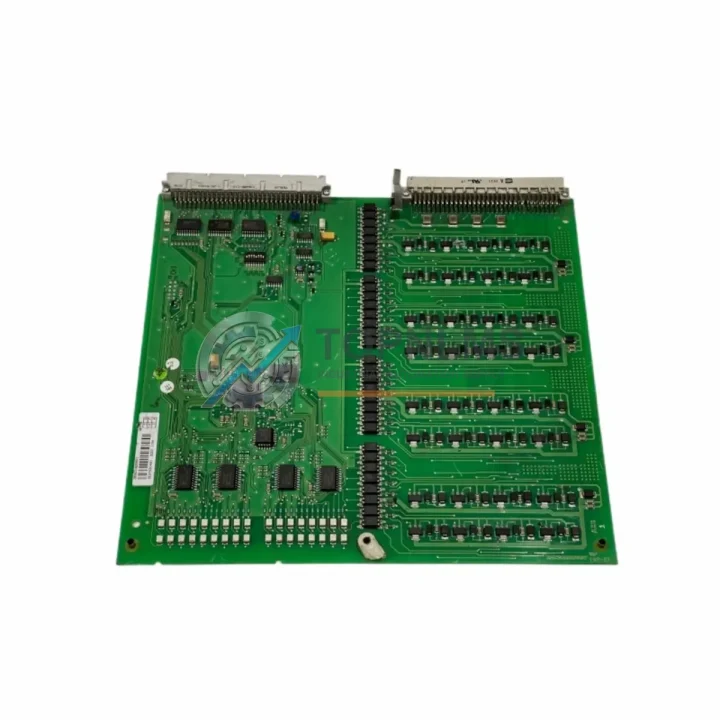

The ABB 3BSE018298R1 DSDO 115A is a 16-channel, 24 VDC digital output module engineered for the ABB AC 160 Distributed Control System (DCS). As the AC 160 platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams are actively seeking verified replacement units to sustain production continuity without committing to a full system overhaul. TOPNLMS maintains ready stock of the 3BSE018298R1 to support exactly this scenario — delivering a genuine, tested module that slots directly into your existing AC 160 rack with no firmware changes, no re-wiring, and no re-commissioning of the controller.

Each unit ships from our Xiamen warehouse after passing a full functional bench test. We support customers across petrochemical, power generation, pulp & paper, and heavy manufacturing industries who depend on the AC 160 platform for critical process control. Whether you are replacing a failed module on an emergency basis or building a strategic spare-parts buffer, the 3BSE018298R1 is available for immediate dispatch with full documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC 160 DCS migration or spare-parts strategy rarely involves a single module in isolation. When replacing or upgrading the 3BSE018298R1 DSDO 115A, plant engineers typically address the surrounding system architecture at the same time to ensure long-term reliability.

On the input side, the ABB DSDI 110A (3BSE018298R1’s counterpart digital input module) is frequently replaced in the same maintenance window, since both modules share the same rack slot standard and field terminal block design. Pairing a fresh DSDO 115A output module with a verified DSDI 110A input module eliminates the most common failure points in an aging AC 160 I/O station in a single intervention.

For analog process signals, the ABB DSAO 120A analog output module and DSAI 130A analog input module are common companions in AC 160 cabinets handling temperature, pressure, and flow loops. If your migration scope includes converting 4–20 mA loops or thermocouple inputs, these modules should be evaluated alongside the digital I/O replacement.

The ABB DSBC 172 / DSBC 176 base unit (I/O rack) itself is another critical component. Aging backplane connectors on the DSBC 176 can cause intermittent communication faults that are often misdiagnosed as module failures. Inspecting or replacing the base unit during a DSDO 115A swap prevents repeat callouts.

Communication between the AC 160 I/O stations and the master controller relies on the ABB DSCB 110 / DSCB 176 communication bus coupler. If your plant is experiencing S-bus errors or node dropouts, the bus coupler should be tested in parallel with the output module replacement to isolate the root cause before commissioning the new 3BSE018298R1.

For sites planning a longer-term migration from AC 160 to the ABB System 800xA / AC 800M platform, the ABB CI854 PROFIBUS DP communication interface and S800 I/O modules (such as the AI810, AO810, DI810, and DO810) represent the natural upgrade path. The 3BSE018298R1 can serve as a bridge solution — keeping the existing AC 160 station operational while the new 800xA infrastructure is engineered and staged — significantly reducing the risk of a hard cutover and the associated production downtime.

Finally, if your control cabinet includes an ABB DSPC 172 / DSPC 176 processor module running the AC 160 controller logic, ensuring that the processor firmware is at the latest supported revision before inserting a replacement DSDO 115A is recommended practice. Our technical team can advise on firmware compatibility based on your specific system configuration.

Retrofit Guidance FAQ

Q: Can I replace the 3BSE018298R1 without shutting down the entire AC 160 DCS?
A: The AC 160 platform does not natively support hot-swap on standard I/O modules. A controlled partial shutdown of the affected I/O station is required. However, because the replacement is a direct slot-in unit with identical backplane pinout and no configuration changes needed, the outage window is typically limited to the physical swap and a brief controller re-scan — often under 30 minutes for experienced maintenance personnel.

Q: Will the existing field wiring connect to the replacement module without modification?
A: Yes. The DSDO 115A uses the standard AC 160 field terminal block. Your existing 24 VDC field wiring connects to the same terminal positions. No re-labeling, re-routing, or re-termination is required.

Q: Does the replacement module require re-programming or re-configuration in the AC 160 engineering tool?
A: No. The 3BSE018298R1 is recognized automatically by the AC 160 controller via the S-bus backplane. The module address is determined by its physical slot position, not by any internal configuration. Your existing control logic, function block assignments, and I/O mapping remain unchanged.

Q: What communication protocol does the DSDO 115A use, and is it compatible with my existing AC 160 network?
A: The module communicates exclusively via the AC 160 proprietary S-bus backplane. It does not use PROFIBUS, PROFINET, Modbus, or any external fieldbus. Compatibility is guaranteed for all standard AC 160 rack configurations.

Q: We are migrating from AC 160 to ABB System 800xA. Can the 3BSE018298R1 be used as an interim solution?
A: Absolutely. This is one of the most common use cases. The 3BSE018298R1 keeps your existing AC 160 station fully operational during the 800xA engineering and commissioning phase, allowing a phased cutover rather than a simultaneous full-system replacement. This approach is strongly recommended to minimize production risk.

Q: How do I verify the module is genuine and not a counterfeit?
A: All units supplied by TOPNLMS are sourced through verified industrial surplus and authorized distribution channels. Each module is inspected for physical integrity, label authenticity, and functional output performance before shipment. A test report is available upon request.

Warranty Assurance

Every ABB 3BSE018298R1 DSDO 115A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty commitment covers functional failure under normal operating conditions and includes free replacement or full refund at our discretion.

Prior to dispatch, each unit undergoes a structured outgoing inspection: visual examination of the PCB, connector pins, and module housing; functional verification of all 16 output channels; and confirmation of correct module identification data. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. We support return shipping arrangements and prioritize replacement dispatch to minimize your plant downtime. For critical applications, we recommend discussing our express shipping options at the time of order to ensure a replacement unit can be on-site within 48–72 hours if needed.

Procurement teams can request a formal quotation, proforma invoice, and certificate of conformity for each order. We support T/T bank transfer, and can accommodate standard B2B purchase order workflows for approved accounts.

Stock levels for the 3BSE018298R1 are updated regularly. If your requirement exceeds current available quantity, please contact us to discuss lead times and reservation options.
