ABB 3BSE018293R1 Ruggedized Analog Output Module for Harsh Environments

Product Overview

ABB 3BSE018293R1 Ruggedized Analog Output Module for Harsh Environments

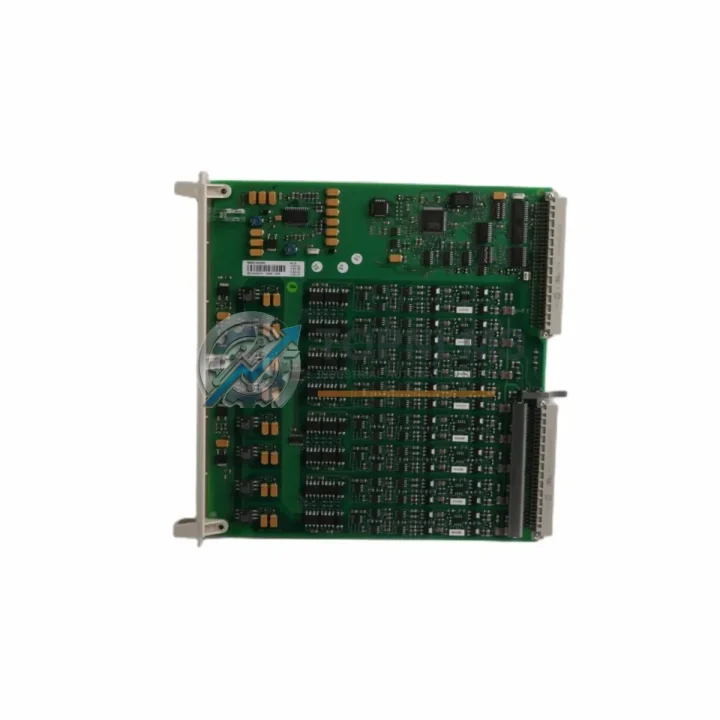

The ABB 3BSE018293R1 DSAO 120A is a high-integrity analog output module engineered for the S800 I/O system — ABB’s field-proven distributed I/O platform widely deployed in process automation, power generation, and heavy industrial control architectures. Designed to deliver precise 4–20 mA or 0–10 V analog signals under continuous duty cycles, this module maintains signal fidelity even in environments characterized by extreme temperature fluctuations, high humidity, pervasive particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI).

In demanding industrial facilities — from offshore oil platforms and petrochemical refineries to underground mining operations and steel mill control rooms — analog output accuracy is non-negotiable. A single degraded output channel can cascade into process upsets, safety interlock failures, or unplanned shutdowns. The 3BSE018293R1 addresses this risk through robust hardware design, conformal-coated PCBs, and full compatibility with ABB’s AC800M controller family, ensuring that field devices such as control valves, variable frequency drives (VFDs), and electro-pneumatic positioners receive clean, stable command signals at all times.

TOPNLMS maintains verified stock of the ABB 3BSE018293R1 DSAO 120A, sourced through established industrial supply channels. Every unit undergoes pre-shipment functional verification before dispatch, and is covered by our 12-month replacement warranty — giving procurement engineers and maintenance planners the confidence to order critical spares without hesitation.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3BSE018293R1 DSAO 120A does not operate in isolation — it is a critical node within a broader S800 I/O architecture that demands equally rugged companion modules. In a typical ABB AC800M-based control cabinet, the DSAO 120A works in concert with the DSAI 130A (3BSE018291R1) analog input module to form a complete closed-loop process control layer, receiving sensor data and issuing corrective output commands to field actuators. Digital I/O functions are handled by modules such as the DSDO 115A (3BSE018298R1) and DSDI 110A (3BSE018295R1), which manage discrete valve commands and limit switch feedback respectively.

Communication integrity across the fieldbus backbone is maintained by the CI854A (3BSE030220R1) PROFIBUS DP communication interface module, which connects the S800 I/O cluster to the AC800M controller over a noise-immune, twisted-pair bus — essential in environments with heavy motor drives and welding equipment generating broadband EMI. Power distribution within the I/O station is managed by the SD821 (3BSC610037R1) 24 VDC power supply unit, engineered for continuous industrial duty with built-in overvoltage and short-circuit protection.

For safety-critical loops — such as emergency shutdown (ESD) systems or burner management — the AI830A (3BSE040662R1) safety-rated analog input module and the DI830A (3BSE008516R1) digital input module provide SIL 2-capable signal acquisition, complementing the DSAO 120A’s output functions in a layered safety architecture. Terminal connectivity is secured through ABB’s TB820V2 (3BSE013208R1) Modulebus modem and associated TU830V1 (3BSE013220R1) termination units, which allow hot-swap module replacement without interrupting field wiring — a decisive advantage during planned maintenance windows on continuous production lines.

In control cabinets where space and heat dissipation are constrained, the DSAO 120A’s compact DIN-rail form factor and low self-heating profile make it compatible with high-density I/O configurations alongside DSAX 110A (3BSE018300R1) auxiliary modules, ensuring that the full S800 I/O station remains within thermal limits even in poorly ventilated enclosures common in tropical or desert industrial sites.

Application in Critical Infrastructure

The ABB 3BSE018293R1 DSAO 120A has established a strong operational record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it provides precise analog command signals to control valve positioners on wellhead choke manifolds and pipeline pressure regulation stations, where signal drift or module failure can trigger costly safety shutdowns or regulatory non-compliance events. Its conformal coating and sealed connector design resist the corrosive hydrogen sulfide (H₂S) atmospheres common in sour gas processing plants.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the module governs turbine governor valve positioning and boiler feedwater control loops, where millisecond-level response and long-term output stability are mandatory. The S800 I/O platform’s redundancy options allow the DSAO 120A to be deployed in hot-standby configurations, ensuring zero-downtime failover for generation-critical control loops.

Underground mining operations subject control hardware to continuous mechanical shock and vibration from blasting and heavy equipment. The 3BSE018293R1’s IEC 60068-2-6 vibration compliance ensures that solder joints and connector contacts maintain integrity over multi-year deployment cycles without requiring frequent recalibration or replacement. Similarly, in water and wastewater treatment plants, the module controls dosing pump speed references and aeration blower output, operating reliably in high-humidity pump rooms where condensation is a persistent threat to unprotected electronics.

In metallurgical and steel production environments, where radiated heat from furnaces and induction heaters can push ambient temperatures to the upper limits of industrial specifications, the DSAO 120A’s 0–55 °C operating range and thermal management design ensure that analog output accuracy is maintained throughout the full production cycle — from cold startup to peak smelting operations.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the ABB 3BSE018293R1?
Every ABB 3BSE018293R1 DSAO 120A shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, we will arrange a replacement unit at no additional cost. Our warranty process is straightforward — contact our technical team with the order reference and a brief fault description, and we will initiate the replacement within one business day.

Q2: How is each unit tested before shipment?
All modules undergo a pre-shipment inspection protocol that includes visual examination for physical damage, connector integrity checks, and where test equipment permits, functional power-on verification. Units that do not pass inspection are quarantined and not dispatched. This process ensures that customers receive modules in confirmed serviceable condition, reducing the risk of receiving a DOA (dead-on-arrival) component in a time-critical maintenance scenario.

Q3: Is the 3BSE018293R1 compatible with my existing ABB AC800M or Symphony Plus DCS system?
Yes. The DSAO 120A is a native S800 I/O module fully compatible with ABB AC800M controllers (all firmware revisions supporting S800 I/O) and Symphony Plus DCS architectures using the S800 I/O fieldbus. It is also backward-compatible with earlier AC800F and Advant OCS systems that support the Modulebus protocol. If you are unsure about compatibility with a specific controller firmware version or I/O station configuration, our technical team can assist with verification before you place an order.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS specializes in the long-term supply of industrial automation spare parts, including legacy and current-generation ABB S800 I/O modules. We maintain buffer stock of high-demand components and can support blanket purchase orders, scheduled deliveries, and emergency expedite requests. For facilities running continuous production lines where unplanned downtime carries significant financial penalties, we recommend establishing a standing spare parts agreement to ensure the 3BSE018293R1 is always available when needed.
