ABB 3BSE003127R1 DSAI 130D Replacement/Upgrade Solution: Seamless Transition from Legacy Advant DCS

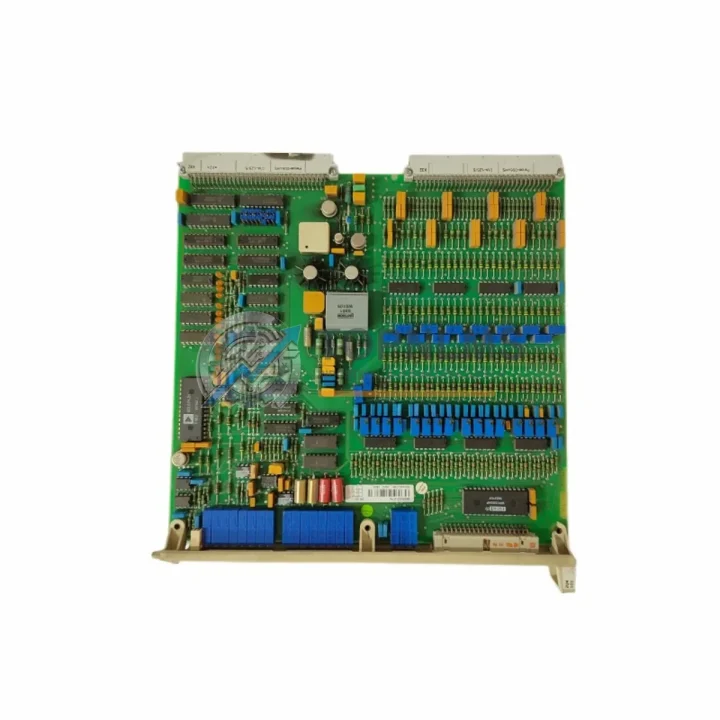

The ABB 3BSE003127R1 DSAI 130D is a 16-channel analog input module designed for the ABB Advant Controller series, widely deployed in process automation, power generation, oil & gas, and chemical plant DCS architectures. As ABB progressively phases out the Advant OCS and Master product lines in favor of the System 800xA platform, many facilities operating legacy Advant AC450, AC410, or AC160 controllers are now facing the critical challenge of sourcing reliable replacement modules or planning a structured migration path.

TOPNLMS specializes in supplying tested, verified, and immediately shippable replacement units for discontinued and hard-to-source ABB Advant components. Whether your plant requires a direct drop-in replacement to restore a failed channel card or you are executing a phased migration from the Advant platform to a modern DCS or hybrid control architecture, the DSAI 130D (3BSE003127R1) is available from stock with full functional verification and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration or replacement involving the DSAI 130D rarely involves a single module in isolation. In practice, field engineers replacing a failed analog input card in an Advant AC450 system will also need to verify the condition of adjacent components sharing the same S100 I/O rack. The TB820 termination unit and its associated field wiring harness should be inspected for corrosion or loose terminals before the new DSAI 130D is inserted, as degraded termination hardware is a common secondary cause of channel faults.

For plants running the Advant AC450 controller with multiple I/O racks, the DSAI 120 digital input module and DSAO 110 analog output module are frequently replaced in the same maintenance window, since these modules share the same rack bus and power distribution. Sourcing these alongside the DSAI 130D reduces total downtime and avoids repeat shutdowns.

Communication integrity between the I/O rack and the AC450 CPU depends on the DSMB 127 S100 bus modem board and the associated DSBC 172 bus connection unit. If the DSAI 130D replacement does not immediately restore correct analog readings in the AMPL or MasterView 800 engineering station, the bus modem and connection unit should be the next diagnostic step.

For facilities planning a longer-term migration from the Advant platform to ABB System 800xA or a third-party DCS, the CI854 PROFIBUS DP communication interface and S800 I/O modules (such as the AI810 8-channel analog input) represent the modern equivalents. A phased approach — maintaining the existing Advant S100 I/O infrastructure while gradually migrating supervisory control to System 800xA via the AC800M controller — is the most common low-risk migration strategy adopted by process plants seeking to avoid a full cutover shutdown.

For plants where the Advant system interfaces with third-party SCADA or safety systems via PROFIBUS DP or Modbus RTU, signal isolation may be required at the field terminal level. Signal isolators and loop-powered barriers compatible with 4–20 mA circuits are recommended when replacing DSAI 130D modules in hazardous area installations or where ground loop interference has been identified as a historical fault source.

HMI and operator station compatibility should also be confirmed. Legacy MasterView 800 operator stations running on OS/2 or early Windows NT platforms may require a display configuration update in AMPL after the module replacement if the new DSAI 130D carries a different hardware revision. Plants that have already migrated their operator interface to ABB Operate IT or a modern OPC-DA/UA gateway will find the transition more straightforward.

Retrofit Guidance FAQ

Q: Is the 3BSE003127R1 DSAI 130D a direct slot-for-slot replacement for the DSAI 130 (3BSE003125R1)?
A: In the vast majority of Advant AC450 and AC410 installations, yes. Both modules occupy a single slot in the S100 I/O rack and use the same TB820 termination unit. Verify that the CPU firmware revision supports the DSAI 130D hardware revision — this information is available in the Advant Controller 450 I/O Module Compatibility List (ABB document 3BSE002413).

Q: Do I need to modify field wiring when replacing a DSAI 130 with a DSAI 130D?
A: No wiring changes are required if the existing TB820 termination unit is retained. The channel-to-terminal mapping is identical. If the TB820 itself is being replaced, refer to the original loop drawings to confirm shield grounding practice.

Q: Will the AMPL application program require changes after the module swap?
A: A direct hardware replacement does not require AMPL code changes. The module is recognized automatically by the AC450 CPU during the next I/O scan cycle. A forced download of the I/O configuration from the engineering station is recommended as a precaution after any hardware replacement.

Q: What communication protocol does the DSAI 130D use?
A: The DSAI 130D communicates via the ABB proprietary S100 I/O bus. It is not a PROFIBUS or Modbus device. Integration with external systems requires a gateway or communication interface module at the controller level.

Q: How much physical space does the module require in the control cabinet?
A: The DSAI 130D is a standard single-slot Advant S100 module. No additional cabinet space or DIN rail modification is required. The module slides directly into the existing rack slot vacated by the failed unit.

Q: Can this module be used in a System 800xA migration project?
A: The DSAI 130D is an Advant-platform module and is not natively compatible with System 800xA S800 I/O racks. However, it can continue to operate within an Advant I/O sub-system that is supervised by an AC800M controller running the Advant OCS connectivity server, which is a common interim architecture during phased migrations.

Warranty Assurance

Every ABB 3BSE003127R1 DSAI 130D unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a multi-point functional verification process including power-on self-test, channel-level signal injection testing across the full 4–20 mA range, and visual inspection for component condition and connector integrity.

Units are shipped in anti-static packaging with individual serial number documentation. Express international shipping is available from our Xiamen warehouse, with typical lead times of 3–7 business days to most destinations in Asia, Europe, and the Americas. Expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

In the event of a warranty claim, TOPNLMS provides advance replacement support — a verified replacement unit is dispatched before the faulty module is returned, minimizing plant downtime. Our technical team is available to assist with installation verification, compatibility confirmation, and post-installation commissioning support via email and phone.

For volume procurement, long-term supply agreements, and project-based sourcing of Advant platform spares, please contact our industrial automation parts team directly.
