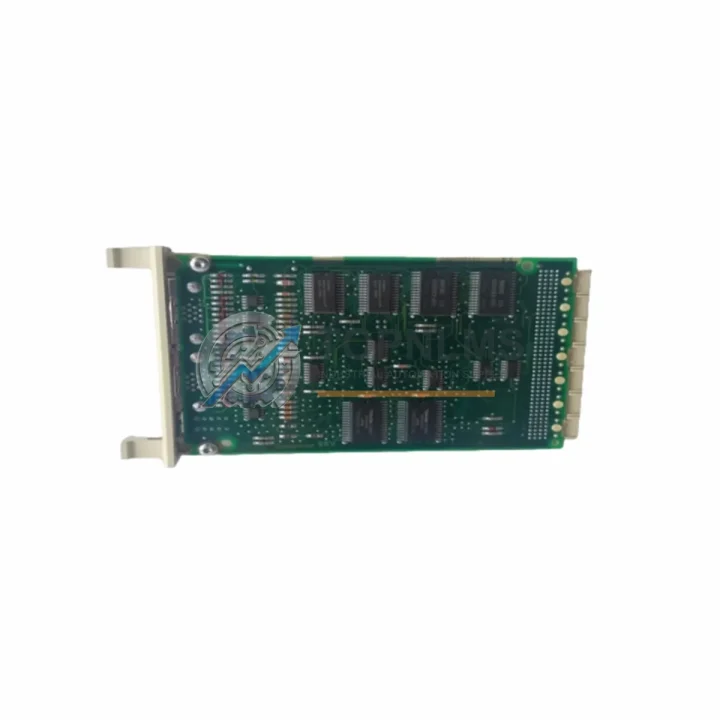

ABB 3BSE000566R1 AX670 Ruggedized Analog I/O Module

Product Overview

ABB 3BSE000566R1 AX670 Ruggedized Analog I/O Module: Industrial Resilience for Harsh Environments

The ABB 3BSE000566R1 AX670 is a high-performance Analog Mixed I/O Module engineered as part of ABB’s renowned S800 I/O Series — a platform trusted across the most demanding industrial automation environments worldwide. Designed to interface seamlessly with ABB’s AC800M DCS controller and compatible with the S800 I/O bus, the AX670 delivers precise, stable analog signal processing under conditions that would compromise lesser hardware: extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI).

In continuous production environments — petrochemical refineries, offshore platforms, underground mining operations, and high-voltage power substations — signal integrity is not a preference; it is a safety requirement. The 3BSE000566R1 AX670 is built to that standard. Its mixed analog I/O architecture supports both input and output channels on a single module, reducing cabinet footprint while maintaining full galvanic isolation between channels. This makes it an ideal choice for engineers consolidating control cabinet space without sacrificing redundancy or measurement accuracy.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3BSE000566R1 AX670 does not operate in isolation — it is a critical node within a broader, integrated control architecture. In a typical S800-based DCS cabinet, the AX670 works alongside the ABB TB820V2 ModuleBus Optical Port Module to extend the I/O bus over fiber-optic links, eliminating ground loop interference across long cable runs in electrically noisy environments such as arc furnace facilities or high-voltage switchyards.

For power conditioning and protection of the entire I/O rack, the ABB SD821 Power Supply Unit provides regulated 24 VDC to the S800 bus, ensuring that voltage transients from heavy motor starts or capacitor bank switching do not propagate into the analog measurement chain. Paired with the ABB CI854A PROFIBUS DP Interface Module, the AX670 can participate in distributed PROFIBUS networks, enabling real-time data exchange with third-party PLCs, SCADA systems, and variable frequency drives (VFDs) from multiple vendors.

In safety-instrumented systems (SIS), the AX670 is frequently deployed alongside ABB AI810 Analog Input Modules and ABB AO810V2 Analog Output Modules to form redundant measurement and actuation loops. These loops feed into ABB AC800M High Integrity (AC800M HI) safety controllers, which execute IEC 61511-compliant safety functions for emergency shutdown (ESD) and process safety management. The combination of the AX670’s mixed I/O capability with dedicated safety-rated modules allows engineers to design lean, cost-effective SIS architectures without compromising SIL 2 or SIL 3 integrity levels.

Terminal connectivity is managed through ABB TB807 I/O Terminal Units, which provide field-wiring termination points that can be disconnected from the module without disturbing field cables — a critical feature during hot-swap maintenance on live production lines. For communication-intensive applications, the ABB CI840A PROFINET I/O Module extends the S800 system into Ethernet-based plant networks, supporting integration with MES and ERP platforms. Surge protection for field signal cables is typically provided by dedicated DIN-rail surge arresters installed at the cabinet entry point, protecting the AX670’s analog inputs from lightning-induced transients in outdoor or exposed installations.

Application in Critical Infrastructure

The ABB 3BSE000566R1 AX670 has established a strong operational record across the most demanding sectors of critical infrastructure:

Oil & Gas: On offshore production platforms and onshore gas processing terminals, the AX670 monitors pressure transmitters, flow meters, and temperature sensors in hazardous classified zones. Its robust EMI shielding and galvanic isolation prevent false readings caused by high-power electrical equipment operating in close proximity — a common challenge in compressor stations and wellhead control panels.

Power Generation & Transmission: In coal-fired, gas turbine, and hydroelectric power plants, the AX670 interfaces with turbine control systems, providing real-time analog feedback for load regulation, steam pressure control, and generator excitation management. Its ability to maintain signal accuracy under the intense electromagnetic fields generated by large transformers and bus bars makes it a preferred choice for substation automation engineers.

Mining & Mineral Processing: Underground mining environments subject control hardware to constant mechanical vibration from blasting, drilling, and conveyor operations, combined with high levels of airborne silica dust and moisture. The AX670’s vibration-rated design and sealed module housing allow it to function reliably in these conditions, supporting conveyor belt control, crusher automation, and ventilation management systems.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants rely on precise analog measurement for pH, dissolved oxygen, turbidity, and flow control. The AX670 provides the measurement resolution and long-term stability required for regulatory compliance monitoring, operating continuously in high-humidity pump rooms and chemical dosing areas.

Metallurgy & Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the AX670 withstands extreme thermal cycling and electromagnetic interference from high-current bus systems. It supports temperature profiling, hydraulic pressure control, and cooling water flow monitoring — all critical to product quality and equipment protection in 24/7 production environments.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB 3BSE000566R1 AX670?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Every module undergoes functional testing prior to dispatch, including analog channel verification, bus communication checks, and visual inspection for physical integrity. Warranty claims are handled directly by our technical team with replacement or repair turnaround commitments.

Q2: How is the module tested before shipment?
Each 3BSE000566R1 AX670 is bench-tested using ABB-compatible S800 I/O test rigs. Testing covers analog input accuracy across the full signal range (4–20 mA / 0–10 V), analog output linearity, channel isolation verification, and ModuleBus communication handshake. A test report is available upon request for quality-critical procurement processes.

Q3: Is the AX670 compatible with my existing ABB AC800M or S800 I/O system?
Yes. The 3BSE000566R1 AX670 is a direct fit for all standard S800 I/O racks and is fully compatible with ABB AC800M controllers running Compact Control Builder (CCB) software. It is also backward-compatible with earlier S800 system revisions. If you require confirmation of compatibility with a specific system configuration or firmware version, our technical team can advise prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 3BSE000566R1?
Yes. TOPNLMS maintains dedicated stock of ABB S800 I/O series modules, including the AX670, to support planned maintenance programs, emergency spares, and capital project procurement. We offer volume pricing for repeat orders and can provide lead-time commitments for scheduled maintenance shutdowns. Contact us to discuss a supply agreement tailored to your plant’s spare parts strategy.
