ABB 3BHT300054R3/A Replacement Solution for XI-11 Series

Product Overview

ABB 3BHT300054R3/A Replacement Solution for XI-11 Series: Smooth Migration from Legacy Press Control Systems

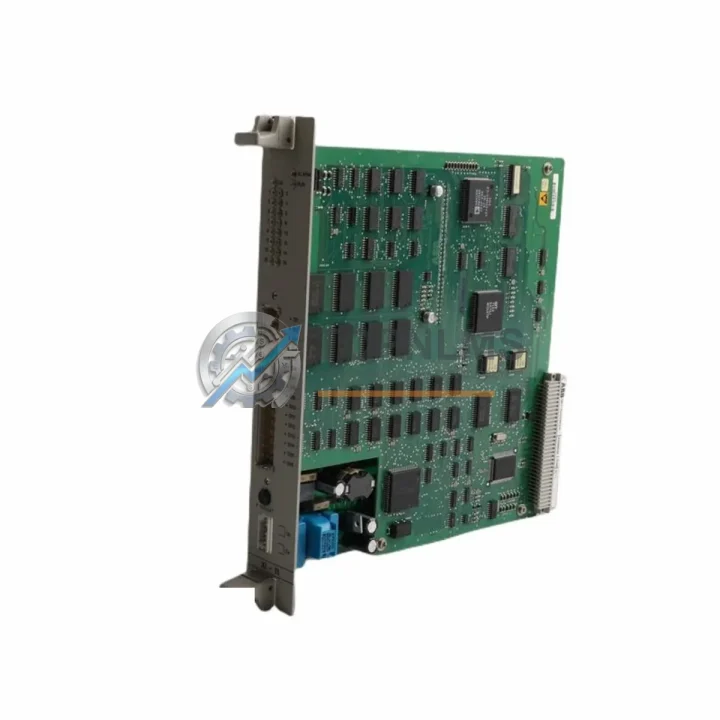

The ABB 3BHT300054R3/A is a Press Transform Board engineered for the XI-11 Series press control platform — one of ABB’s established architectures widely deployed in industrial press lines, metal forming operations, and heavy manufacturing environments. As original equipment ages and OEM support windows close, facilities running legacy XI-11 press controllers face increasing pressure to source verified replacement boards that maintain full electrical and functional compatibility without requiring costly re-engineering of the surrounding control cabinet.

TOPNLMS supplies the 3BHT300054R3/A as a direct replacement module, sourced from verified channels and subject to pre-shipment functional inspection. Each unit is dispatched with a 12-month warranty, providing procurement teams and maintenance engineers with the confidence needed to approve the purchase and schedule planned or emergency maintenance windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 3BHT300054R3/A Press Transform Board is rarely an isolated task. In most XI-11 press control environments, the board operates as part of a tightly integrated control architecture. During planned maintenance or emergency replacement, engineers frequently need to address adjacent components to ensure the entire system returns to full operational status.

In many installations, the Press Transform Board interfaces directly with the ABB XI-11 Main Controller Board and the associated XI-11 I/O Expansion Module, which handle the upstream logic processing and downstream field signal routing respectively. If the transform board has failed due to power surge or prolonged thermal stress, it is prudent to inspect the ABB 24VDC Power Supply Module feeding the XI-11 rack, as shared power rail faults are a common root cause of cascading board failures in press control cabinets.

For facilities that have already begun migrating their press lines toward ABB’s newer control platforms, the 3BHT300054R3/A can serve as a bridging solution — maintaining production continuity on the existing XI-11 press while the broader migration to an ABB AC500 PLC or ABB Ability™ System 800xA DCS is planned and staged. This approach avoids the high cost and production risk of a full cutover, allowing engineering teams to validate the new architecture on non-critical press lines first.

Communication integrity is another key consideration. The XI-11 press control system typically exchanges data with upstream SCADA or MES layers via PROFIBUS DP or hardwired I/O. When replacing the transform board, verify that the ABB PROFIBUS DP Communication Module (if installed) is correctly addressed and that the GSD file configuration in the SCADA host remains unchanged. No re-parameterization of the communication layer is required for a like-for-like board swap.

Physical installation space is a common concern in older press control cabinets where clearances are tight. The 3BHT300054R3/A maintains the same PCB footprint and connector positions as the outgoing revision, meaning no modifications to the XI-11 Backplane or Rack Assembly are necessary. Technicians should follow standard ESD precautions, power down the cabinet via the main isolator, and confirm the ABB Emergency Stop Circuit Module is in the safe state before commencing the swap.

For facilities requiring a complete press control cabinet refresh, TOPNLMS can also source the ABB HMI Panel PP865 and associated ABB Signal Isolator Modules that are commonly paired with XI-11 press systems, enabling a coordinated multi-component procurement that reduces lead time and simplifies incoming inspection.

Retrofit Guidance FAQ

Q: Does replacing the 3BHT300054R3/A require any wiring changes?
A: No. The replacement board uses the same terminal block pinout as the outgoing XI-11 Press Transform Board revision. Existing field wiring can be reconnected directly without modification.

Q: Will the PLC program need to be reloaded or modified after the swap?
A: A like-for-like board replacement does not require changes to the PLC application program. The control logic residing in the XI-11 Main Controller is unaffected. However, it is good practice to verify I/O diagnostics after power-up to confirm all channels are reading correctly.

Q: Is the 3BHT300054R3/A compatible with both PROFIBUS DP and hardwired I/O configurations?
A: Yes. The Press Transform Board operates at the signal conditioning layer and is protocol-transparent. Whether your XI-11 system uses PROFIBUS DP for upstream communication or relies entirely on hardwired I/O, the board replacement does not affect the communication architecture.

Q: What if the cabinet has limited space — will the new board fit?
A: The 3BHT300054R3/A is dimensionally identical to the outgoing revision. No cabinet modifications, bracket changes, or DIN-rail repositioning are required.

Q: How do I confirm the board is functioning correctly after installation?
A: After power-up, check the XI-11 system diagnostic LEDs and verify that all press I/O channels report expected states in the SCADA or HMI. TOPNLMS recommends a no-load functional test before returning the press line to production.

Warranty Assurance

Every ABB 3BHT300054R3/A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection to verify physical integrity, connector condition, and board-level functionality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] or +86 18359293191 with your order reference and a description of the fault. Our team will assess the claim and arrange a replacement dispatch or credit, depending on your preference and urgency.

We maintain stock of the 3BHT300054R3/A to support both planned procurement and emergency breakdown scenarios. Orders confirmed before the daily cut-off are prioritized for same-day or next-business-day dispatch. International shipments are handled via tracked express freight, with documentation packages available for customs clearance in major industrial markets.

TOPNLMS is committed to supporting industrial facilities through the full lifecycle of their control system assets — from sourcing hard-to-find replacement boards to advising on phased migration strategies that minimize production risk and capital expenditure.
