ABB 3BHE043576R0011 Ruggedized Voltage Regulator Module for Harsh Environments

Product Overview

ABB 3BHE043576R0011 Ruggedized Voltage Regulator Module for Harsh Environments

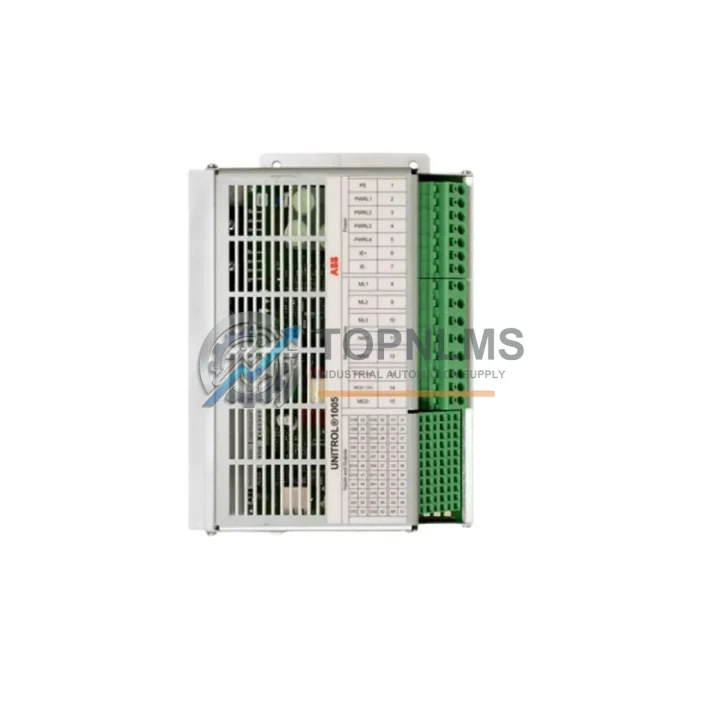

The ABB UNITROL 1005-0011 ECO (3BHE043576R0011) is a precision-engineered Automatic Voltage Regulator (AVR) from ABB’s industry-proven UNITROL 1000 Series. Designed to operate reliably in demanding industrial environments — including high-temperature generator rooms, high-humidity coastal facilities, dusty mining sites, and electrically noisy heavy-industry plants — this module delivers stable excitation control for synchronous generators across a wide range of critical infrastructure applications. Whether you are managing a planned maintenance shutdown or responding to an unplanned generator trip, having a verified original spare of the 3BHE043576R0011 on hand is a cornerstone of any robust power reliability strategy.

The UNITROL 1005-0011 ECO is engineered to withstand the electromagnetic interference (EMI) common in switchgear rooms and industrial substations, the mechanical vibration present in rotating machinery environments, and the thermal cycling inherent in continuous-duty power generation. Its compact form factor and DIN-rail-compatible mounting make it straightforward to install in existing control cabinets without structural modification, minimising downtime during replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

A generator excitation system is only as reliable as its weakest component. When inspecting or replacing the UNITROL 1005-0011 ECO (3BHE043576R0011), experienced maintenance engineers routinely audit the surrounding control architecture to prevent cascading failures. Within the same ABB UNITROL 1000 excitation panel, the UNITROL 1010 power interface module and the UNITROL 1020 field flashing unit are subject to the same thermal and electrical stresses and should be evaluated simultaneously. The ABB SDCS-CON-4 converter control board, commonly found in adjacent DC drive cabinets sharing the same MCC room, is another component worth inspecting during any planned outage.

On the power supply side, the ABB CP-E 24/5.0 DIN-rail power supply feeding the AVR’s auxiliary circuits should be load-tested to confirm it is delivering stable 24 V DC within tolerance — a degraded power supply is a frequent root cause of intermittent AVR faults that are misdiagnosed as AVR module failures. Similarly, the Phoenix Contact QUINT-PS series power supply used in many hybrid control cabinets warrants inspection if the facility uses mixed-brand architecture.

For communication integrity, if the UNITROL 1000 system is integrated into a plant DCS via Modbus RTU over RS-485, the ABB CI854A Modbus communication interface module or equivalent gateway should be verified for firmware version compatibility after any AVR replacement. In facilities running ABB’s AC800M controller platform, the PM864A processor module managing the generator control loop should also be confirmed as operating within its rated cycle time after the AVR is swapped.

Protective relay coordination is equally critical. The ABB REG670 generator protection relay — or its predecessor the SPAG 343C in older installations — interfaces directly with the excitation system for under-excitation limiting and loss-of-field protection. Any AVR replacement should be followed by a functional test of these relay elements to confirm correct setpoint interaction. Terminal blocks, specifically ABB ENTRELEC SNK 10 series or equivalent, connecting the AVR’s sensing and output wiring should be inspected for oxidation and re-torqued to manufacturer specification.

Application in Critical Infrastructure

The ABB UNITROL 1005-0011 ECO finds its most demanding service in sectors where generator reliability is non-negotiable. In oil and gas offshore platforms and onshore processing facilities, the AVR must maintain generator terminal voltage within tight limits despite rapidly fluctuating loads from compressor motors, electric submersible pumps, and HVAC systems — all while enduring salt-laden, corrosive atmospheres. The 3BHE043576R0011’s robust design and sealed electronics make it well-suited to these conditions.

In mining operations — both open-pit and underground — where diesel generator sets provide primary or backup power, the UNITROL 1005-0011 ECO manages voltage stability during the high-inrush starting of large conveyor drives, ventilation fans, and dewatering pumps. The module’s field-forcing capability ensures rapid voltage recovery after motor starting transients, protecting sensitive instrumentation and control systems downstream.

Power utilities and independent power producers (IPPs) rely on the UNITROL 1000 Series for small-to-medium hydro, gas turbine, and diesel generator excitation. The AVR’s reactive power (VAR) control mode enables precise power factor management for grid-connected operation, reducing penalty charges from grid operators and improving overall plant efficiency.

In water treatment and wastewater facilities, where continuous operation is mandated by environmental regulations, the 3BHE043576R0011 provides the voltage stability needed to run high-efficiency pump motors and blower drives without nuisance trips. Metallurgical and steel plants benefit from the module’s EMI immunity in environments saturated with high-frequency noise from arc furnaces, induction heaters, and large variable-frequency drives.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, functional failures under normal operating conditions, and component-level faults. Each unit undergoes functional testing prior to dispatch, and a test report is available upon request. In the event of a warranty claim, we provide replacement or full refund after fault verification.

Q2: How is the 3BHE043576R0011 tested before shipment?
Every UNITROL 1005-0011 ECO unit is bench-tested for auxiliary power input range, output voltage regulation accuracy, communication interface continuity, and protective function response before packaging. Units that do not meet ABB’s published specifications are quarantined and not shipped. Packaging includes anti-static protection, moisture-barrier bags, and foam-lined cartons to prevent transit damage.

Q3: Is this module compatible with my existing UNITROL 1000 excitation system?
The 3BHE043576R0011 is the standard ECO variant of the UNITROL 1005 AVR and is designed as a direct replacement within the UNITROL 1000 Series excitation architecture. Compatibility should be confirmed against your generator’s excitation system nameplate and the existing wiring diagram. If you provide your generator rating, existing AVR part number, and control panel drawing number, our technical team can confirm compatibility before you commit to purchase.

Q4: What is your lead time and can you support long-term supply?
In-stock units ship within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide, with tracking provided. For customers requiring ongoing supply — such as utilities or EPC contractors managing multi-site generator fleets — we support blanket purchase orders and reserved inventory arrangements. Contact our team to discuss volume pricing and long-term supply agreements.
