ABB 3BHE039905R0101 LTC745A101 Original Industrial Spare UNITROL Compatible

Product Overview

ABB 3BHE039905R0101 LTC745A101 Original Industrial Spare UNITROL Compatible: System Stability & Industrial Spare Parts Maintenance Value

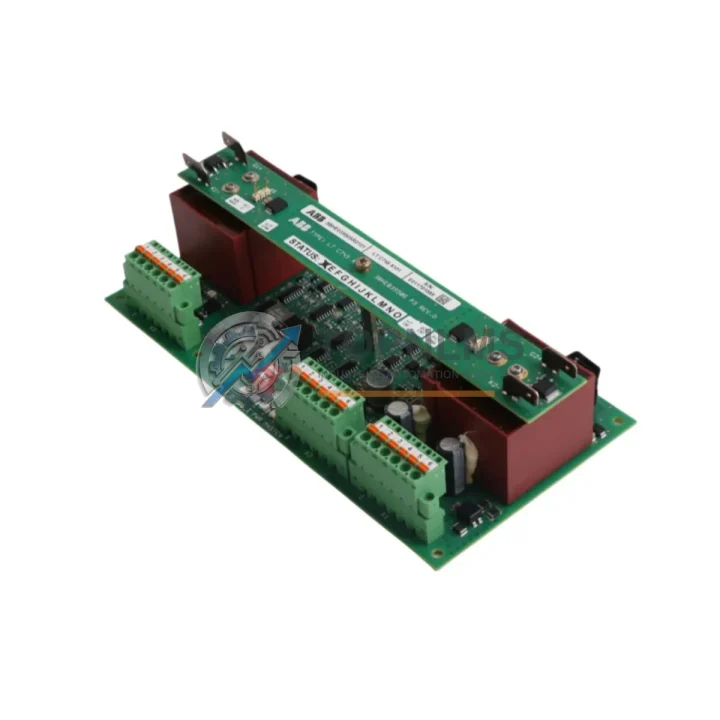

The ABB 3BHE039905R0101 LTC745A101 is an original excitation control board designed for ABB’s UNITROL Automatic Voltage Regulator (AVR) systems — a mission-critical component in generator excitation control circuits across power generation, heavy industry, and process automation facilities. When this board fails or degrades, the consequences extend far beyond a single module: voltage instability, generator trip events, and unplanned downtime can cascade across an entire production line or power distribution network. Sourcing a verified original replacement — not a counterfeit or incompatible substitute — is the first and most important step in restoring system integrity.

At TOPNLMS, every 3BHE039905R0101 LTC745A101 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We maintain ready stock to support emergency maintenance windows, planned shutdowns, and long-term spare parts inventory programs for facilities running ABB UNITROL AVR platforms.

Critical Technical Specs

Preventive Maintenance Strategy

Excitation control board failures rarely occur in isolation. In most UNITROL AVR cabinet inspections, maintenance engineers find that adjacent components have been operating under stress for extended periods — often because the excitation board was absorbing voltage fluctuations or compensating for degraded upstream components. A disciplined preventive maintenance strategy for any facility running ABB UNITROL systems should treat the 3BHE039905R0101 LTC745A101 as part of a broader inspection and replacement cycle.

During scheduled shutdowns or corrective maintenance events involving this board, it is strongly recommended to simultaneously inspect and — where service life indicators suggest — replace the ABB UNITROL power supply module (typically the PSM or PSU board within the same cabinet), as power supply degradation is a leading cause of excitation board stress. The UNITROL pulse transformer board and firing circuit board share the same excitation signal path and should be checked for thermal discoloration, capacitor bulge, or relay contact wear.

Field engineers should also verify the condition of the ABB UNITROL measurement board (voltage and current sensing module), which feeds reference signals directly to the LTC745A101. A drifting measurement board can cause the excitation control board to operate outside its design envelope, accelerating wear. At the same time, inspect the UNITROL communication interface module — particularly in facilities using MODBUS or PROFIBUS integration — as communication faults can mask excitation alarms and delay fault detection.

Beyond the AVR cabinet itself, the broader generator control loop should be reviewed. The ABB generator protection relay (such as the REG series) and associated current transformer (CT) wiring terminals should be checked for loose connections, which can introduce measurement noise into the excitation feedback loop. Surge protection modules installed on the excitation transformer secondary should be tested for degradation, as a failed surge suppressor can expose the LTC745A101 to transient overvoltages during grid disturbances.

For facilities managing aging UNITROL installations, it is also prudent to maintain a small buffer stock of ABB UNITROL I/O interface boards, analog signal conditioning modules, and field flashing resistor assemblies. These components are increasingly difficult to source on short notice as the UNITROL platform matures, and a single missing part during a forced outage can extend downtime by days. Proactive inventory planning — even for low-failure-rate components — is a recognized best practice in power plant and heavy industrial maintenance programs.

Strategic Replacement Solutions

The 3BHE039905R0101 LTC745A101 is a direct original replacement for aging or failed LTC745A-series excitation control boards in ABB UNITROL AVR systems. Unlike third-party alternatives or refurbished boards of uncertain provenance, an original ABB board ensures full firmware and hardware compatibility with the existing UNITROL platform — no parameter re-mapping, no signal calibration offsets, and no risk of incompatibility with the UNITROL supervisory software.

For facilities that have been operating UNITROL systems for 10–20 years, the LTC745A101 board may no longer be available through standard ABB distribution channels, making specialist industrial spare parts suppliers the primary — and often only — reliable source. TOPNLMS maintains stock specifically to serve this gap: supporting legacy system life extension programs, reducing mean time to repair (MTTR) during unplanned outages, and enabling facilities to defer costly full AVR system upgrades while maintaining safe, stable generator operation.

Replacement is straightforward for qualified electrical maintenance personnel: the board is a plug-in module within the UNITROL cabinet, and with the correct replacement unit on hand, a trained technician can complete the swap within a standard maintenance window. TOPNLMS provides pre-shipment functional testing documentation upon request, and our technical team can assist with compatibility verification for specific UNITROL cabinet configurations before purchase.

Support FAQ

Q1: Is the 3BHE039905R0101 LTC745A101 compatible with all UNITROL AVR cabinet variants?
The LTC745A101 board is designed for ABB UNITROL AVR systems using the LTC745A series excitation control architecture. It is compatible with UNITROL 1000, 5000, and 6000 series cabinets that specify this board designation. For non-standard or customized UNITROL configurations, please contact us with your cabinet serial number and we will verify compatibility before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a brief description of the fault symptom.

Q3: How is the board tested before shipment?
Every 3BHE039905R0101 LTC745A101 unit undergoes a pre-shipment inspection that includes visual examination for physical damage, continuity testing of key signal paths, and functional verification where test equipment permits. A test report is available upon request for customers with specific incoming inspection requirements.

Q4: What is the recommended spare parts inventory strategy for UNITROL AVR systems?
For facilities with one or more UNITROL AVR systems, we recommend maintaining at minimum one spare LTC745A101 excitation control board on-site, alongside a spare power supply module and measurement board. For critical power generation assets where downtime cost is high, a complete spare board set covering the full UNITROL cabinet is the industry-standard approach. TOPNLMS can assist with spare parts planning and bulk procurement pricing — contact us to discuss your facility’s specific requirements.
