ABB 3BHE032025R0101 PCD235 A101 Replacement Solution: Smooth Transition from Legacy Excitation Systems

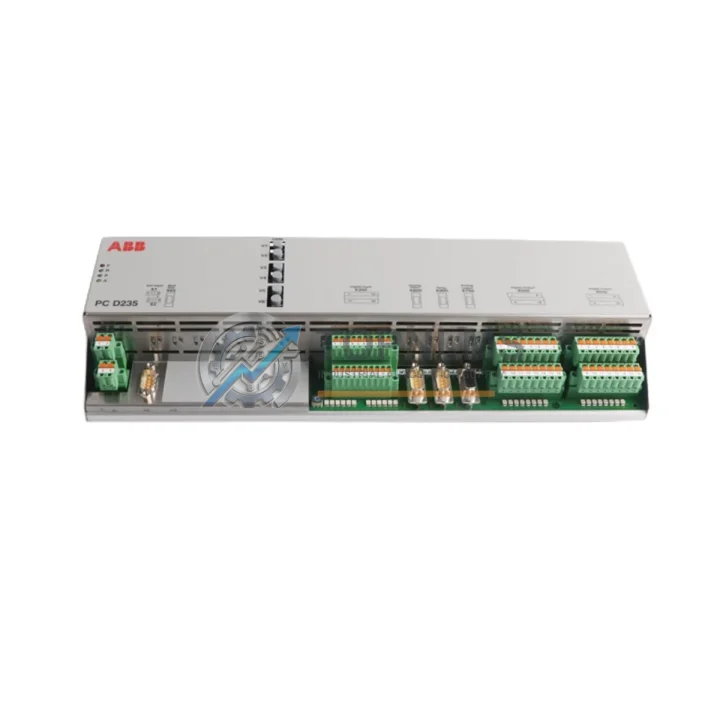

The ABB 3BHE032025R0101 PCD235 A101 is a high-performance excitation control module designed for ABB’s UNITROL excitation system platform. As legacy generator excitation systems reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to identify verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with the broader control architecture.

This module serves as a direct replacement or functional upgrade for discontinued and aging excitation control boards within the UNITROL 5000 and UNITROL 6000 series. Whether your facility is operating a hydroelectric generator, a gas turbine plant, or an industrial synchronous motor drive, the PCD235 A101 integrates into existing control cabinets with minimal modification to field wiring, terminal assignments, and communication backplane connections.

The 3BHE032025R0101 SKU is fully traceable and cross-referenced against ABB’s excitation system documentation. Procurement teams can verify compatibility against the original system BOM before committing to a purchase, reducing the risk of misidentification that is common with legacy excitation hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful excitation system migration rarely involves a single module swap. In practice, field engineers replacing the 3BHE032025R0101 often find that adjacent components in the same UNITROL rack or control cabinet also require attention. The PCD235 A101 is typically installed alongside the ABB PCD231 power interface board and the ABB PCD232 measurement input module, both of which share the same backplane and must be confirmed operational before commissioning the replacement excitation controller.

For sites upgrading from older UNITROL 3000 or UNITROL 5000 installations, the transition may also involve replacing the ABB 3BHE022852R0101 PCD230 base controller board, which handles the core AVR algorithm and communicates with the PCD235 over the internal rack bus. Ensuring firmware version alignment between the PCD230 and PCD235 A101 is a critical commissioning step that should be verified using the ABB CMT software tool before energizing the excitation circuit.

Communication with the plant DCS or SCADA system is typically handled through a dedicated ABB UNITROL communication gateway module or a Modbus RTU / PROFIBUS DP interface card mounted in the same excitation cubicle. When replacing the PCD235 A101, engineers should verify that the communication node address and baud rate settings are preserved or reconfigured to match the existing DCS mapping — particularly in plants running ABB Symphony Plus or ABB 800xA distributed control systems.

On the field wiring side, the excitation transformer secondary connections, the generator terminal voltage sensing inputs, and the field current feedback signals all terminate at the ABB XU terminal block assembly within the excitation cubicle. These connections are typically retained without modification during a PCD235 A101 replacement, provided the original wiring documentation is available and the terminal numbering matches the replacement module’s I/O map.

For plants that also need to address aging power thyristor bridges or firing pulse boards within the same excitation cabinet, the ABB 3BHE004573R0001 UFC760BE101 firing pulse unit and associated ABB 3BHE006373R0001 thyristor gate driver boards are commonly sourced alongside the PCD235 A101 to complete a full excitation system overhaul in a single planned outage window. Sourcing these components together reduces the number of separate maintenance windows required and lowers the total cost of the modernization project.

Retrofit Guidance FAQ

Q: Can the 3BHE032025R0101 PCD235 A101 be installed without modifying existing field wiring?
A: In the majority of UNITROL 5000 installations, the PCD235 A101 slots directly into the existing rack position with no field wiring changes required. Terminal assignments are preserved from the original module design. However, engineers should always verify the site-specific wiring diagram against the replacement module’s I/O specification sheet before installation.

Q: Is the PCD235 A101 compatible with ABB CMT configuration software?
A: Yes. The module is configured using ABB’s standard CMT (Commissioning and Maintenance Tool) software. Parameter sets from the original module can typically be exported and re-imported after replacement, significantly reducing commissioning time.

Q: What communication protocols does this module support?
A: The PCD235 A101 communicates over the ABB UNITROL internal backplane bus. External DCS communication is handled by a separate gateway or fieldbus interface module within the excitation cubicle, supporting Modbus RTU, PROFIBUS DP, or IEC 61850 depending on the site configuration.

Q: How much physical space does the replacement require in the control cabinet?
A: The PCD235 A101 occupies the same rack slot as the original module. No additional cabinet space or mounting hardware is required for a like-for-like replacement.

Q: What should be checked before energizing the excitation system after replacement?
A: Verify firmware version compatibility between all PCD-series boards in the rack, confirm communication node addresses, validate field wiring continuity, and perform a no-load excitation test before connecting to the generator under load. ABB’s commissioning checklist for the UNITROL platform should be followed in full.

Warranty Assurance

Every ABB 3BHE032025R0101 PCD235 A101 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification and visual inspection to confirm it meets the original ABB specification. Units are shipped in anti-static protective packaging with full traceability documentation.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1–2 business days. Our technical team can assist with pre-installation compatibility verification, commissioning guidance, and post-installation troubleshooting to ensure your excitation system returns to full operation as quickly as possible.

Stock is maintained in Xiamen, China, with express international shipping available to most destinations. Lead times for in-stock units are typically 3–7 business days door-to-door. For urgent plant outage situations, expedited shipping options are available on request.

For procurement inquiries, compatibility verification, or technical support, contact our industrial automation team directly.
