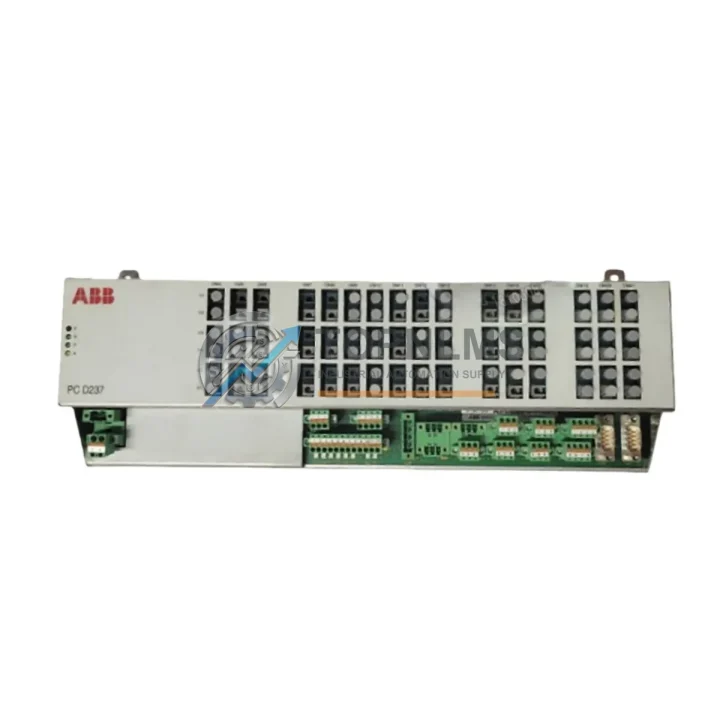

ABB 3BHE028915R0101 PCD237 A101 Replacement for ACS6000: Seamless Drive System Upgrade

When your ABB ACS6000 medium-voltage drive system faces an unplanned shutdown due to a failed or end-of-life drive controller board, every hour of downtime translates directly into production loss. The ABB 3BHE028915R0101 PCD237 A101 is the OEM drive controller board engineered for the ACS6000 series — one of ABB’s most widely deployed high-power variable-speed drive platforms in industries ranging from oil & gas compression, marine propulsion, and mining hoists to large-scale pump and fan applications.

TOPNLMS maintains verified stock of the 3BHE028915R0101 PCD237 A101, fully tested and ready for immediate dispatch from our Xiamen facility. Whether you are executing a like-for-like board swap on a failed unit, upgrading aging drive electronics ahead of a planned maintenance window, or building a critical spare inventory strategy, this page provides the technical and procurement information you need to make a confident purchasing decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS6000 drive controller board replacement rarely involves a single component in isolation. In practice, field engineers and procurement teams working on ACS6000 modernization projects frequently address several interconnected subsystems at the same time to maximize the value of each planned maintenance window and reduce the risk of secondary failures.

The PCD237 A101 controller board operates within the ACS6000’s modular drive rack alongside the APBU-44C pulse encoder interface unit, which handles encoder feedback from the motor shaft. If the drive has been in service for more than a decade, the APBU-44C is a common concurrent replacement item. Similarly, the AINT-02C inverter control board — responsible for IGCT gate drive signal distribution — is often inspected and replaced as part of the same intervention, since both boards share the same internal DDCS fiber-optic communication backbone.

On the power supply side, the APOW-01C auxiliary power supply module provides the 24 VDC rail that feeds the controller board and associated logic cards. A degraded APOW-01C can cause intermittent controller resets that mimic a faulty PCD237 board, so verifying or replacing the power supply module before or alongside the controller board is standard practice. The AGPS-21C gate power supply unit, which drives the IGCT thyristor stacks, is another component that experienced maintenance teams stock as a critical spare when servicing ACS6000 cabinets.

For sites migrating from an older AC800PEC controller architecture to a refreshed control platform, the PM866 processor module and its associated TB840 PROFIBUS communication interface are often part of the broader upgrade scope. The AC800PEC controller communicates with the ACS6000 drive via the DDCS protocol, and ensuring the controller firmware and the PCD237 A101 board revision are aligned is a key commissioning checkpoint.

Fiber-optic DDCS link cables — specifically the RDCO-03C optical communication module — are frequently replaced during the same outage window, as fiber connectors and transceivers degrade over time and can introduce communication faults that are difficult to distinguish from board-level failures. Replacing the RDCO-03C alongside the PCD237 A101 eliminates this diagnostic ambiguity and restores full communication integrity between the drive and the AC800PEC controller.

Finally, for sites that operate ACS6000 drives in parallel multi-drive configurations, the NDBU-95C DDCS branching unit — which distributes the fiber-optic control signals across multiple drive modules — should be inspected as part of any controller board replacement project to ensure system-wide communication stability after the new board is commissioned.

Retrofit Guidance FAQ

Q: Can I replace the PCD237 A101 board without reprogramming the drive?
A: In most cases, yes. The PCD237 A101 is a direct revision replacement for earlier PCD237 variants. The drive parameters are stored in the AC800PEC controller, not on the board itself, so a board swap typically does not require a full parameter download. However, you should verify the firmware version compatibility between the new board and your existing ACS6000 software release before powering up.

Q: Are the wiring and connector interfaces identical to the previous board revision?
A: Yes. The PCD237 A101 uses the same OEM backplane connector layout as earlier revisions. No rewiring, adapter cables, or cabinet modifications are required for a standard replacement.

Q: What communication protocols does the PCD237 A101 support?
A: The board communicates via ABB’s proprietary DDCS (Distributed Drive Control System) fiber-optic protocol, which is the standard interface between the ACS6000 drive modules and the AC800PEC controller. This is fully compatible with existing RDCO fiber-optic links and NDBU branching units already installed in your system.

Q: Will the board fit in the existing cabinet without physical modification?
A: Yes. The PCD237 A101 is designed to the same mechanical form factor as the ACS6000 controller slot. It is a drop-in replacement with no cabinet cutting, rail modification, or additional mounting hardware required.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, perform a standard ACS6000 commissioning sequence: verify 24 VDC auxiliary power, confirm DDCS fiber-optic link status on the AC800PEC controller, check for active fault codes on the drive panel, and run a no-load test before returning the drive to production. TOPNLMS can provide technical support documentation upon request.

Q: What if my existing ACS6000 drive is a discontinued model?
A: The ACS6000 platform remains in active service at many industrial sites globally, and ABB continues to support it with spare parts. The 3BHE028915R0101 PCD237 A101 is available as an OEM spare. If your drive model has been discontinued, TOPNLMS can advise on compatible board options based on your drive serial number and software version.
