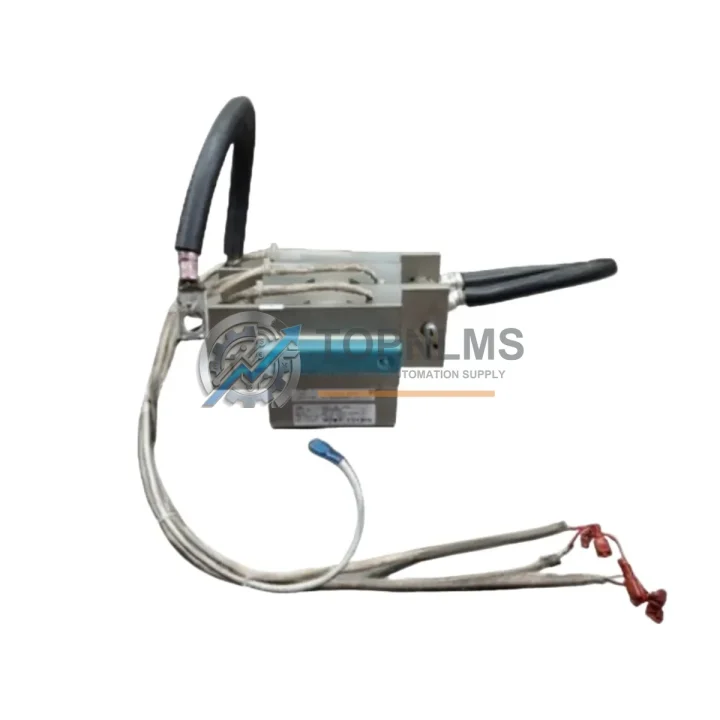

ABB 3BHE026955R0633 Ruggedized SCR Thyristor Module for Harsh Industrial Environments

The ABB 3BHE026955R0633 UNS4017A-E Va is a high-performance Silicon Controlled Rectifier (SCR) thyristor packet engineered for deployment within ABB’s UNITROL automatic voltage regulator and excitation control systems. Designed to operate reliably under the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — this module represents the backbone of generator excitation power conversion in critical infrastructure environments.

In power generation facilities, petrochemical plants, offshore platforms, and heavy metallurgical operations, the excitation system is the last line of defense for generator voltage stability. The 3BHE026955R0633 thyristor packet delivers precisely controlled rectification of AC field current into regulated DC output, maintaining generator terminal voltage within tight tolerances even as load conditions fluctuate rapidly. Its ruggedized construction ensures that thermal cycling, vibration from rotating machinery, and transient overvoltages do not compromise long-term operational integrity.

This SCR assembly is a direct-fit replacement component for ABB UNITROL 5000, UNITROL 6000, and compatible UNS4017A-E series excitation cubicles. When a thyristor packet degrades or fails in service, unplanned generator downtime can cascade into production losses measured in tens of thousands of dollars per hour. Maintaining a verified spare of the 3BHE026955R0633 on-site eliminates this risk and supports rapid mean-time-to-repair (MTTR) targets demanded by modern plant reliability programs.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3BHE026955R0633 thyristor packet does not operate in isolation — it is the power-stage heart of a broader excitation and generator protection ecosystem. Within a typical UNITROL excitation cubicle, this SCR assembly works in concert with the ABB UNS0881A-P pulse transformer board, which delivers precisely timed gate firing pulses to each thyristor element. Upstream, the ABB UNITROL 5000 AVR controller board (such as the UNS0776A) processes generator terminal voltage feedback and issues firing angle commands that the 3BHE026955R0633 executes in real time.

For field current measurement and protection, the excitation system relies on ABB UNS0882A current measurement modules and associated ABB UNS0883A protection relay boards, which monitor for overcurrent, field ground faults, and diode failure conditions. These protection modules communicate with the plant’s DCS or SCADA layer via ABB AC800M controller modules using PROFIBUS DP or Modbus RTU protocols, enabling remote monitoring of excitation status, field current magnitude, and alarm annunciation without requiring personnel to enter the generator hall.

In high-vibration environments such as gas turbine generator sets or large hydro units, the thyristor packet’s heatsink assembly must be periodically inspected alongside the ABB UNS0880A snubber and suppression circuit boards, which protect the SCR elements from voltage transients generated by transformer switching and load rejection events. Complementing these, ABB SACE Tmax XT series molded-case circuit breakers provide upstream overcurrent protection for the excitation transformer feeding the thyristor bridge, while ABB CM-series monitoring relays track supply voltage quality at the cubicle input terminals.

For facilities operating in classified hazardous areas — such as Zone 1 or Zone 2 gas-risk environments in petrochemical plants — the excitation cubicle housing the 3BHE026955R0633 is typically installed in a pressurized or purged enclosure meeting IEC 60079-2 requirements, with ABB EX-rated terminal blocks and cable glands ensuring the integrity of the hazardous area boundary. This complete system approach, from the SCR thyristor packet through to the field wiring terminations, ensures that generator excitation remains stable and safe even in the most challenging plant environments.

Application in Critical Infrastructure

The ABB 3BHE026955R0633 UNS4017A-E Va thyristor module sees its most demanding service in critical infrastructure sectors where generator availability is non-negotiable.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the excitation system controlled by this thyristor packet directly determines the generator’s reactive power output and voltage regulation capability. Grid code compliance — particularly reactive power capability requirements under fault ride-through conditions — depends on the excitation system responding within milliseconds. A degraded or failed thyristor packet can result in generator disconnection from the grid, triggering cascading stability events.

Oil & Gas: Offshore platforms and onshore processing facilities rely on captive power generation for all safety-critical systems, including emergency shutdown (ESD) systems, fire and gas detection, and process control. The 3BHE026955R0633 supports continuous, uninterrupted generator operation in environments characterized by salt-laden air, hydrocarbon vapors, and extreme temperature swings between day and night cycles.

Mining & Metallurgy: Large synchronous motors driving ball mills, crushers, and hoists in mining operations are often started and controlled via excitation systems architecturally similar to generator excitation. In electric arc furnace (EAF) steelmaking, the extreme harmonic distortion and rapid load cycling place exceptional demands on power electronics. The ruggedized construction of the ABB UNITROL thyristor packet ensures reliable operation even in the presence of severe voltage disturbances.

Water & Wastewater: Large pumping stations serving municipal water supply and wastewater treatment rely on synchronous motor drives where excitation control maintains power factor and reduces reactive power import charges. Continuous operation requirements — often 24/7/365 with minimal planned maintenance windows — make the availability of verified spare thyristor packets essential to plant reliability programs.
