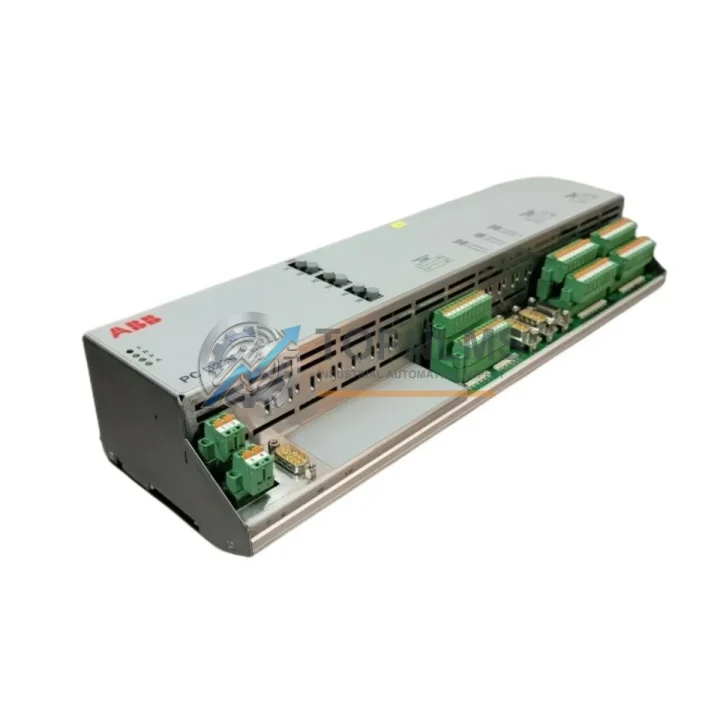

ABB 3BHE025541R0101 Ruggedized DDCS Fiber Communication Module

Product Overview

ABB 3BHE025541R0101 Ruggedized DDCS Fiber Communication Module: Industrial Resilience for Harsh Environments

The ABB 3BHE025541R0101 (PCD231 B101) is a high-integrity DDCS (Distributed Drive Control System) fiber optic communication module engineered for the ABB AC800PEC high-performance controller platform. Designed and manufactured in Germany to ABB’s exacting industrial standards, this module delivers deterministic, noise-immune fiber optic communication in the most demanding power electronics and drive control applications. Whether deployed in a steel mill’s rolling line, a petrochemical plant’s variable-speed drive network, or a utility-scale power conversion system, the PCD231 B101 maintains signal integrity and system uptime where copper-based communication would fail.

The DDCS fiber protocol eliminates ground loop interference and provides complete galvanic isolation between the AC800PEC controller and connected drive units, making the 3BHE025541R0101 the preferred communication backbone in environments characterized by high electromagnetic interference (EMI), high-voltage switching transients, and long cable runs across electrically noisy industrial floors. Its fiber optic physical layer is inherently immune to the EMI generated by large variable frequency drives (VFDs), high-current bus bars, and arc furnace operations — conditions that routinely corrupt copper-based fieldbus signals.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3BHE025541R0101 does not operate in isolation — it is the communication spine connecting the ABB AC800PEC controller to a network of intelligent drive and power electronics units. In a typical high-power drive system, the PCD231 B101 interfaces directly with ABB ACS880 or ACS6000 series variable frequency drives via the DDCS fiber ring, enabling real-time torque and speed reference transmission with microsecond-level determinism. This is critical in coordinated multi-drive applications such as rolling mill stands, where drive synchronization tolerances are measured in fractions of a millisecond.

Within the AC800PEC rack, the PCD231 B101 works alongside companion modules including the PPD113 processor module (3BHE023584R0101) and PCD232 or PCD235 I/O interface modules, forming a tightly integrated control node. The rack’s internal backplane distributes power and data, while the fiber module handles all external drive communication — a clean architectural separation that simplifies fault isolation and module-level replacement without disturbing the broader control system.

For power supply integrity within the control cabinet, the AC800PEC system typically relies on ABB PSTX or third-party 24 VDC DIN-rail power supplies with redundant feed capability. Stable, clean DC power is a prerequisite for reliable fiber communication timing; any ripple or dropout on the module supply rail can introduce DDCS frame errors that manifest as drive faults. Pairing the 3BHE025541R0101 with a high-quality, low-ripple industrial power supply is therefore a best practice in critical installations.

On the safety and protection layer, the AC800PEC platform integrates with ABB PROFISAFE-capable I/O modules and external safety relays to implement SIL-rated emergency stop and safe torque-off (STO) functions across the drive network. The fiber communication channel provided by the PCD231 B101 ensures that safety-critical status signals — drive ready, fault active, STO acknowledged — are transmitted without the risk of EMI-induced bit errors that could mask a genuine fault condition. In hazardous area installations, this optical isolation also eliminates the risk of ignition from electrical faults propagating along communication cables.

For system diagnostics and remote monitoring, the AC800PEC controller communicates upstream via ABB Industrial Ethernet or PROFIBUS DP interface modules, feeding real-time drive data to SCADA systems or ABB’s Ability™ Digital Powertrain platform. The PCD231 B101’s role in this architecture is foundational: without a healthy DDCS fiber link, the controller cannot read drive status, and the entire monitoring chain is blind to drive-level faults.

Application in Critical Infrastructure

The ABB 3BHE025541R0101 PCD231 B101 is deployed across the most demanding sectors of global industrial infrastructure, precisely because fiber optic DDCS communication is non-negotiable in environments where electrical noise, physical distance, and continuous operation converge.

In steel and metals processing, rolling mill main drives — often rated at several megawatts — generate enormous switching transients on every pulse. The PCD231 B101 maintains a clean, error-free DDCS link between the AC800PEC controller and each drive unit across the mill line, enabling coordinated speed and tension control that is impossible to achieve with noise-susceptible copper fieldbus. Unplanned communication faults in this environment translate directly to cobble events, strip breaks, and costly production losses.

In oil, gas, and petrochemical facilities, large compressor and pump drives operate continuously in environments with explosive atmospheres, high ambient temperatures, and aggressive chemical exposure. The fiber optic isolation provided by the 3BHE025541R0101 ensures that no electrical fault on the drive side can propagate back to the control room through the communication cable — a critical safety requirement in ATEX and IECEx classified zones.

In power generation and utilities, including hydro, thermal, and wind power plants, the AC800PEC with PCD231 B101 controls excitation systems, converter drives, and reactive power compensation equipment. Grid-connected applications demand communication latency and reliability that only a deterministic fiber protocol like DDCS can provide. Any communication interruption in these applications can trigger grid protection relays and cause unplanned generation outages.

In mining and mineral processing, conveyor drives, hoist systems, and grinding mill drives operate in high-dust, high-vibration environments with long cable runs between the surface control room and underground or pit-bottom drive cabinets. Fiber optic communication is the only practical solution for these distances and environments, and the PCD231 B101 is the module that makes it possible within the ABB AC800PEC ecosystem.

In water and wastewater treatment, large pump station drives and aeration blower drives require reliable, continuous communication for flow control and energy optimization. The 3BHE025541R0101 supports 24/7 operation in humid, chemically aggressive environments where copper communication infrastructure would require frequent maintenance and replacement.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every ABB 3BHE025541R0101 shipped by TOPNLMS carries a 12-month warranty from the date of shipment, covering all functional defects under normal operating conditions. If the module fails to perform to ABB’s published specifications within the warranty period, we will repair or replace it at no charge. Warranty claims are processed directly through TOPNLMS — contact [email protected] with your order reference and a description of the fault.

Q2: How is each module tested before shipment?
All modules undergo a multi-stage pre-shipment inspection: visual inspection for physical damage, component-level verification, and functional power-on testing where applicable. For the PCD231 B101, we verify fiber port integrity, module identification, and firmware version consistency with ABB’s published release history. Modules that do not pass inspection are quarantined and not offered for sale. A test report is available on request for critical or high-volume orders.

Q3: Is the 3BHE025541R0101 compatible with all AC800PEC firmware versions?
The PCD231 B101 is designed for the ABB AC800PEC platform and is compatible across the major firmware generations of that controller. However, ABB periodically releases firmware updates that may affect module behavior or introduce new features. We recommend verifying the firmware version of your existing AC800PEC system against ABB’s compatibility matrix before installation. Our technical team can assist with compatibility verification — contact us with your controller’s current firmware version and application type.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains stock of the ABB 3BHE025541R0101 and related AC800PEC platform modules to support both emergency replacement and planned maintenance programs. For facilities operating multiple AC800PEC systems, we recommend establishing a consignment or blanket order arrangement to ensure module availability without lead-time risk. We also support cross-referencing to identify functionally equivalent ABB modules where the exact part number is discontinued or on extended lead time from the OEM. Contact us to discuss a supply agreement tailored to your maintenance schedule.
