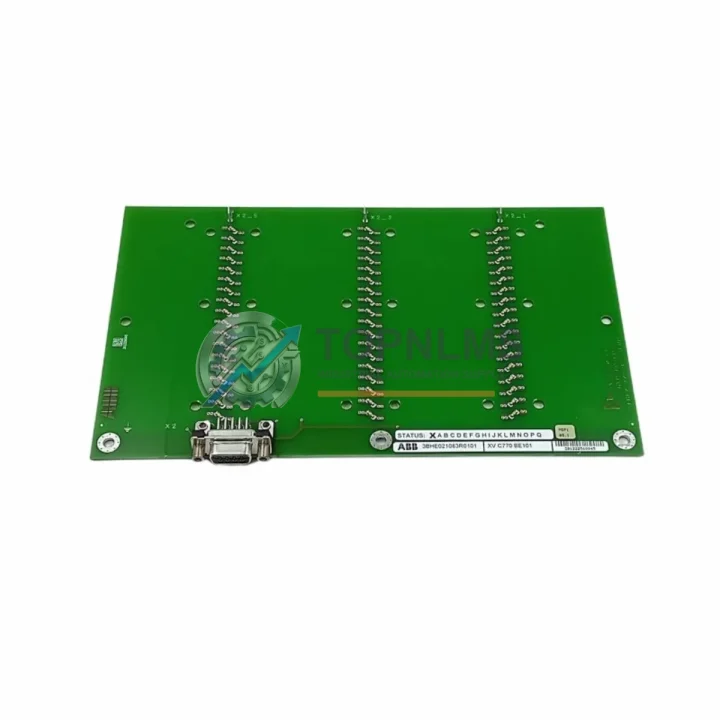

ABB 3BHE021083R0101 XVC770 BE101 Replacement Solution

Product Overview

ABB 3BHE021083R0101 XVC770 BE101 Replacement Solution: Seamless Transition from Legacy Excitation Systems

The ABB 3BHE021083R0101 XVC770 BE101 is a dedicated excitation control board engineered for generator excitation regulation within ABB’s UNITROL excitation platform. As legacy ABB excitation systems approach end-of-life or encounter discontinued spare part availability, plant engineers and procurement teams face mounting pressure to source verified replacement boards that maintain full compatibility with existing wiring harnesses, field bus configurations, and generator protection relay logic.

This XVC770 BE101 board serves as a direct functional replacement for aging or failed excitation control modules in ABB UNITROL 5000, UNITROL 6000, and related generator excitation controller families. Its onboard signal conditioning, AVR (Automatic Voltage Regulator) interface circuitry, and analog I/O architecture are designed to integrate without requiring re-engineering of the existing control cabinet layout or generator protection scheme.

For facilities running ABB AC800M controllers alongside UNITROL excitation systems, the XVC770 BE101 fits naturally into the broader ABB automation ecosystem. Engineers migrating from older UNITROL 1000 or UNITROL F platforms will find that the XVC770 series maintains backward-compatible communication signaling with ABB’s standard excitation bus, significantly reducing the scope of software re-parameterization during commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful excitation system modernization rarely involves a single board replacement in isolation. When upgrading from a legacy UNITROL platform to a current-generation XVC770 BE101-based configuration, the surrounding system components must be evaluated for compatibility and, where necessary, updated in parallel.

In most generator excitation retrofit projects, the ABB XVC770 BE101 is deployed alongside the ABB SDCS-CON-4 converter control board, which manages the thyristor firing sequence for the excitation bridge rectifier. Engineers should verify that the SDCS-CON-4 firmware revision is aligned with the XVC770 communication protocol to avoid AVR instability during generator synchronization. Similarly, the ABB SDCS-PIN-48 power interface board, which handles the analog measurement inputs from the generator’s current transformers and voltage transformers, must be confirmed compatible with the XVC770’s signal conditioning expectations.

For facilities where the existing excitation cabinet also houses an ABB UNITROL 6080 automatic voltage regulator module, the XVC770 BE101 replacement can be integrated without replacing the AVR module itself, provided the inter-board communication wiring is intact and the terminal assignments match the XVC770 pinout documentation. In cases where the ABB 3BHE022707R0101 or similar XVC770-series companion boards are already installed in the same rack, the BE101 board replacement is straightforward and does not require re-flashing the AVR parameter set.

Communication integrity is a critical consideration during excitation system upgrades. If the plant’s distributed control system uses ABB AC800M controllers communicating with the excitation system via PROFIBUS DP or Modbus RTU, the XVC770 BE101’s onboard communication interface supports these protocols natively, eliminating the need for protocol converters or gateway devices. Plants using older ABB Advant OCS or ABB Master DCS platforms may require a communication gateway module to bridge legacy fieldbus signals to the XVC770’s interface — a common requirement when the DCS itself is not being upgraded as part of the same project scope.

Terminal modules and signal isolators are frequently overlooked during excitation board replacements. Where the existing wiring uses ABB NAIO or third-party signal isolation barriers between the generator protection relay and the excitation control board, these should be tested for signal integrity after the XVC770 BE101 is installed. In high-noise generator environments, adding ABB AI810 analog input modules or equivalent signal conditioning hardware upstream of the excitation board can significantly improve AVR stability and reduce nuisance trips during load transients.

For projects where the generator control panel also includes an ABB Panel 800 or CP600 series HMI, the XVC770 BE101 replacement does not require HMI reconfiguration, as the excitation system’s status variables are typically mapped through the AC800M controller layer rather than directly from the excitation board. However, engineers should verify that the HMI’s excitation status screens correctly reflect the new board’s diagnostic outputs after commissioning.

Retrofit Guidance FAQ

Q: Does replacing the XVC770 BE101 board require rewiring the excitation cabinet?
A: In the majority of installations, no rewiring is required. The XVC770 BE101 uses the same terminal block layout as its predecessors in the UNITROL excitation family. Engineers should verify terminal assignments against the site-specific wiring diagram before installation, particularly if the existing cabinet was modified from the original ABB factory configuration.

Q: Will the existing AVR parameter set be retained after the board swap?
A: AVR parameters are typically stored in the UNITROL controller’s non-volatile memory, not on the XVC770 BE101 board itself. In most cases, the existing parameter set is preserved after the board replacement. However, it is best practice to export and back up the full parameter set using ABB’s commissioning software (e.g., UNITROL Tool or Drive Composer) before performing the swap, and to verify all setpoints after the new board is powered up.

Q: Is the XVC770 BE101 compatible with both brushless and static excitation systems?
A: The XVC770 BE101 is designed for use in static excitation systems where the excitation current is supplied through a thyristor bridge rectifier. Compatibility with brushless excitation configurations depends on the specific generator and excitation system architecture — consult the site’s excitation system documentation or contact our technical team for application-specific guidance.

Q: What communication protocols does the XVC770 BE101 support?
A: The XVC770 BE101 supports ABB’s proprietary excitation bus protocol for inter-board communication within the UNITROL platform. For integration with plant-level DCS or SCADA systems, communication is typically handled through the UNITROL controller’s fieldbus interface (PROFIBUS DP, Modbus RTU, or IEC 61850, depending on the controller variant), not directly through the XVC770 BE101 board.

Q: How much physical space does the XVC770 BE101 require in the excitation cabinet?
A: The XVC770 BE101 is a standard-format excitation control board designed to fit the existing UNITROL excitation cabinet rack. No additional panel space or cabinet modification is required for a like-for-like replacement. If the replacement is part of a broader excitation system upgrade that adds new modules (e.g., redundant AVR boards or additional I/O), cabinet space planning should be conducted before ordering.

Q: What is the lead time and shipping arrangement?
A: Units are in stock and ready to ship from Xiamen, China. Standard international express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited shipping options are available for urgent plant shutdowns or unplanned outages.

Warranty Assurance

Every ABB 3BHE021083R0101 XVC770 BE101 excitation control board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm board integrity, signal output accuracy, and communication interface operability. This pre-shipment inspection process is designed to minimize the risk of DOA (Dead on Arrival) units reaching the customer site — a critical concern for excitation system replacements where unplanned downtime carries significant operational and financial consequences.

In the event of a warranty claim, TOPNLMS provides a structured replacement support process: the defective unit is returned for inspection, and a verified replacement board is dispatched within the agreed response window. Our technical team is available to assist with installation questions, parameter verification, and commissioning support via email and phone throughout the warranty period.

For procurement teams managing planned maintenance shutdowns or building strategic spare parts inventory, we offer multi-unit pricing and can provide documentation packages (test reports, certificates of conformity, and packing lists) to support your internal procurement and quality assurance processes.

All units are carefully packaged in anti-static ESD-safe materials with foam cushioning to prevent transit damage. Tracking information is provided at the time of shipment, and our team monitors delivery progress for all international orders.
