ABB 3BHE014070R0101 Original Industrial Spare PPC905 Compatible: System Stability & Excitation Control Assurance

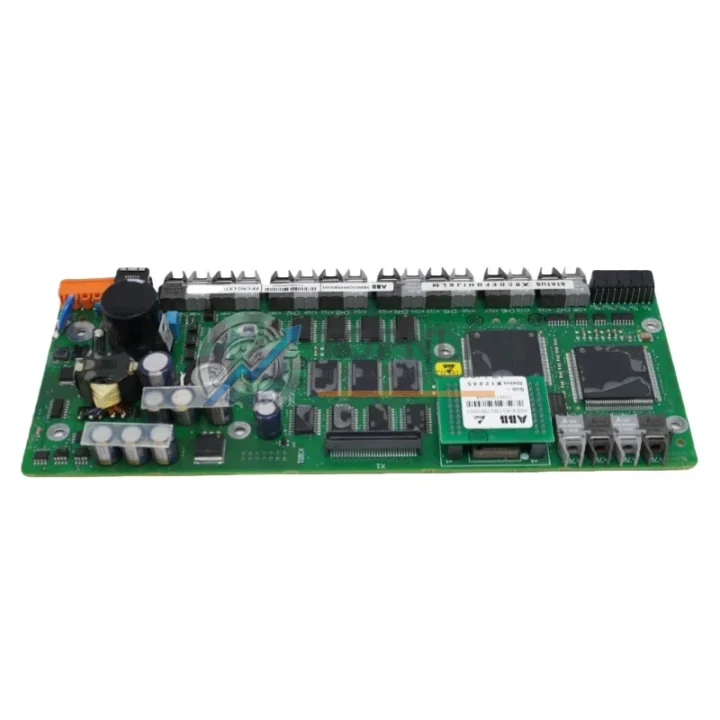

The ABB 3BHE014070R0101 (PPC905 AE101) is an original excitation control board engineered for the AC800PEC high-performance controller platform — ABB’s dedicated solution for power generation, drive control, and large-scale industrial automation. In power plant environments, steel mills, petrochemical facilities, and heavy manufacturing lines, the excitation control board is the nerve center of generator field regulation. A failed or degraded 3BHE014070R0101 directly threatens generator stability, voltage regulation accuracy, and ultimately, continuous production uptime.

Sourced as original ABB hardware manufactured in Germany, this board undergoes full functional verification prior to dispatch. Each unit is tested against ABB factory parameters, packaged in anti-static ESD shielding, and ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Whether you are executing an emergency replacement during an unplanned outage or building a strategic spare inventory ahead of a scheduled overhaul, the 3BHE014070R0101 is available for immediate dispatch from TOPNLMS.

Critical Technical Specs

Preventive Maintenance Strategy

In AC800PEC-based control systems, the excitation control board does not operate in isolation. A disciplined preventive maintenance program requires engineers to inspect and, where necessary, pre-stock a coordinated set of components that share the same control cabinet, power bus, and communication backbone. When scheduling a maintenance window around the 3BHE014070R0101, experienced maintenance teams simultaneously audit the following associated components to prevent secondary failures from undermining the repair.

The ABB PPC902 / 3BHE004573R0001 processor board is the computational core of the AC800PEC chassis. If the excitation board is showing signs of instability — erratic field current readings, intermittent fault codes, or communication dropouts — the processor board should be inspected in parallel, as firmware corruption or hardware degradation on the PPC902 can manifest as apparent excitation faults. Similarly, the ABB UFC760 / 3BHE004573R0002 interface board governs the communication layer between the excitation controller and the plant DCS; a worn UFC760 can cause the 3BHE014070R0101 to report false alarms even when the excitation board itself is healthy.

Power supply integrity is equally critical. The ABB SDCS-POW-1 / 3ADT220090R0001 DC power supply module feeds the control electronics within the excitation cabinet. Capacitor aging and ripple voltage increases in this module are a leading cause of unexplained excitation board resets. Replacing or bench-testing the SDCS-POW-1 during the same maintenance cycle eliminates a common root cause before it triggers the next unplanned outage. Alongside the power supply, the ABB SDCS-IOB-3 / 3ADT220090R0002 I/O board handles analog and digital signal conditioning for field current and voltage feedback loops — worn signal paths on this board introduce measurement noise that degrades excitation regulation quality over time.

At the field wiring level, maintenance engineers should inspect the ABB NDIO-01 digital I/O extension module and associated terminal block assemblies for signs of thermal stress, loose connections, or insulation breakdown. High-resistance connections at terminal blocks are a silent contributor to excitation instability and are frequently overlooked during fault investigations. For facilities running fiber-optic communication between the AC800PEC and remote I/O panels, the ABB NIOEC-01 / NDCO-01 optical communication modules should be included in the inspection checklist — fiber connector contamination and bend-radius violations cause intermittent communication errors that are difficult to distinguish from excitation board faults without systematic elimination.

Finally, for sites operating older AC800PEC installations approaching end-of-support lifecycle, proactive procurement of the ABB PPC905 AE101 spare set — including the 3BHE014070R0101 excitation board, a backup PPC902 processor, and a spare UFC760 interface board — represents the most cost-effective insurance against extended downtime. A single unplanned outage in a power generation or heavy process environment typically costs multiples of the combined spare parts investment.

Strategic Replacement Solutions

The 3BHE014070R0101 PPC905 AE101 is a direct OEM replacement for all existing AC800PEC excitation control installations using the same part number. Unlike third-party remanufactured alternatives, original ABB hardware retains full compatibility with ABB’s proprietary excitation control firmware, parameter sets, and diagnostic tools including ABB Drive Composer and Control Builder M. This eliminates the risk of parameter mapping errors, undocumented hardware revisions, or firmware incompatibilities that are common failure modes when substituting non-OEM boards in safety-critical excitation applications.

For facilities managing aging AC800PEC systems where ABB has announced end-of-life for certain sub-assemblies, stocking the 3BHE014070R0101 as a long-term spare extends the operational life of the existing control architecture without requiring a full system migration. This approach preserves the capital investment in the existing control cabinet, avoids the engineering cost of re-commissioning, and maintains the institutional knowledge embedded in the existing parameter configuration. TOPNLMS maintains stock of this board specifically to support customers executing this lifecycle extension strategy.

Replacement is straightforward for qualified electrical engineers: power down the excitation cabinet following ABB’s lockout/tagout procedure, discharge the DC bus, remove the existing board from the AC800PEC chassis, install the 3BHE014070R0101, restore power, and verify excitation parameters against the site’s baseline configuration record. In most installations, no firmware re-flashing is required when replacing like-for-like. Full commissioning support documentation is available from ABB’s technical library.
