ABB 3BHE014023R0101 UFC789AE101 Replacement for ACS6000

Product Overview

ABB 3BHE014023R0101 UFC789AE101 Replacement for ACS6000 — Smooth Migration & Legacy System Upgrade

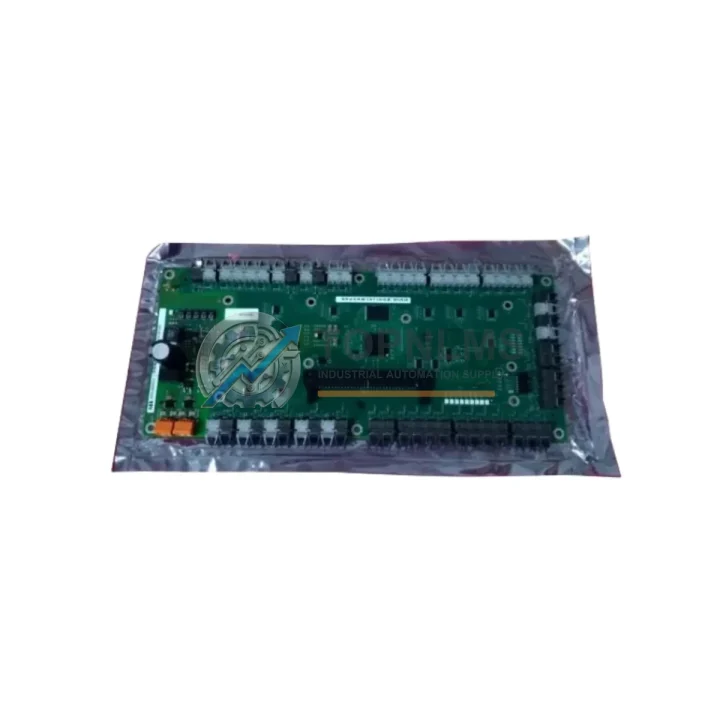

The ABB 3BHE014023R0101 UFC789AE101 FSCD (Fault Signal & Control Distribution) Board is a critical control module within the ABB ACS6000 Medium Voltage Drive platform. As ABB progressively phases out legacy ACS6000 drive components, many industrial facilities operating high-power MV drive systems face the challenge of sourcing reliable, specification-matched replacements to avoid unplanned downtime. TOPNLMS maintains verified stock of the 3BHE014023R0101 UFC789AE101 to support your retrofit, upgrade, or emergency replacement requirements.

This FSCD board is engineered for the ACS6000 series, ABB’s flagship medium-voltage variable speed drive platform used extensively in oil & gas, mining, marine propulsion, power generation, and heavy process industries. The module manages fault signal distribution and control logic between the drive’s main inverter section and the supervisory control layer, making it indispensable for safe and reliable drive operation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS6000 drive modernization rarely involves a single board swap. In practice, engineers migrating from aging or discontinued ACS6000 configurations typically address several interconnected components in the same maintenance window to maximize system reliability and minimize future downtime risk.

The UFC789AE101 FSCD board works in close coordination with the ABB UFC760AE01 (3BHE004573R0001) main control board, which handles the primary drive control logic and parameter management. When the FSCD board is replaced, it is best practice to verify the UFC760 firmware version and parameter backup integrity simultaneously. Similarly, the ABB UFC718AE01 gate driver interface board interfaces directly with the IGCT power semiconductors and should be inspected for fault history that may have contributed to FSCD failures.

For facilities upgrading the full control section, the ABB SDCS-CON-4 (3ADT309600R1) and associated SDCS-PIN-48 power interface board are commonly addressed in parallel retrofit projects on adjacent DC drive systems sharing the same control room infrastructure. Fiber-optic communication links between the ACS6000 control cubicle and remote I/O panels rely on ABB NDIO-01 digital I/O extension modules, which should be tested for signal integrity after any FSCD replacement to confirm fault routing is operating correctly end-to-end.

In installations where the ACS6000 communicates upstream to a DCS or SCADA system via PROFIBUS-DP or Modbus RTU, the ABB NPBA-12 PROFIBUS adapter module or NMBА-01 Modbus adapter should be verified for correct configuration after the board swap, as FSCD-related fault codes may have triggered communication parameter resets in some firmware versions. Power supply integrity to the control section is equally important — the ABB PSU-A (3AUA0000001527) 24 VDC auxiliary power supply unit should be load-tested before commissioning the replacement FSCD board to rule out supply-side causes of the original fault.

For sites requiring HMI-level visibility into the upgraded drive, the ABB CP600 series operator panel provides a compatible touchscreen interface that can be integrated with the ACS6000 control architecture without additional protocol converters. Finally, where control cabinet space is being reorganized during the retrofit, ABB S800 I/O modules on the AC800M controller platform are frequently co-located in the same switchgear room and benefit from simultaneous inspection and firmware alignment.

Retrofit Guidance FAQ

Q: Does replacing the 3BHE014023R0101 UFC789AE101 require re-entering drive parameters?
A: In most ACS6000 installations, FSCD board replacement does not require full parameter re-entry. Drive parameters are stored in the UFC760 main control board’s non-volatile memory. However, it is strongly recommended to perform a full parameter backup via the ABB DriveWindow or DriveWindow Light software before any board swap, and to verify parameter integrity after installation.

Q: Is the wiring harness compatible with the replacement board?
A: Yes. The 3BHE014023R0101 UFC789AE101 uses the same backplane connector and fiber-optic interface as the original ACS6000 FSCD board. No wiring modifications or adapter cables are required for a direct replacement.

Q: What communication protocols does the ACS6000 FSCD board support?
A: The ACS6000 control architecture uses ABB’s proprietary DDCS (Distributed Drive Control System) protocol over fiber-optic links for internal board-to-board communication. External fieldbus communication (PROFIBUS, Modbus, DeviceNet) is handled by separate adapter modules and is not affected by FSCD board replacement.

Q: Will the replacement board fit in the existing control cubicle without mechanical modification?
A: Yes. The UFC789AE101 FSCD board maintains the identical form factor and card slot dimensions as the original. No mechanical adaptation, bracket modification, or cubicle re-layout is required.

Q: How should the system be tested after installation?
A: After installing the replacement FSCD board, perform the following commissioning steps: (1) Power up the control section only and verify 24 VDC supply to the board; (2) Check for active fault codes via the HMI or DriveWindow; (3) Verify fiber-optic link status between the FSCD and UFC760 boards; (4) Perform a no-load test run to confirm fault signal routing is operational; (5) Gradually restore load and monitor drive diagnostics for 30 minutes before returning to full production.

Q: Can this board be used as a long-term spare for ACS6000 drives at multiple sites?
A: Yes. The 3BHE014023R0101 UFC789AE101 is a universal FSCD board for the ACS6000 platform and is suitable for use as a strategic spare across multiple ACS6000 installations. TOPNLMS recommends maintaining at least one spare per site for critical drive applications.

Warranty Assurance

Every ABB 3BHE014023R0101 UFC789AE101 FSCD Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual inspection, component-level verification, and functional testing where applicable to ensure the board meets ABB’s original specification before dispatch.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team with your order reference and a description of the fault, and we will arrange priority dispatch of a replacement unit. Our average response time for warranty claims is within 24 business hours. We maintain buffer stock specifically allocated to warranty replacements to ensure continuity of supply for our customers.

All units are shipped with appropriate ESD-protective packaging, clearly labeled with part number and serial reference, and accompanied by a test report on request. Express shipping options (DHL, FedEx, UPS) are available for urgent replacement requirements, with same-day dispatch available for orders confirmed before 14:00 CST.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformity, packing list, and commercial invoice aligned with your import requirements. We support customers in China, Southeast Asia, the Middle East, Europe, and the Americas with competitive lead times and transparent pricing.
